Terminal Removal Procedure
1.2 Terminals

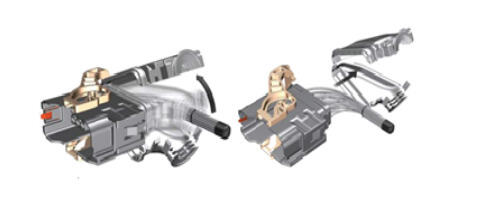

Use a small screwdriver to press down on the locking tabs (1) on the wire cover, to release the cover.
Spread the cover open and lift it away from the connector to remove it.

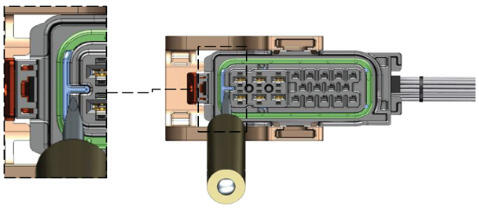

Insert a small flathead screwdriver into the front of the connector into TPA.
With the tip of the screwdriver in the tab of the TPA, gently rotate the tool to release the lock.
Identify female terminal (1), flex lock (2), and removal window (3).

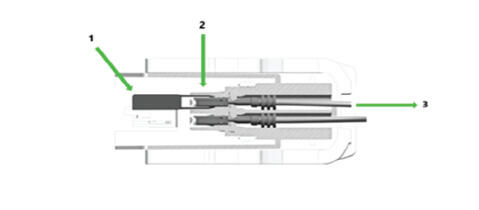

Insert the terminal removal tool J-38125-12A into the terminal cavity (1), deflect the terminal lock (2), while the terminal lock deflected, gently pull on the wire to remove the terminal from the connector (3).
2.8 Terminals
Use a small screwdriver to press down on the locking tabs (1) on the wire cover, to release the cover.
Spread the cover open and lift it away from the connector to remove it.
Insert a small flathead screwdriver into the front of the connector into TPA.
With the tip of the screwdriver in the tab of the TPA, gently rotate the tool to release the lock.
Identify female terminal (1), flex lock (2), and removal window (3).
Insert the terminal removal tool J-38125-36 into the terminal cavity (1), deflect the terminal lock (2), while the terminal lock deflected, gently pull on the wire to remove the terminal from the connector (3).
