Connector Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

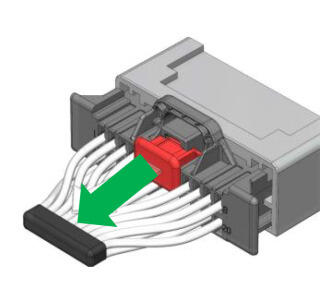

  1. GM6058062Courtesy of GENERAL MOTORS COMPANY

    Slide the CPA is in the released position as shown.

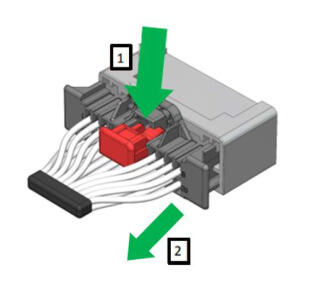

  2. GM6058063Courtesy of GENERAL MOTORS COMPANY

    Press down on the tab (1) and gently pull away the mated component (2).
