Connector Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Disengage the CPA by sliding it away from the cam lever to the released position.
Press down on the locking tab and rotate the cam lever to disengage the connector from the component.
Fully remove the connector from the header
- NOTE:

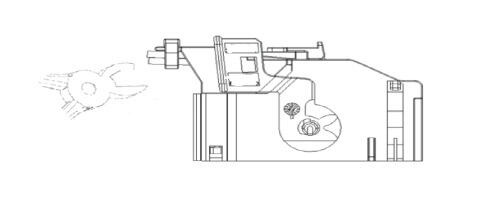

To prevent damaging the wires, cut the wire tie at the plastic retainer tab on the wire cover.
Remove the wire tie with wire cutters, being careful not to damage any wires or insulation.
