Terminal Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Remove any tape or wire tires from the wire cover
- Press and hold the front of the wire cover (1) and lift the front of it until it clears the cam lever (2).
Rotate the wire cover (1) so that the locking tabs (3) move out of the connector slots (4) until the wire cover is free.

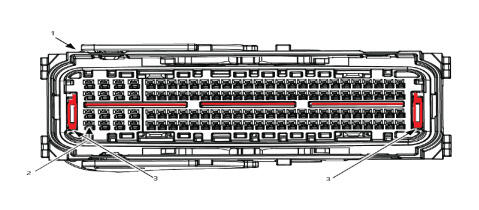

- Move the TPA (3) to the released position from the mating face of the connector (1) with terminal cavity position 1 (3) in the front bottom left, insert a small screwdriver into the top TPA slots on both sides, and move the TPA downwards until it stops, an audible click will be heard or felt from each side.

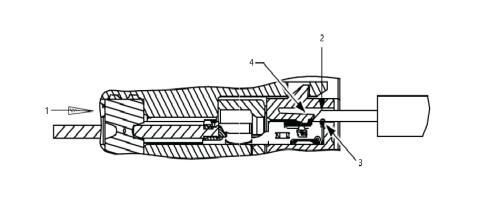

Push the wire of the terminal to be removed towards the connector (1) so there is more clearance between the terminal locking tab (4) and the terminal (3).
- Insert the tip of the terminal removal tool (2) J-38125-215A into the circuit cavity between the top of the terminal (3) and the circuit cavity latch (4).

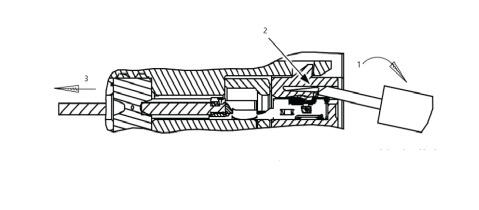

Gently push and rotate (1) the tool toward the terminal tab (2) to release the terminal locking tab, Pull the wire (3) out of the connector.
- Remove terminal from connector body, it should take very little effort to remove the terminal from the connector housing. If excessive effort is required, verify that the terminal locking tab is fully released refer to step 7 above.
NOTE:
The TPA is in the released position when the red TPA is visible in the center slots from the mating face of the connector as shown in the figure above. This verifies the terminal locking latch can be released to remove the terminal.
NOTE:
The terminal removal tool J-38125-215A is utilized for the 0.64 mm and 1.2 mm terminals.
