Connector Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

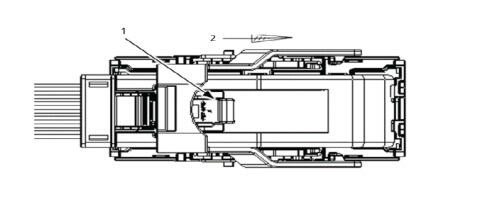

  1. GM5655197Courtesy of GENERAL MOTORS COMPANY

    Slide the CPA (1) away from the cam lever until it stops (2).

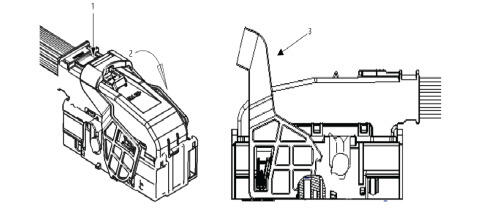

  2. GM5655202Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The connector will lift away from the mating component as the lever is being moved.

    Press the locking tab (1) to release the cam lever, then rotate the cam lever (2) until it stops.

  3. Remove the connector from the mating component.
