Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Windshield Washer Solvent Container Filler Tube Bracket Bolt (1) - Remove
- While twisting, pull inboard on the windshield washer solvent container filler tube (2) to remove it from the windshield washer solvent container grommet.

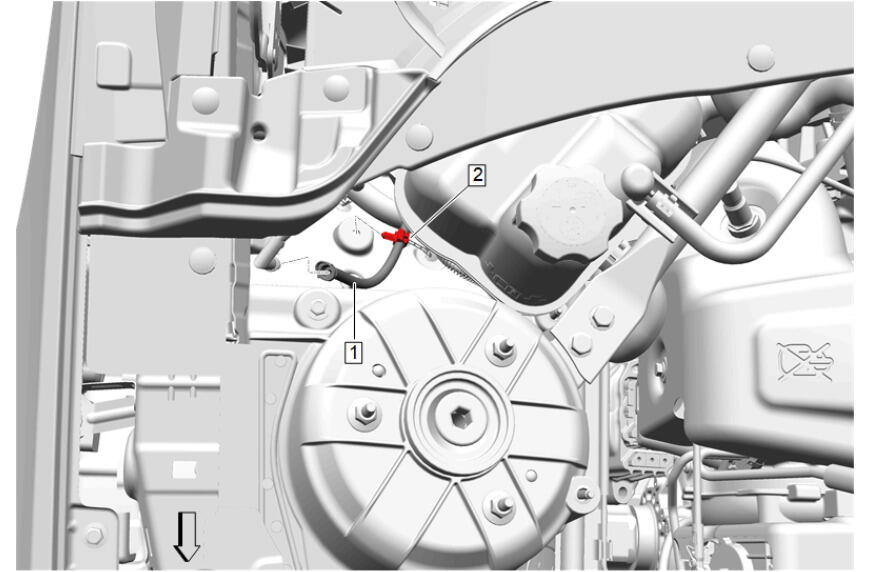

Windshield Washer Pump Hose (1) @ Windshield Washer Nozzle Hose - Disconnect
- With an appropriate tool, remove the windshield washer pump hose retainer (2).
- Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation

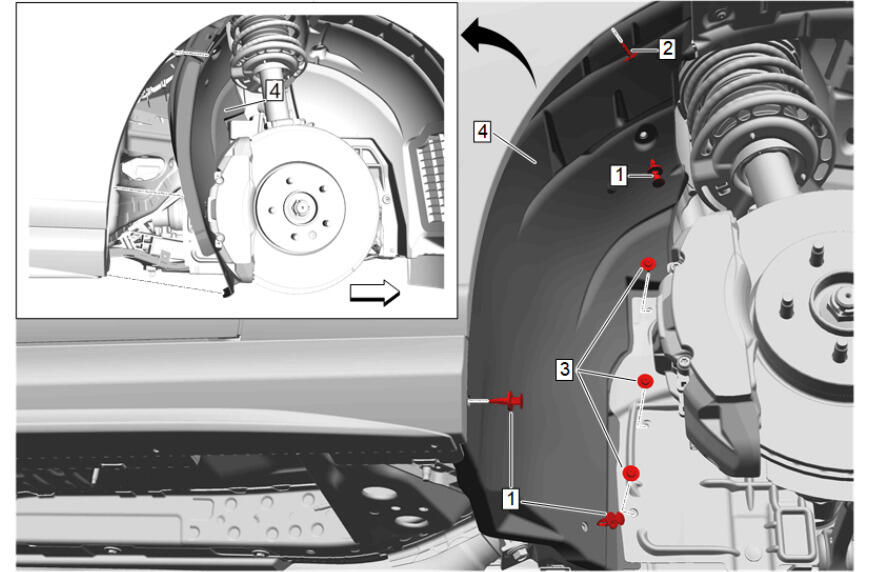

Front Wheelhouse Liner Retainer (1) - Remove [3x]
- Front Wheelhouse Liner Bolt (2) - Remove
- Engine Front Splash Shield Bolt (3) - Remove [3x]
- Reposition the rear section of the right front wheelhouse liner (4) to gain access to the body side air outlet seal.

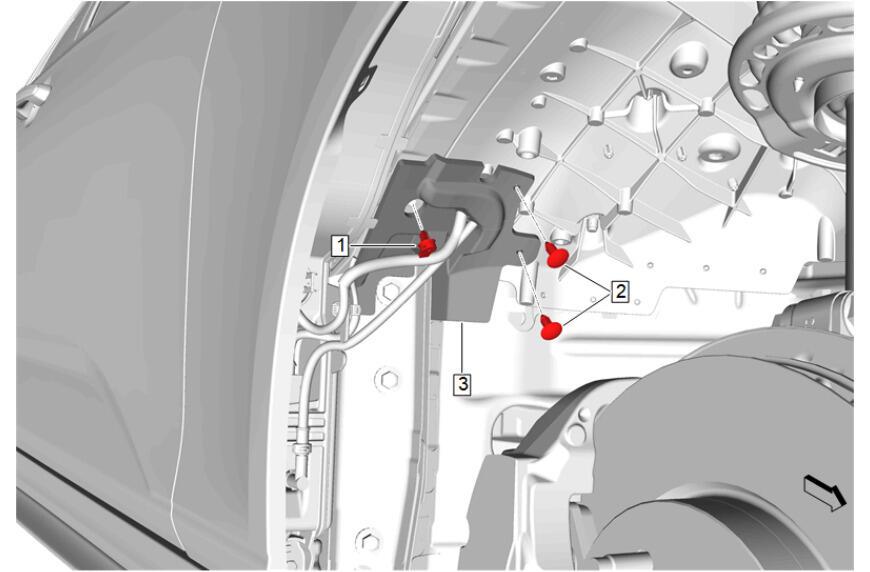

Remove the windshield washer solvent container wiring harness retainer (1).
- Remove the 2 body side air outlet seal retainers (2).
- Slide the windshield washer pump hose and windshield washer solvent container wiring harness through the slit in the body side air outlet seal to remove.
- Body Side Air Outlet Seal (3) - Remove
- Place a clean suitable drain pan under the windshield washer solvent container area to recover the windshield washer solvent when the windshield washer pump hose is disconnected.

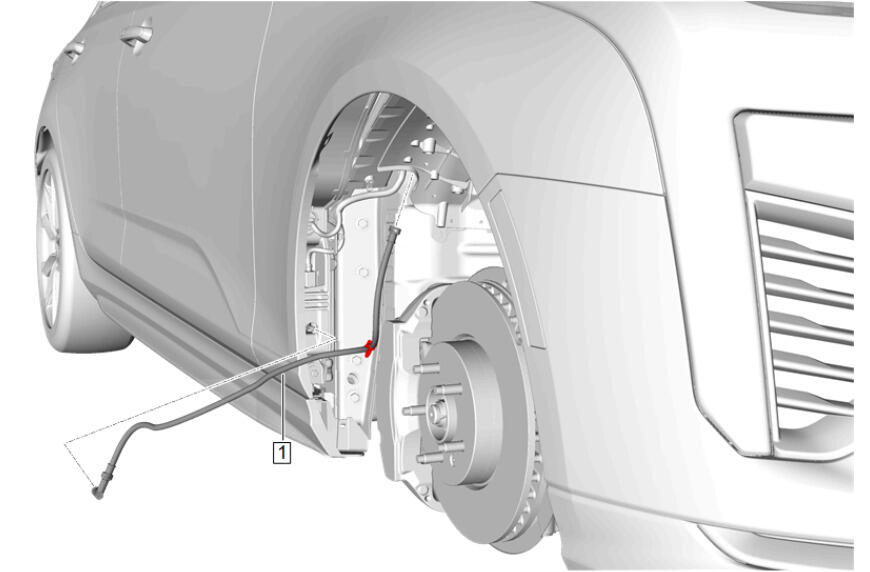

Windshield Washer Pump Hose (1) @ Windshield Washer Pump - Disconnect
- Windshield Washer Pump Hose (1) - Remove
