Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Left side shown, right side similar.
Windshield Wiper Arm- Left Side and Right Side (3) - Remove [2x]
- Using the appropriate trim tool, remove the windshield wiper arm finish caps (1) from the windshield wiper arms (3).
- Windshield Wiper Arm Nut- Left Side and Right Side (2) - Remove [2x]
- Grasp the outer end of the windshield wiper arms (3) and gently rock the arm back and forth to remove it from the windshield wiper transmission pivot shaft.
- NOTE:
Left side shown, right side similar.
Air Inlet Grille Panel Extension- Left Side and Right Side (1) - Remove [2x]
- Apply two layers of masking tape around the top edge of the service part to prevent paint damage.
- Using a suitable plastic trim tool, carefully release the air inlet grille panel extension clips.
- Remove the air inlet grille panel extensions (1) from the air inlet grille panel and upper front fender.
Hood Rear Outer Air Inlet Seal- Left Side and Right Side (2) - Remove [2x]
- Hood Rear Outer Air Inlet Seal Retainer - Left Side and Right Side (1) - Remove [4x]
- Hood Rear Outer Air Inlet Seal- Left Side and Right Side (2) - Remove [2x]
Air Inlet Grille Panel (2) - Remove
- Air Inlet Grille Panel Retainer (1) - Remove [6x]
- Disconnect the windshield washer nozzle hose from the windshield washer pump hose.
- Lift the front edge of the air inlet grille panel (2) and slide the panel forward from both hood hinges to remove.

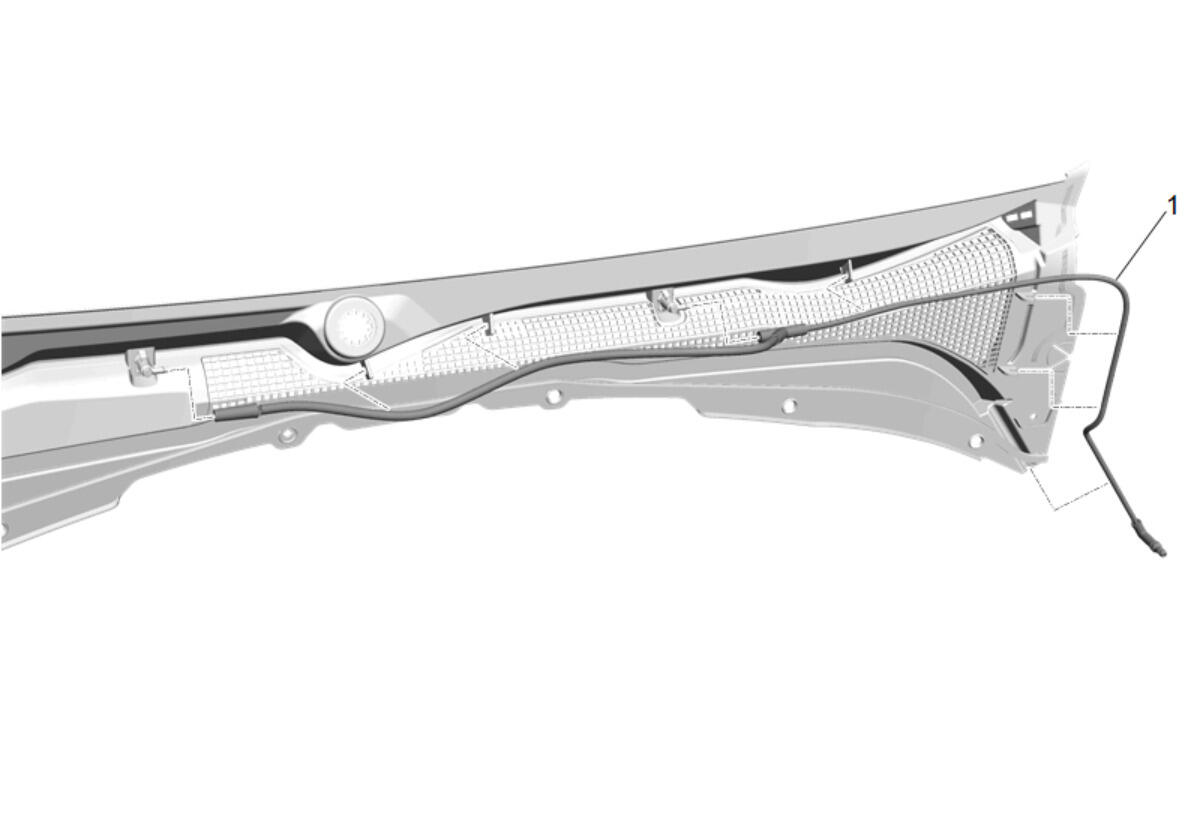

Disconnect the windshield washer nozzle hose (1) from both windshield washer nozzles.
- Release the windshield washer nozzle hose (1) from the air inlet grille panel retainers.
- Slide the windshield washer nozzle hose (1) between the air inlet grille panel and the foam seal to remove.
