Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

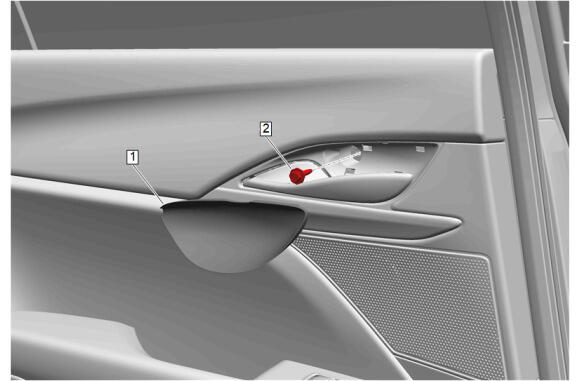

Rear Side Door Inside Handle Bolt Cap (1) - Remove
- Rear Side Door Inside Handle Bolt (2) - Remove

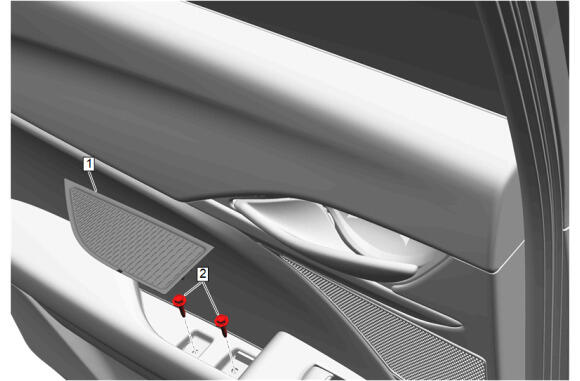

Rear Side Door Armrest Pull Cup Bolt Cap (1) - Remove
- Rear Side Door Armrest Pull Cup Bolt (2) - Remove [2x]
- NOTE:
The rear side door trim (3) has 8 integral retainers (1) and 4 belt line clips (2).
Using an appropriate tool, start from the rear bottom corner and pull the rear side door trim (3) from the sheet metal towards you to disengage perimeter retainers (1).
- When the rear side door trim (3) is sufficiently loosened, place an appropriate tool at the rear portion of the door trim to disengage the remaining retainers (1).
- Unhook the rear side door trim (3) from the belt line, pulling the door trim upwards using both hands to disengage the metal belt line clips from the top of the door.
- Disconnect the door lock retainer cable from the rear side door trim (3) and the inside handle.
- Disconnect the electrical connectors.
- Rear Side Door Trim (3) - Remove
- Place the rear side door trim (3) on a clean flat surface.
- Remove the rear side door window inner sealing strip and the metal belt line clips from the door trim panel.
