Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Use a flat bladed plastic trim tool.

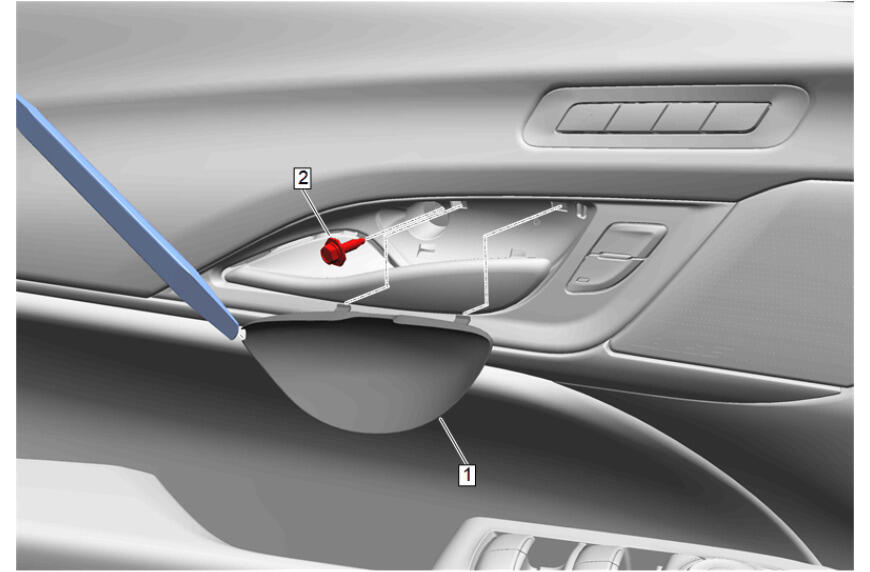

Front Side Door Inside Handle Bolt Finish Cap (1) - Remove
- Front Side Door Inside Handle Bolt (2) - Remove

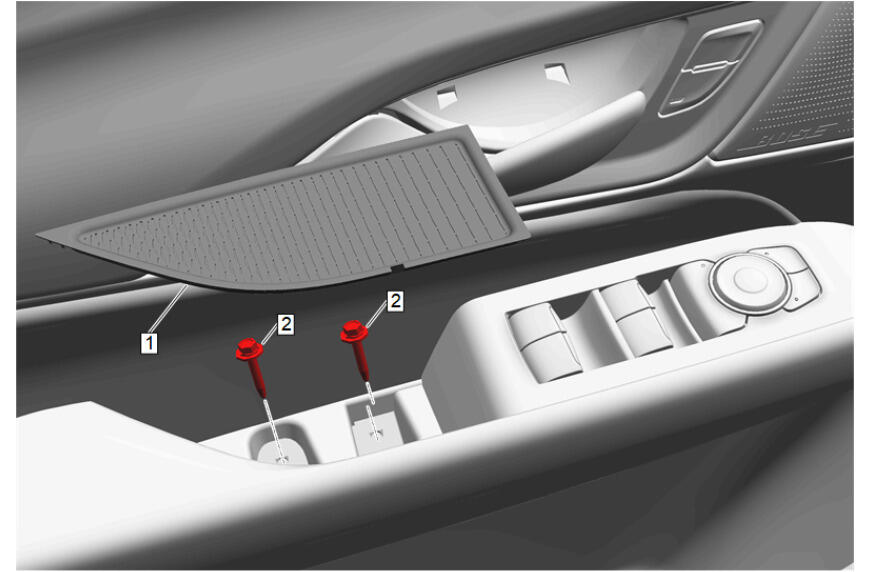

Front Side Door Pull Cup Liner (1) - Remove
- Front Side Door Armrest Pull Cup Bolt (2) - Remove [2x]
- NOTE:
The front side door trim (4) has 9 integral retainers (2) and 1 clip (1).
Using an appropriate tool, start from the rear bottom corner and pull the front side door trim (4) from the sheet metal towards you to disengage perimeter retainers (2).
- When the front side door trim (4) is sufficiently loosened, place an appropriate tool at the rear portion of the door trim to disengage the remaining retainers (2) and clip (1).
- Unhook the front side door trim (4) from the belt line, pulling the door trim upwards using both hands to disengage the belt line clips (3) on top of door.
- Disconnect the door lock retainer cable from the front side door trim (4) and the inside handle.
- Disconnect the electrical connectors.
- Front Side Door Trim (4) - Remove
- Place the front side door trim (4) on a clean flat surface.
- Remove the front side door window inner sealing strip and the metal belt line clips from the door trim panel.
