Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Remove the 4 rear wheelhouse liner bolts (1) from the left and right rear wheelhouse liners to gain access to the rear fascia bolt.
Remove the 4 left and right side rear bumper fascia screws (1).
Remove the left and right side rear bumper fascia bolts (1).
Remove the left and right side rear fascia bolt (1).
Rear Bumper Fascia Screw (1) - Remove [3x]
Carefully push a small nylon wedge between the fascia (1) and the left and right fascia guides.
- Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time, while pulling on the fascia (1) to gradually remove the fascia.
- Disconnect all electrical connectors.
Release the 3 left and right side rear bumper fascia retainer clips (1) from the rear bumper fascia reinforcement.
Rear Bumper Fascia (1) - Remove

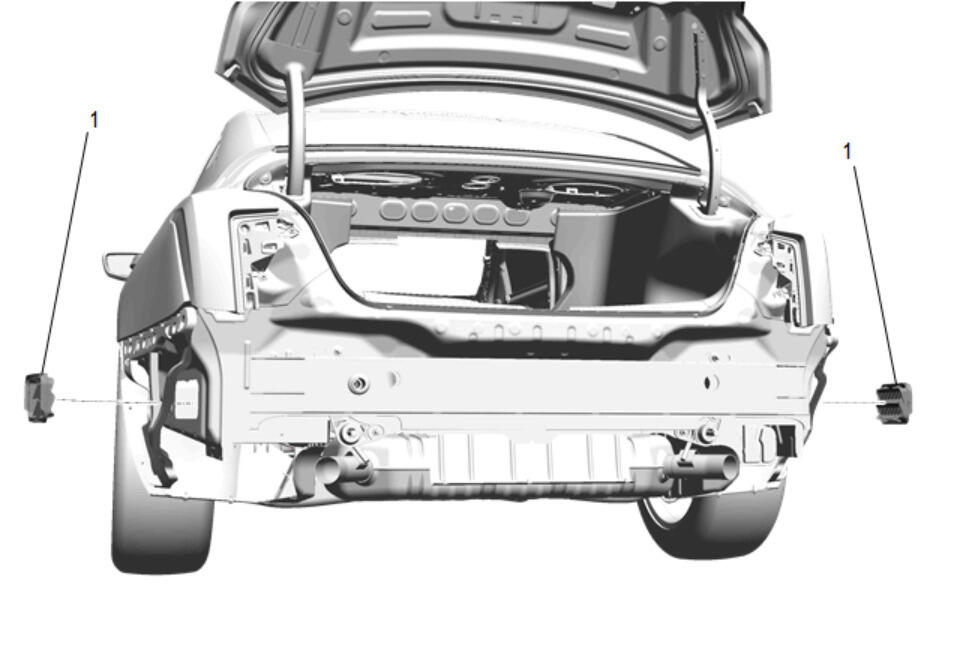

Use a flat-bladed tool to release the detents on the body pressure relief valve (1) at the two upper, and two lower locations.
- Body Pressure Relief Valve (1) - Remove [2x]
