Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
With the aid of an assistant, remove the fascia. (1) Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing)
- Disconnect the electrical connector and reposition the wiring harness as necessary.
- NOTE:
Left side shown, right side similar.
WARNING:Refer to Eye Protection Warning .
Drill out the 8 rear bumper fascia extension rivets (1). - Left Side and Right Side Remove and DISCARD
- Rear Bumper Fascia Extension- Left Side and Right Side (2) - Remove [2x]
- WARNING:
Refer to Eye Protection Warning .

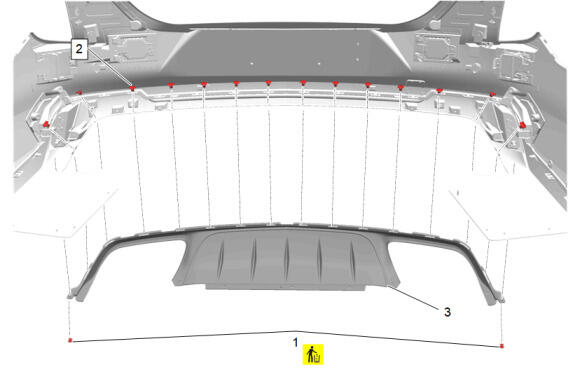

Drill out the 2 rear bumper fascia diffuser rivets (1). Remove and DISCARD
- Rear Bumper Fascia Diffuser Retainer (2) - Remove [14x]
- Rear Bumper Fascia Diffuser (3) - Remove
