Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

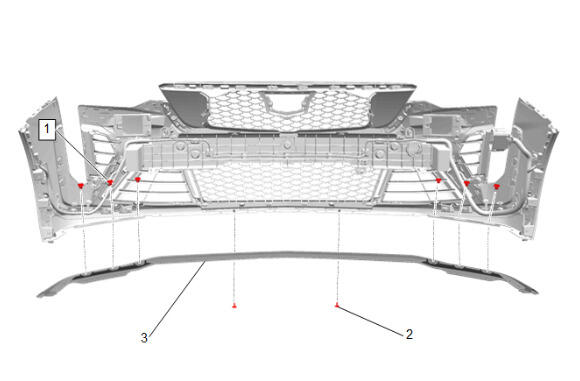

With the aid of an assistant, remove the fascia. (1) - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
Front Bumper Fascia Retainer (1) - Remove [6x]
- Front Bumper Fascia Air Deflector Bolt (2) - Remove [2x]
- Front Bumper Lower Fascia (3) - Remove
