Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

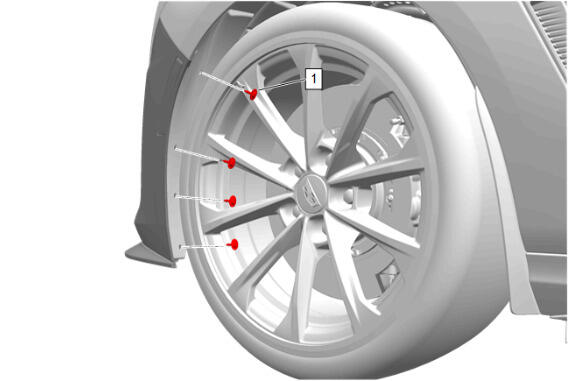

Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Remove [8x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Bumper Fascia Bolt- Left Side and Right Side (1) - Remove [8x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Front Bumper Fascia Air Deflector Bolt- Left Side and Right Side (1) - Remove [10x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Reposition the left and right side front wheelhouse liners (1) to gain access to the left and right side upper front bumper fascia bolts (2).
Front Bumper Fascia Bolt- Left Side and Right Side (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector Bolt (1) - Remove [10x]
Courtesy of GENERAL MOTORS COMPANY

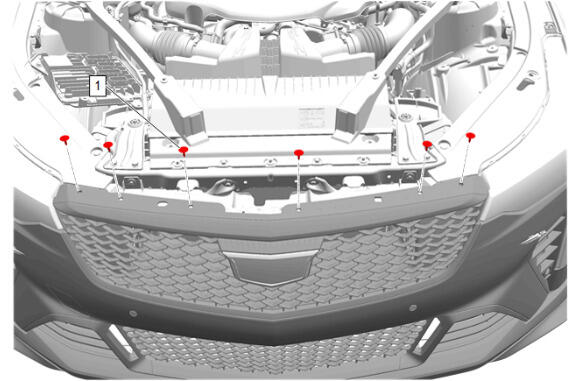

Front Bumper Fascia Bolt (1) - Remove [6x]
Courtesy of GENERAL MOTORS COMPANY

Reposition the front bumper fascia on the right side to gain access to the electrical connector (1).
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

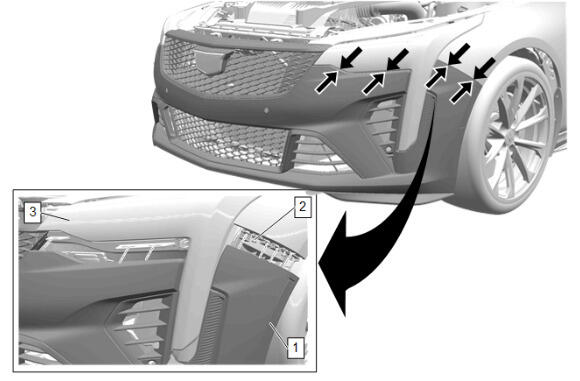

On the left and right side of the front bumper fascia carefully push a small nylon wedge between the front bumper fascia (1), the front bumper fascia guide (2), and the front headlamp (3). Insert a suitable flat-bladed plastic trim tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the left side of the front bumper fascia.
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, remove the fascia. (1)
