Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Front Bumper Fascia (1) - Remove - Front Bumper Fascia Removal and Installation (without Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing) , or Front Bumper Fascia Removal and Installation (with Blackwing CFV, CFZ)
Disconnect the electrical connector.

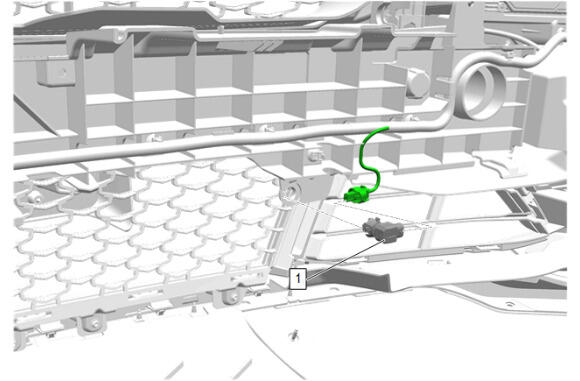

- Ambient Air Temperature Sensor (1) - Remove
- Reposition the wiring harness.
Release the retainer tabs on the front bumper fascia and pull the energy absorber (1) from the front bumper fascia.
Release the foam absorber (1) from the plastic absorber (2) as required.
