Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
When installing the rear seat cushion cover, pull the cover tightly in all corners to ensure that no creasing occurs.

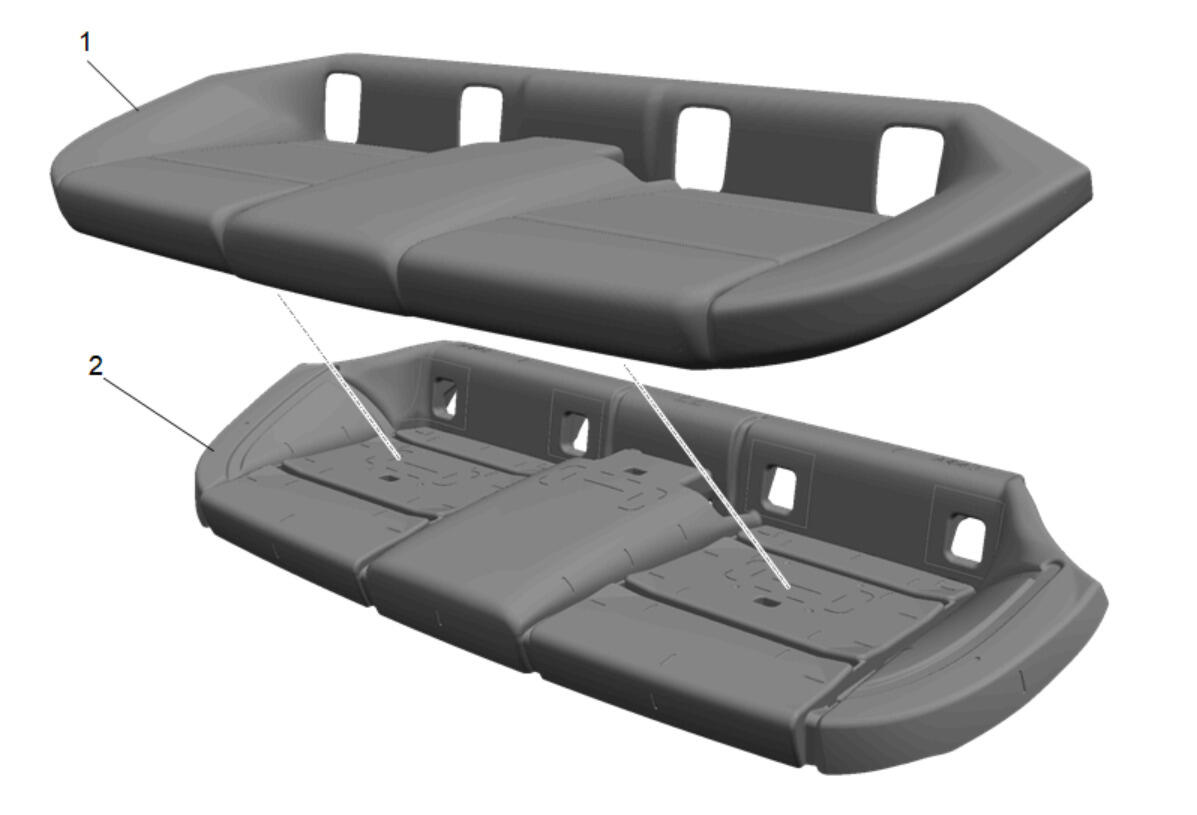

Assemble the rear seat cushion cover (1) to the pad (2) to engage any retainers.
- Install the hog rings that secure the rear seat cushion cover (1) to the pad (2).

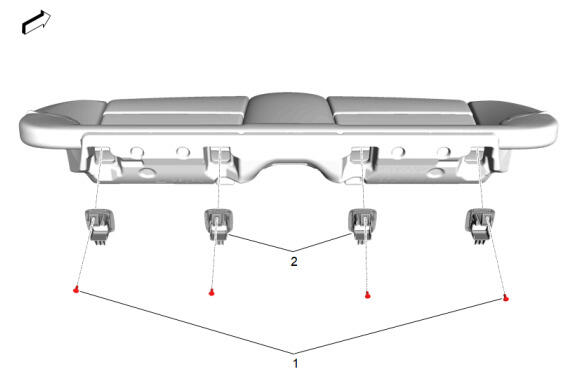

Child Seat Bracket Trim Cover (2) - Install [4x]
- Rear Seat Hinge Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Rear Seat Cushion (1) - Install - Rear Seat Cushion Removal and Installation
CAUTION:
Refer to Fastener Caution .
