Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

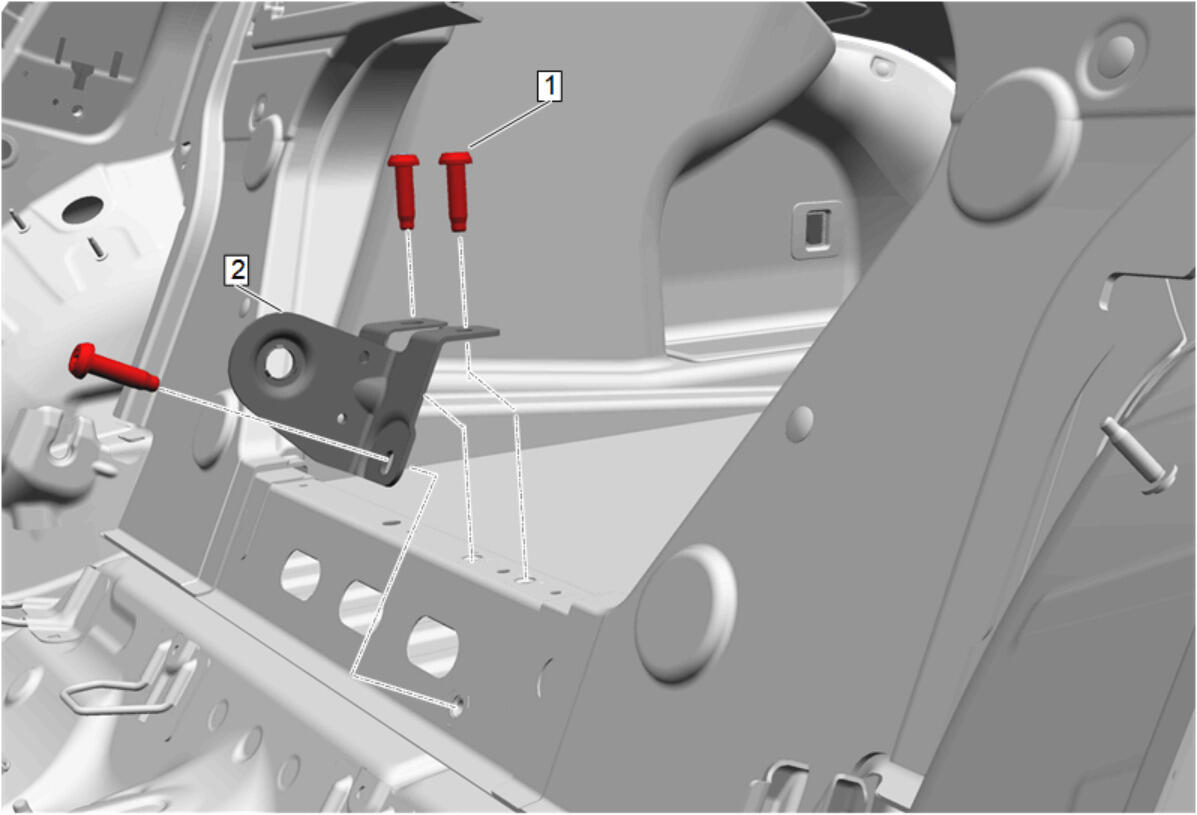

  1. GM5326554Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Cushion Hinge (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Rear Seat Back Cushion Hinge Bolt (1) - Install and tighten - Fastener Specifications [3x]
  3. GM5471885Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Panel Trim (2) - Install

  4. Rear Compartment Floor Stowage Compartment Retainer (1) - Install [3x]
  5. GM5326630Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Cushion (1) - Install - Rear Seat Back Cushion Removal and Installation (60 Percent Seat) , or Rear Seat Back Cushion Removal and Installation (40 Percent Seat)
