Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

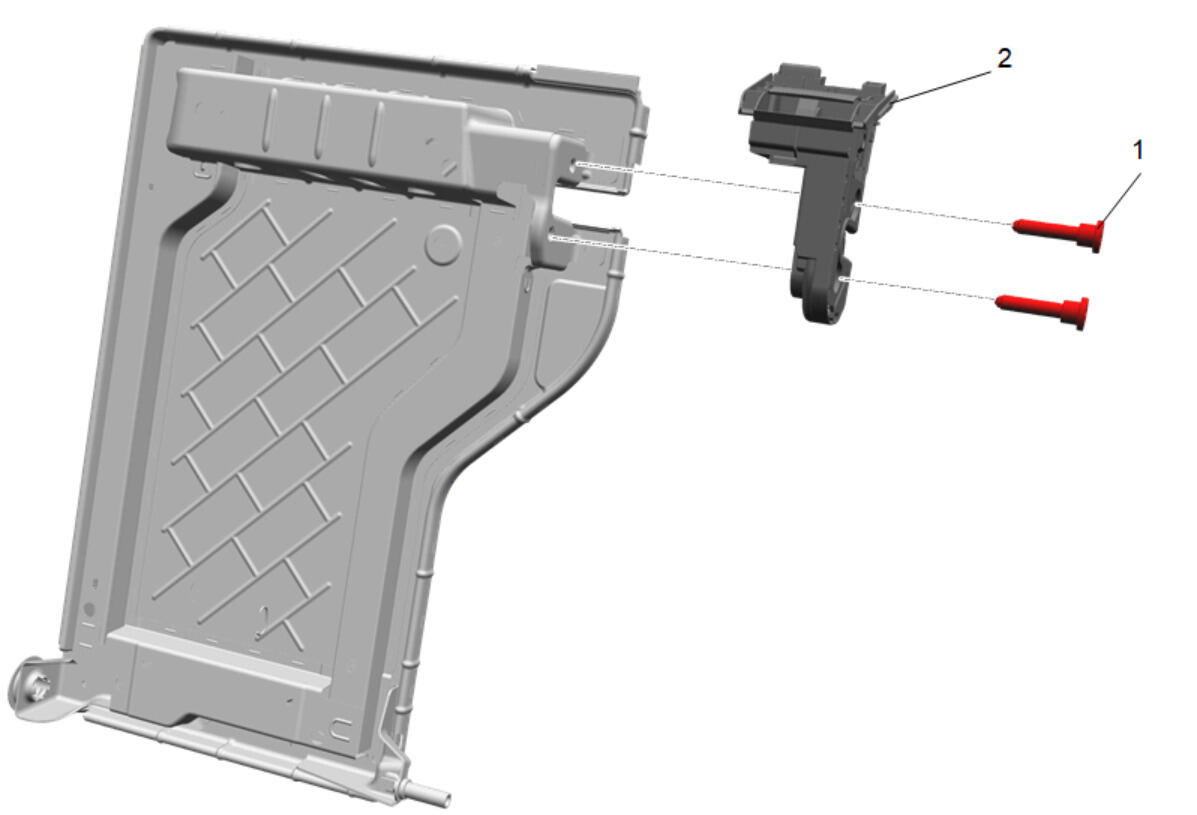

Rear Seat Back Cushion Latch (2) - Install

CAUTION:

Refer to Fastener Caution .

Rear Seat Back Cushion Latch Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

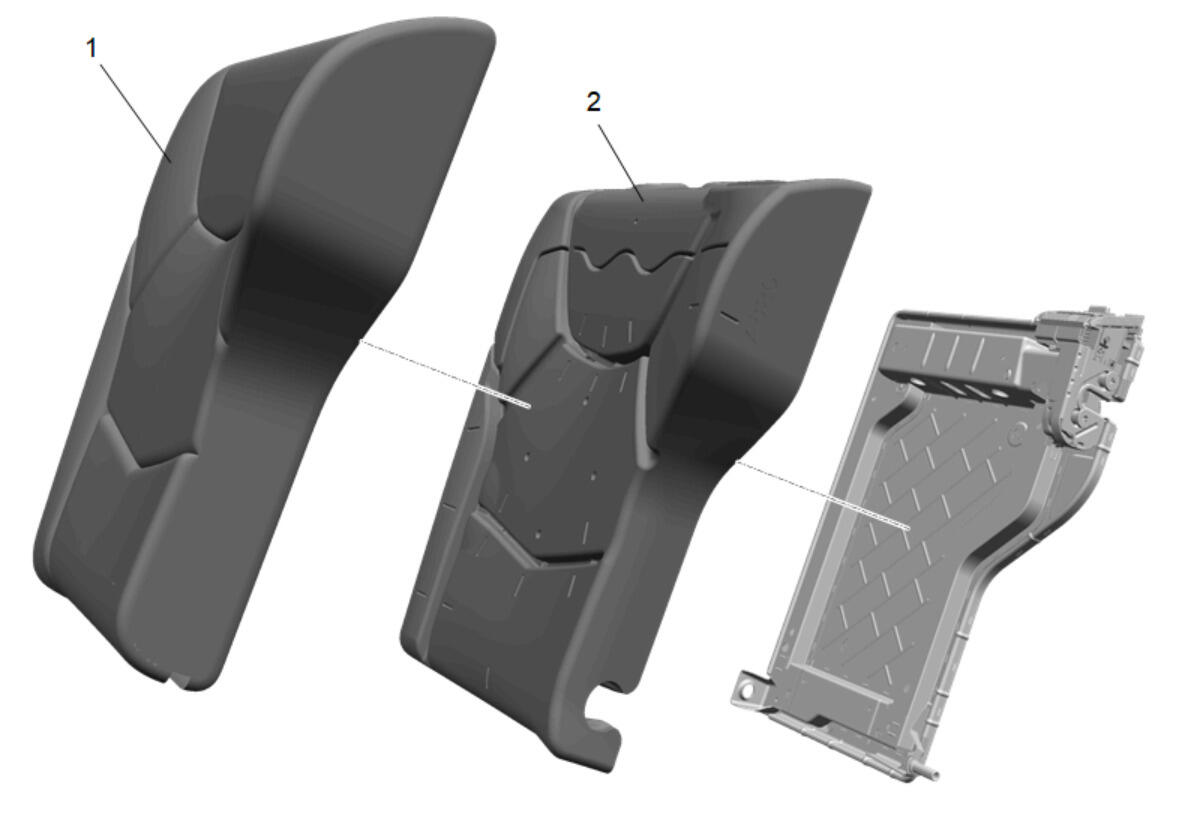

Install the rear seat cushion cover and pad (1, 2) to the rear seat back frame.
Courtesy of GENERAL MOTORS COMPANY

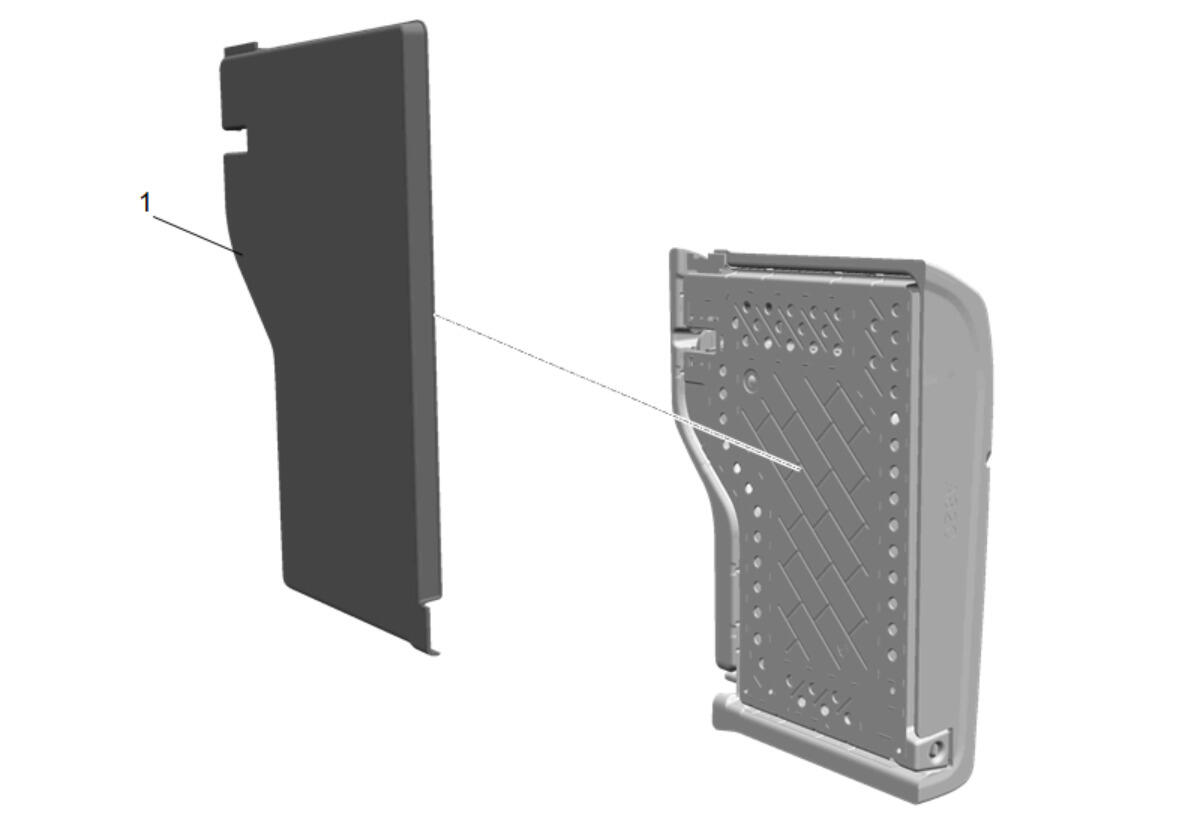

Rear Seat Back Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

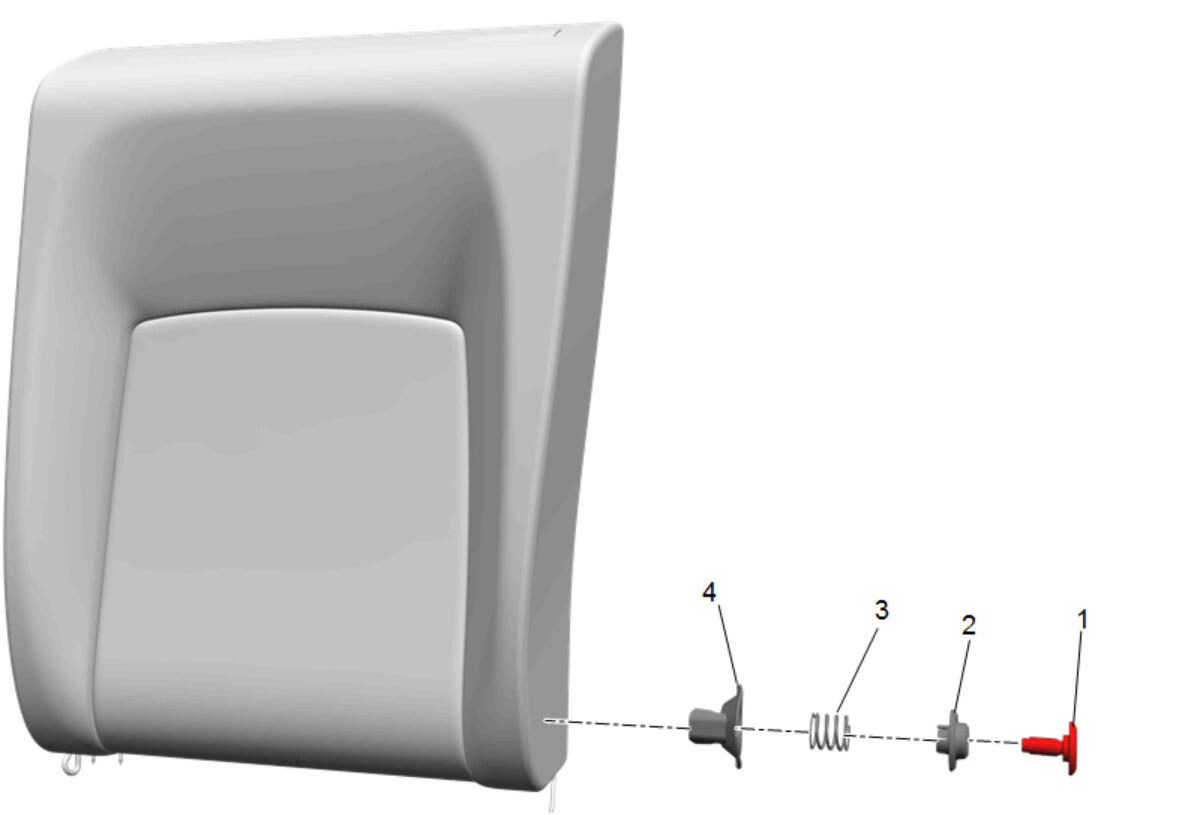

Rear Seat Recliner Outer Finish Cover (4) - Install
Rear Seat Back Cushion Outer Pivot Bolt Spring (3) - Install
Rear Seat Back Hinge Bushing (2) - Install
Rear Seat Back Outer Pivot Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Back Latch Release Handle Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Rear Seat Head Restraint Guide (1) - Install
Courtesy of GENERAL MOTORS COMPANY

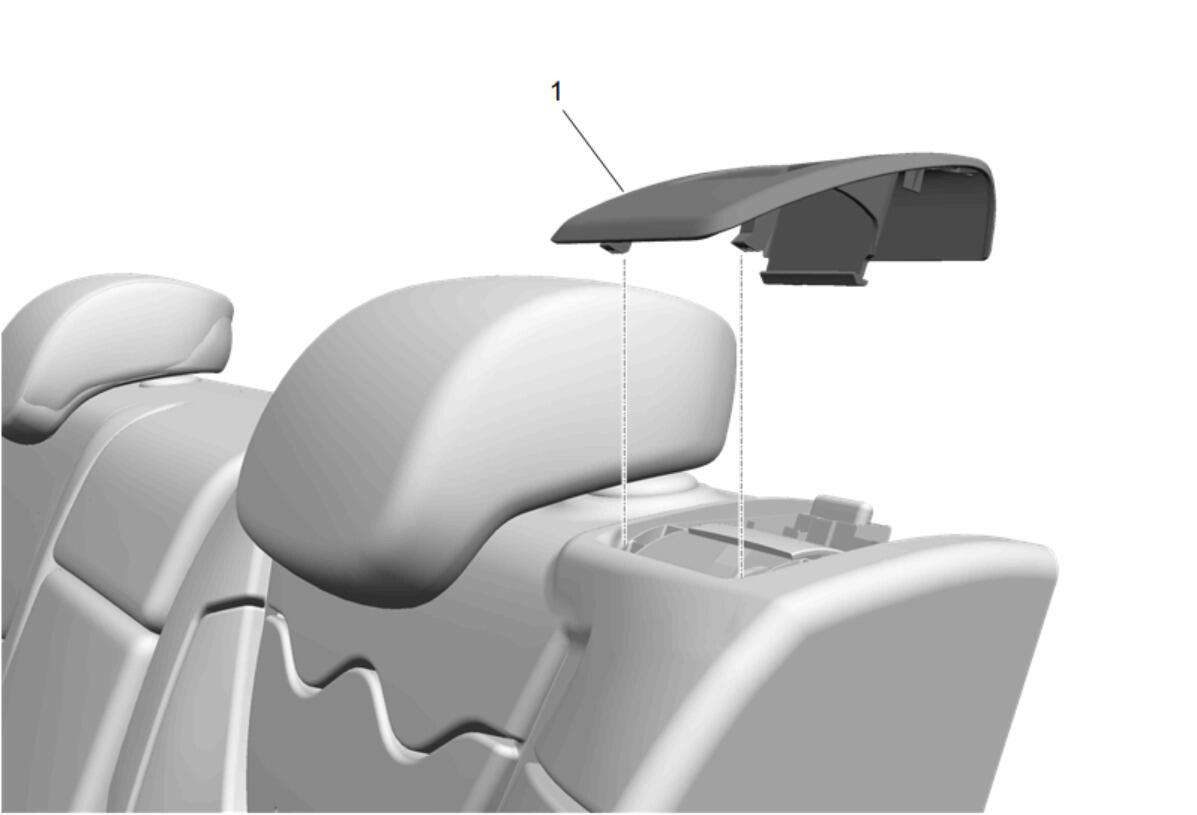

Rear Seat Head Restraint (1) - Install
Courtesy of GENERAL MOTORS COMPANY

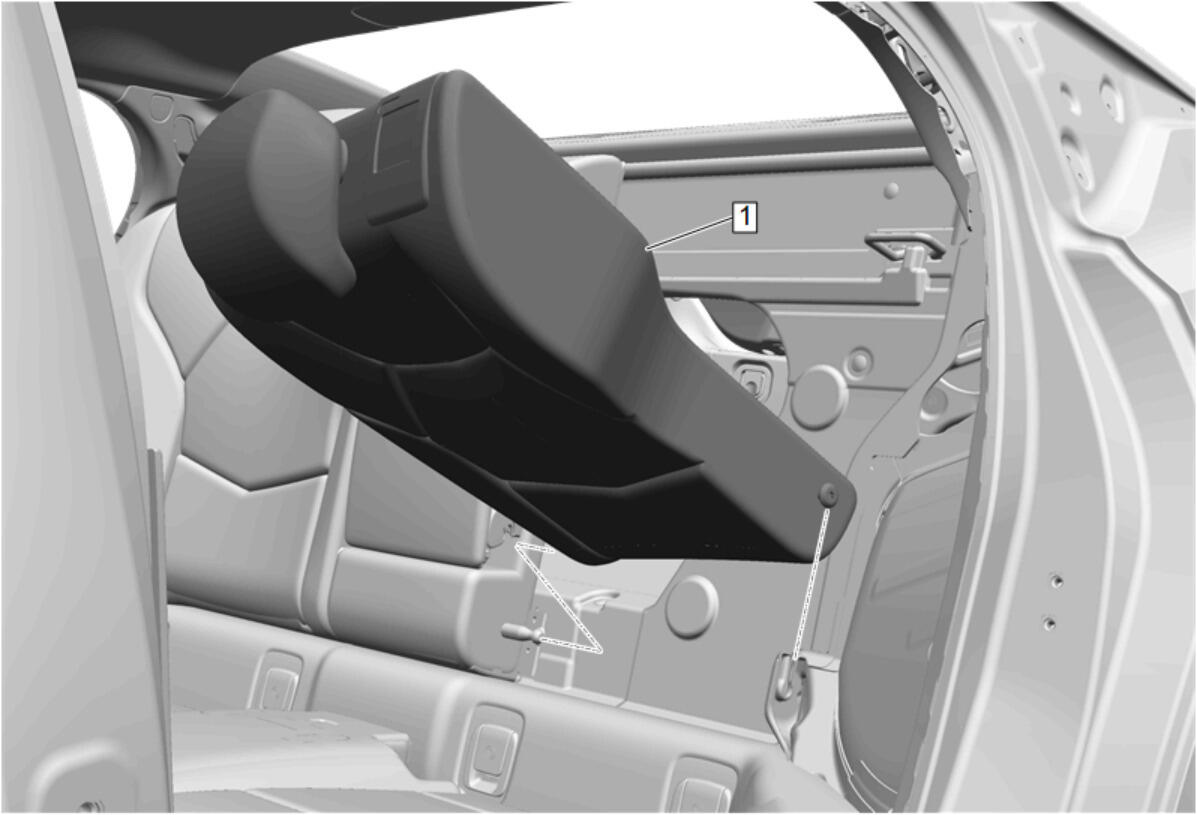

Rear Seat Back Cushion (1) - Install - Rear Seat Back Cushion Removal and Installation (60 Percent Seat) , or Rear Seat Back Cushion Removal and Installation (40 Percent Seat)
