Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Position the cushion cover (1) to the cushion pad (2).
- Install the hog rings to the under side of the seat cushion.

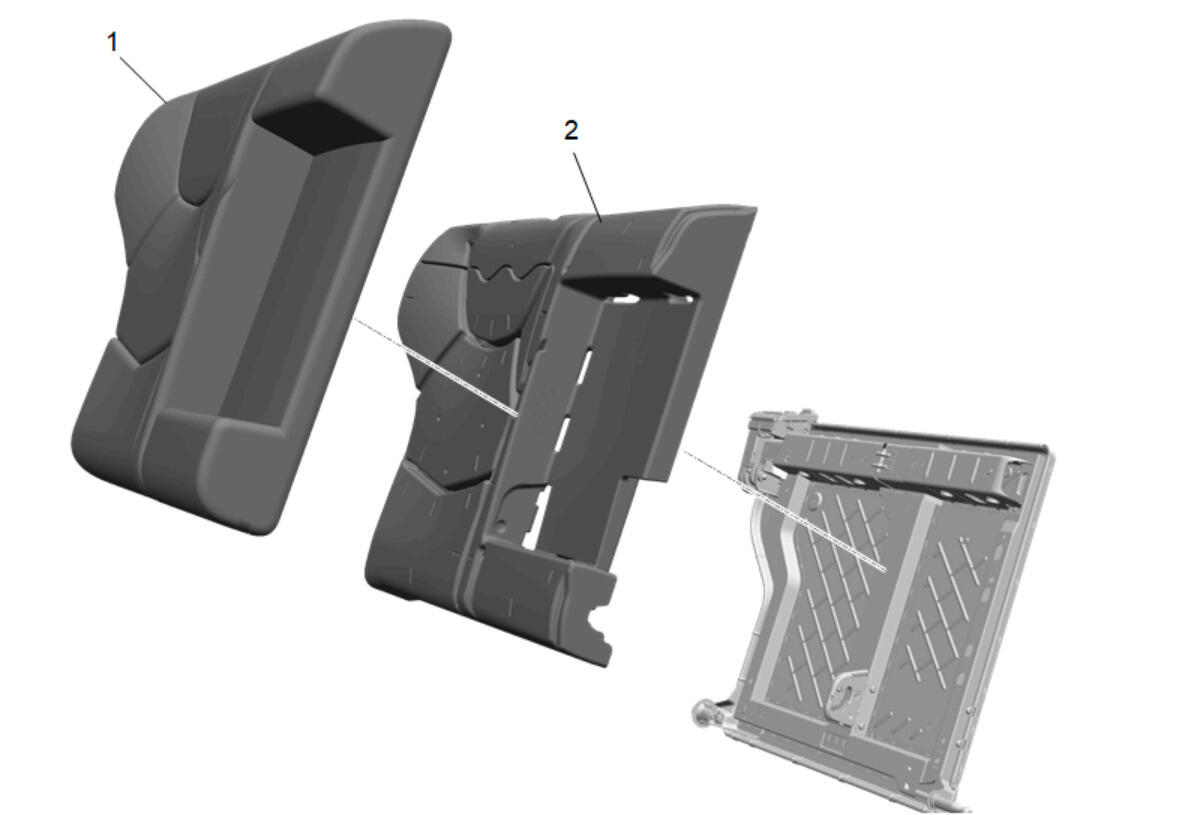

- Install the rear seat cushion cover and pad (1, 2) to the rear seat back frame.
Rear Seat Armrest (2) - Install
- Ensure the rear seat armrest retaining pin is secured by the inboard armrest hinge cover (1) retaining tab.
Install the rear seat armrest hinge finish bracket (4) onto the rear seat armrest (5).
- Rear Seat Armrest Clip (3) - Install
- Rear Seat Armrest Bolt (2) - Install and tighten - Fastener Specifications [2x]
- Rear Seat Armrest Hinge Finish Cover (1) - Install

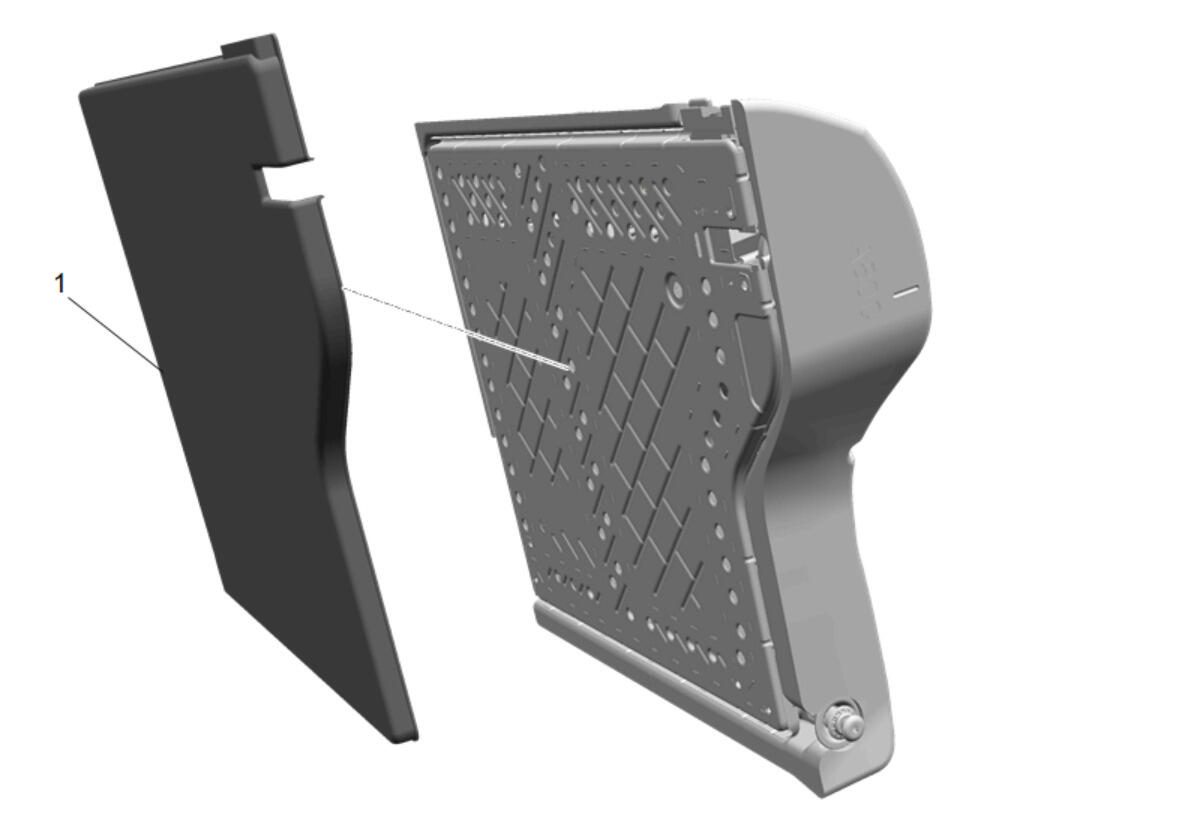

Rear Seat Back Panel (1) - Install

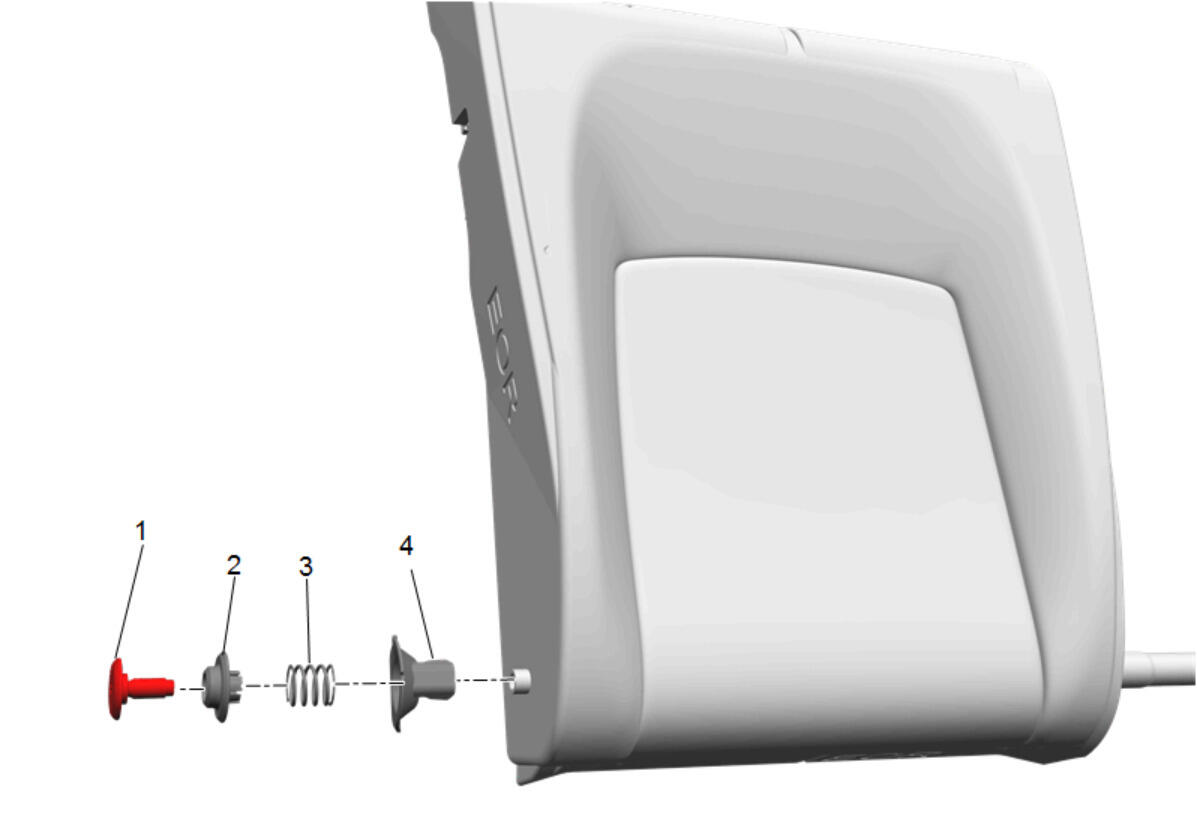

Rear Seat Recliner Outer Finish Cover (4) - Install
- Rear Seat Back Cushion Outer Pivot Bolt Spring (3) - Install
- Rear Seat Back Hinge Bushing (2) - Install
- Rear Seat Back Outer Pivot Bolt (1) - Install and tighten - Fastener Specifications
Rear Seat Back Latch Release Handle Bezel (1) - Install
Rear Seat Head Restraint Guide (1) - Install
Rear Seat Head Restraint (1) - Install
Rear Seat Back Cushion (1) - Install - Rear Seat Back Cushion Removal and Installation (60 Percent Seat) , or Rear Seat Back Cushion Removal and Installation (40 Percent Seat)
CAUTION:
Refer to Fastener Caution .
