Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

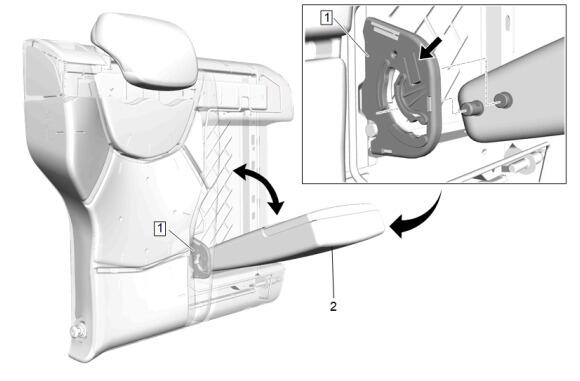

Rear Seat Armrest (2) - Install
- Ensure the rear seat armrest retaining pin is secured by the inboard armrest hinge cover (1) retaining tab.

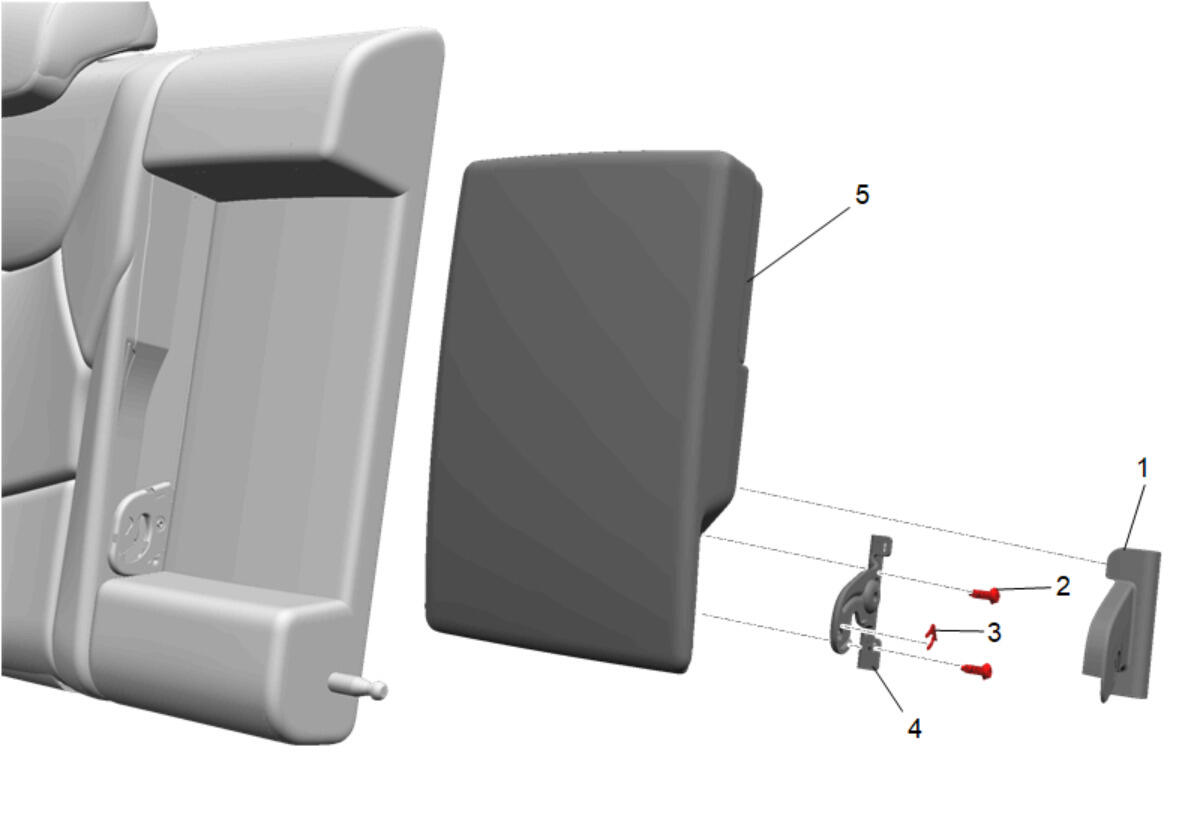

Install the rear seat armrest hinge finish bracket (4) onto the rear seat armrest (5).
- Rear Seat Armrest Clip (3) - Install
- Rear Seat Armrest Bolt (2) - Install and tighten - Fastener Specifications [2x]
- Rear Seat Armrest Hinge Finish Cover (1) - Install

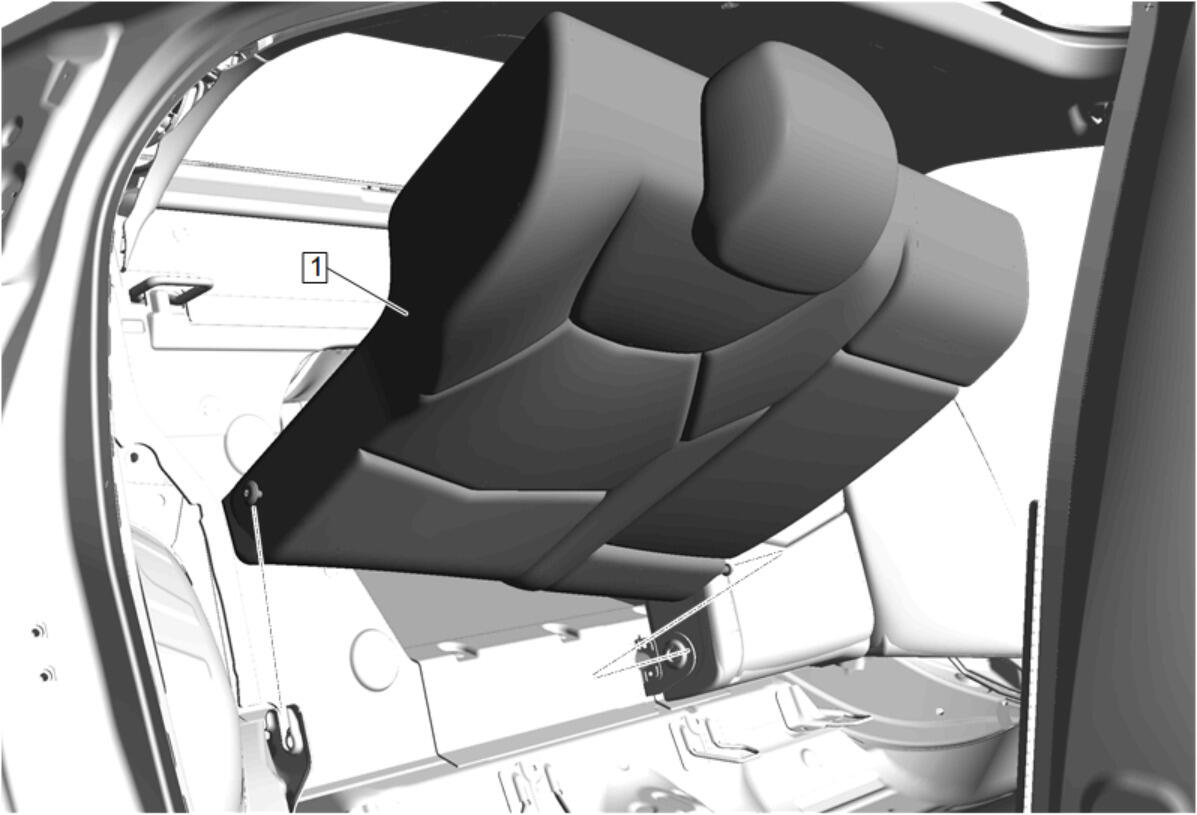

Rear Seat Back Cushion (1) - Install - Rear Seat Back Cushion Removal and Installation (60 Percent Seat) , or Rear Seat Back Cushion Removal and Installation (40 Percent Seat)
CAUTION:
Refer to Fastener Caution .
