Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4143750Courtesy of GENERAL MOTORS COMPANY

    Front Seat Head Restraint Guide (1) - Install

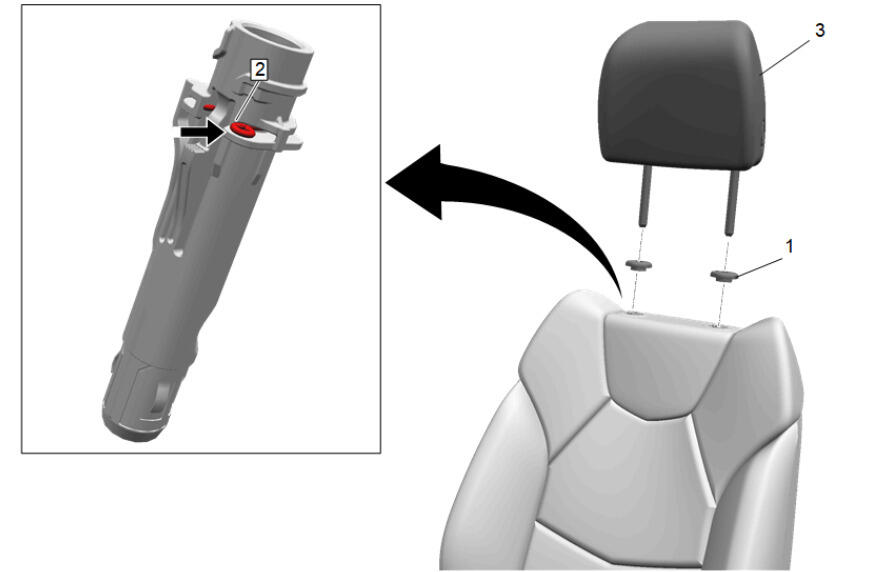

  2. GM5442503Courtesy of GENERAL MOTORS COMPANY

    Front Seat Head Restraint Guide Bezel (1) - Install

  3. Front Seat Head Restraint (3) - Install
  4. Return the front seat to the original position.
