Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Driver and Passenger Seat Lumbar Control Switch (2) - Install
- { If equipped } Driver or Passenger Seat Lumbar Support Actuator Knob (1) - Install

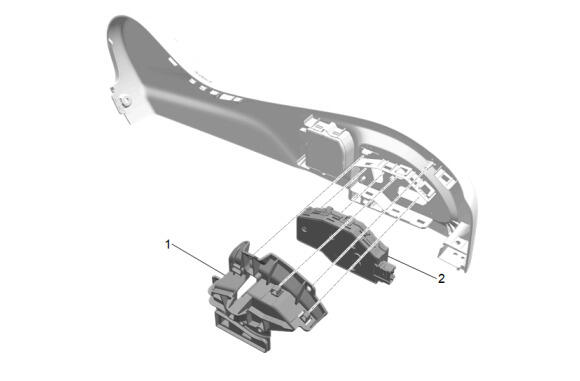

Front Seat Adjuster Switch (2) - Install
- Front Seat Adjuster Finish Cover Retainer (1) - Install
Connect the electrical connector.
- Front Seat Cushion Outer Finish Cover (2) - Install
- Front Seat Cushion Outer Finish Cover Bolt -Rear (1) - Install and tighten - Fastener Specifications
Front Seat Cushion Front Finish Cover (3) - Install
- Front Seat Cushion Outer Finish Cover Bolt -Front (2) - Install and tighten - Fastener Specifications
- Front Seat Cushion Front Finish Cover Bolt (1) - Install and tighten - Fastener Specifications
- Return the seat to the original position.

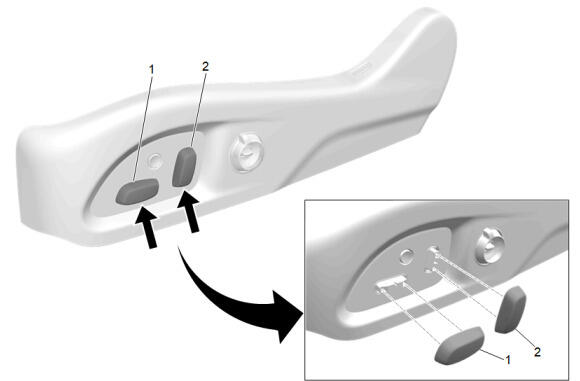

Front Seat Recliner Knob (2) - Install
- Front Seat Adjuster Knob (1) - Install
CAUTION:
Refer to Fastener Caution .
