Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

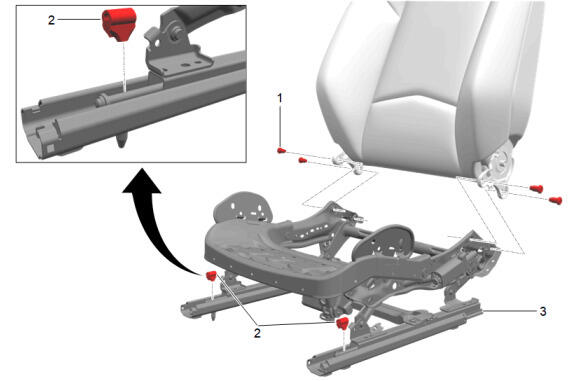

  1. GM5835291Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Frame (3) - Install

    2. NOTE:

    The new cushion frame may not have adjuster stops installed. Transfer the adjuster stops from original frame or install new as needed. The frame may need to be adjusted to access the adjuster stops.

  2. Front Seat Adjuster Stop (2) - Install [2x]
  3. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
    4. CAUTION:

    Refer to Fastener Caution .

  4. Front Seat Upper Bolt (1) - Install and tighten [4x] - Fastener Specifications
  5. GM5779453Courtesy of GENERAL MOTORS COMPANY

    Front Seat Lumbar Support (1) - Install

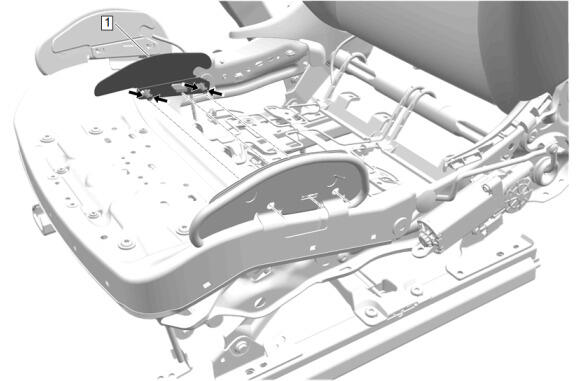

  6. GM5779449Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Outer Finish Cover Support (1) - Install [2x]

  7. GM5864527Courtesy of GENERAL MOTORS COMPANY

    Front Seat Adjuster Memory Module Bracket (2) - Install

  8. Position the wiring harness.
  9. Front Seat Adjuster Memory Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
  10. GM5324130Courtesy of GENERAL MOTORS COMPANY

    Front Seat Heater Vent Control Module (2) - Install

  11. Front Seat Heater Vent Control Module Bolt (1) - Install and tighten - Fastener Specifications
  12. Connect the electrical connectors.

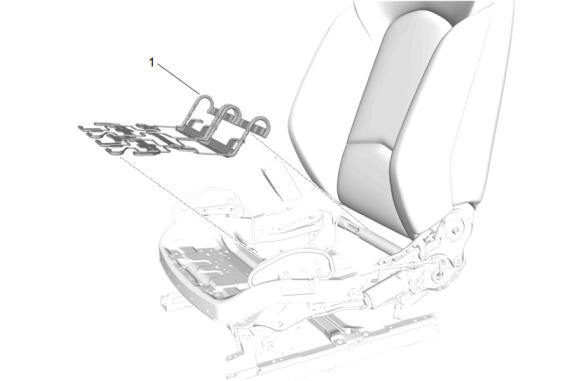

  13. GM5863968Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Pad Support (1) - Install

  14. Install the retainers.
  15. GM5864482Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Pad Front Support (1) - Install

  16. GM5864481Courtesy of GENERAL MOTORS COMPANY

    Airbag Front Passenger Presence Module (2) - Install

  17. Install the airbag front passenger presence module sensor onto the bracket.
  18. Connect the electrical connector.
  19. Airbag Front Passenger Presence Module Retainer (1) - Install [2x]

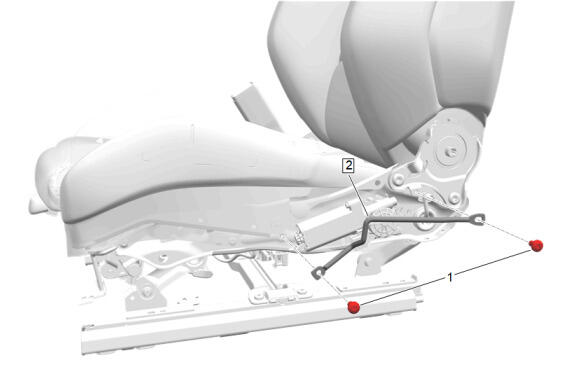

  20. GM5758417Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Cover Retainer - Power Sideshield (2) - Install

  21. Front Seat Adjuster Finish Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications

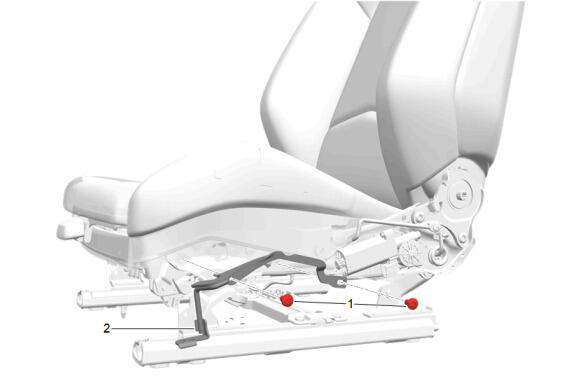

  22. GM5758416Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Cover Retainer - Front Sideshield (2) - Install

  23. Front Seat Adjuster Finish Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications

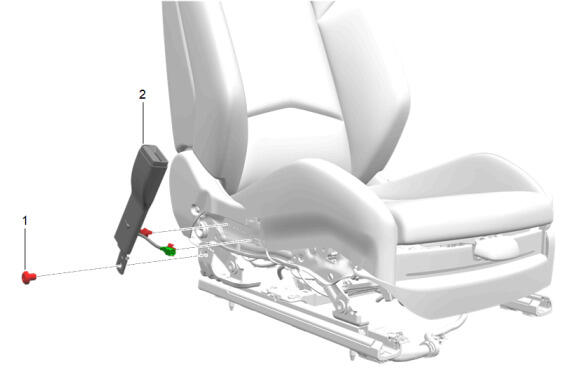

  24. GM5752935Courtesy of GENERAL MOTORS COMPANY

    Front Seat Belt Buckle (2) - Install

  25. Connect the electrical connector and install the wiring harness retainers as necessary.
  26. Front Seat Belt Buckle Bolt (1) - Install and tighten - Fastener Specifications

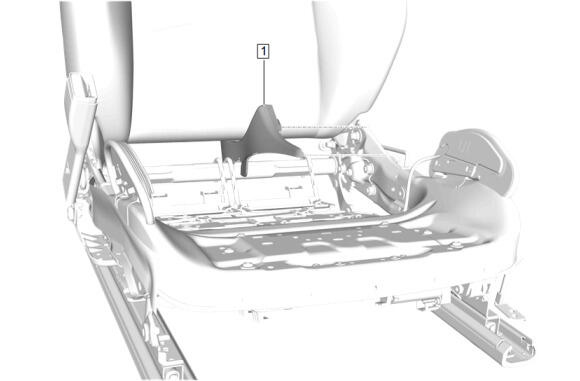

  27. GM5845722Courtesy of GENERAL MOTORS COMPANY

    Front Seat Inner Recliner Finish Cover (1) - Install [2x]

  28. GM5752224Courtesy of GENERAL MOTORS COMPANY

    Front Seat Adjuster Track Finish Cover - Outer (1) - Install

  29. GM5752222Courtesy of GENERAL MOTORS COMPANY

    Front Seat Adjuster Track Finish Cover - Inner (1) - Install

  30. GM5844454Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Cover and Pad (2) - Install - Front Seat Cushion Cover and Pad Removal and Installation , or Front Seat Cushion Cover and Pad Removal and Installation (Blackwing)

    31. NOTE:

    The Regulatory Name for this component because of SAE J1930 is Restraints Occupant Classification System Module.

  31. Perform the necessary programming and setup procedure: Control Module References
