Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5461044Courtesy of GENERAL MOTORS COMPANY

    Install the front seat cushion cover and pad (2) as an assembly.

  2. Install the four retainers (1) holding the front seat cushion cover to the front seat cushion frame.
  3. Connect the electrical connectors.
  4. Connect the J-channel retainers.

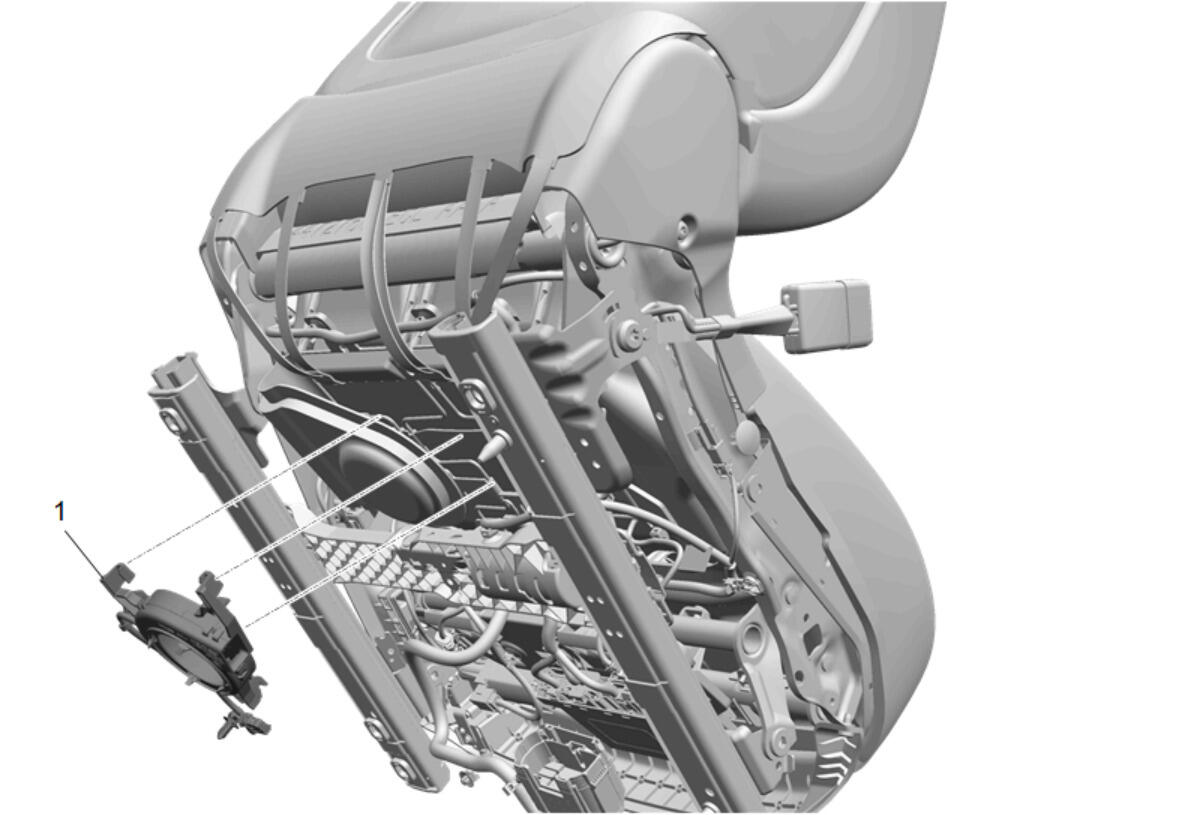

  5. GM5314524Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Ventilation Blower (1) - Install

  6. Connect the electrical connector.

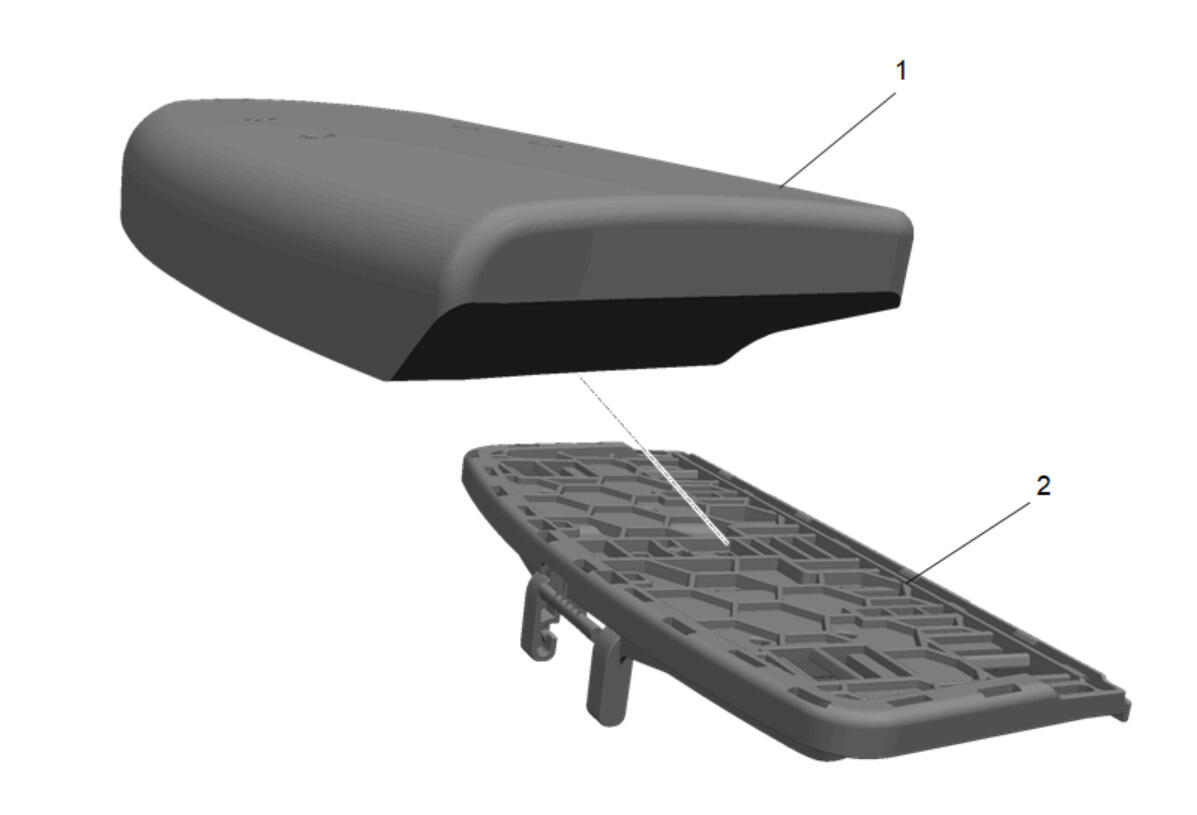

  7. GM5314528Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Front Extension Pad (1) - Install

  8. Front Seat Cushion Front Extension Frame (2) - Install

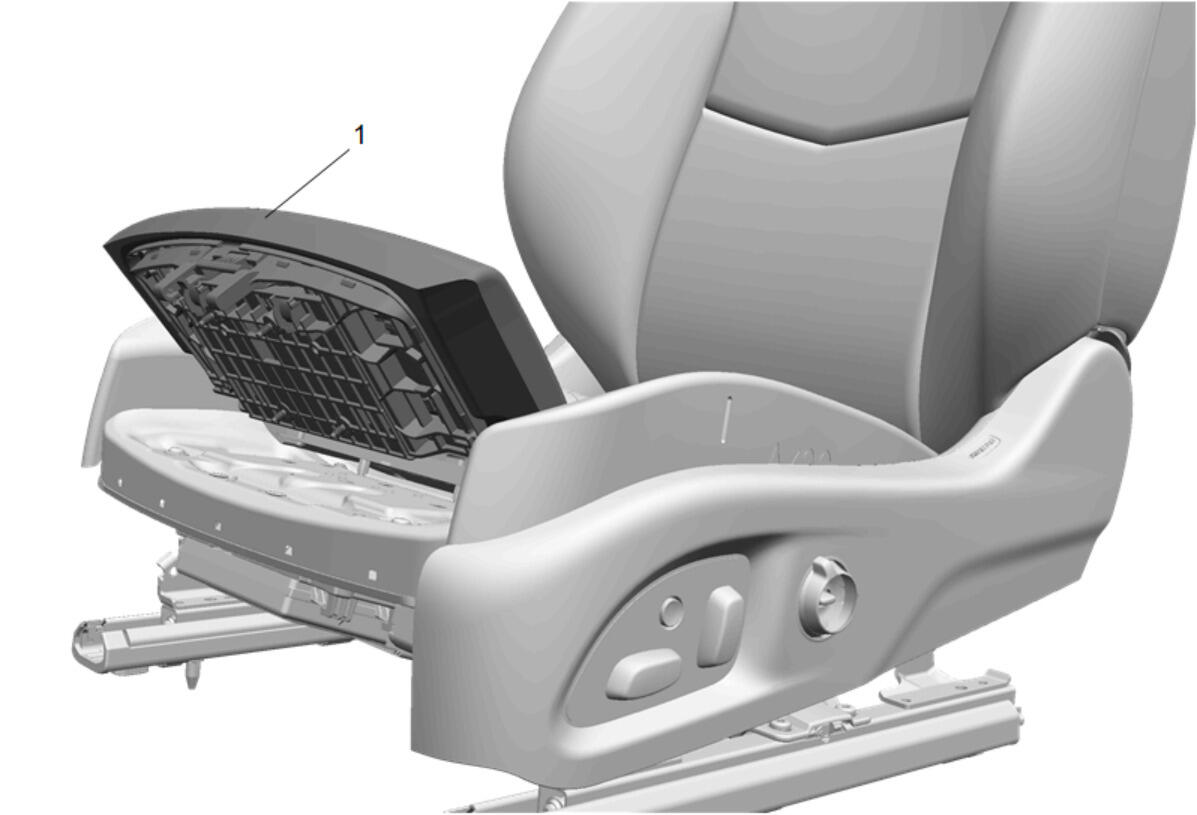

  9. GM5314526Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Front Extension Frame (1) - Install

  10. Connect the front seat cushion cover retainer.

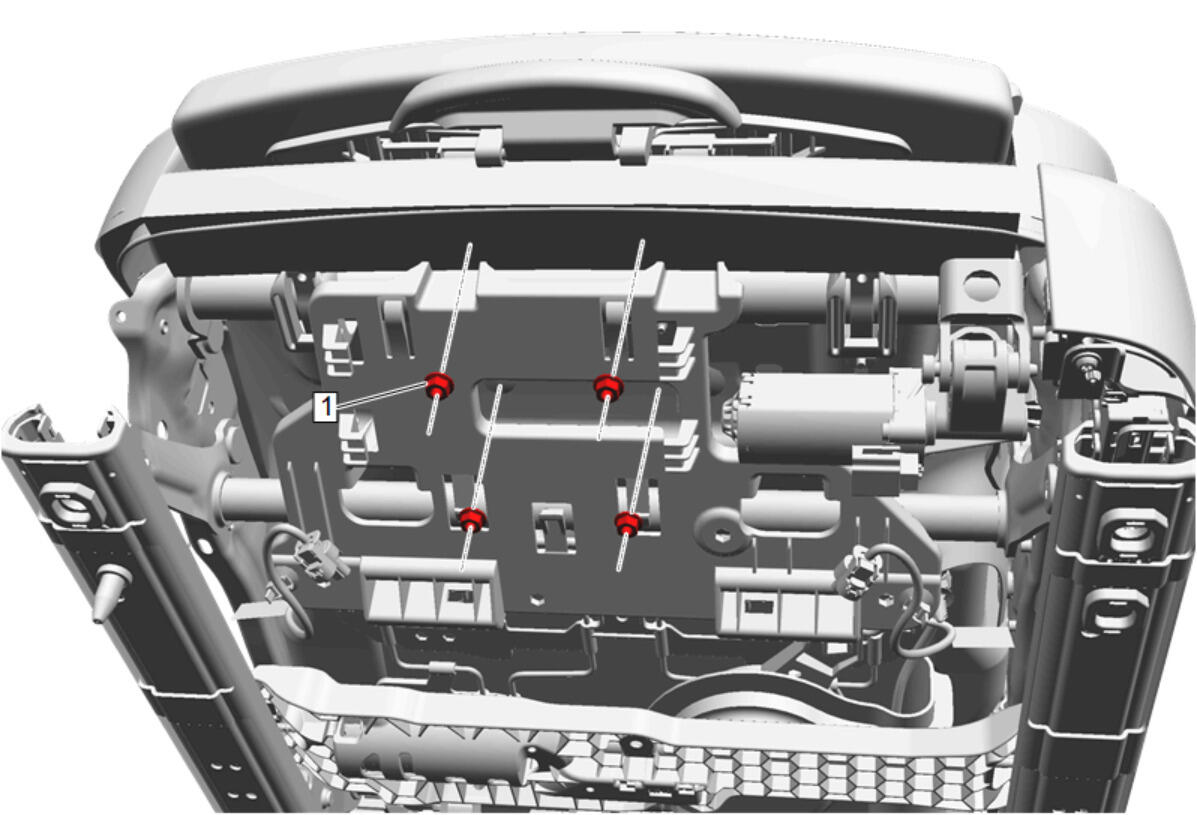

  11. GM5314529Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Seat Cushion Front Extension Frame Nut (1) - Install and tighten [4x] - Fastener Specifications

  12. GM5314531Courtesy of GENERAL MOTORS COMPANY

    Driver or Passenger Seat Adjuster Memory Module (1) - Install

  13. Connect the electrical connector.
  14. GM5308829Courtesy of GENERAL MOTORS COMPANY

    Front Seat Inner Adjuster Front Finish Cover (2) - Install

  15. Front Seat Adjuster Finish Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  16. GM5552551Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  17. Front Seat Cushion Outer Finish Cover (2) - Install
  18. Front Seat Cushion Outer Finish Cover Bolt -Rear (1) - Install and tighten - Fastener Specifications
  19. GM5309114Courtesy of GENERAL MOTORS COMPANY

    Front Seat Cushion Front Finish Cover (3) - Install

  20. Front Seat Cushion Outer Finish Cover Bolt -Front (2) - Install and tighten - Fastener Specifications
  21. Front Seat Cushion Front Finish Cover Bolt (1) - Install and tighten - Fastener Specifications
  22. GM5308604Courtesy of GENERAL MOTORS COMPANY

    Front Seat (2) - Install - Front Seat Removal and Installation , or Front Seat Removal and Installation (Blackwing)

    23. NOTE:

    The Regulatory Name for this component because of SAE J1930 is Restraints Occupant Classification System Module.

  23. Perform the necessary programming and setup procedure: Control Module References
