Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

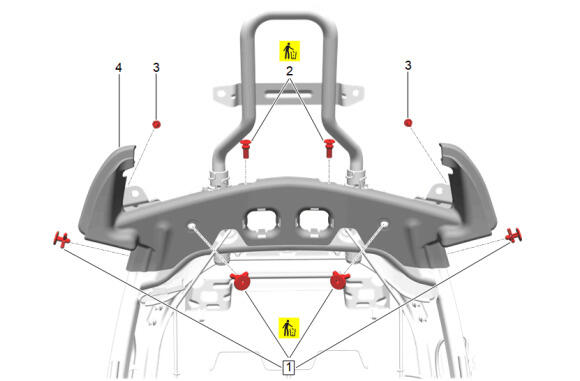

Front Seat Back Upper Support (4) - Install
- Front Seat Vent Fan Control Module Bolt (3) - Install and tighten [2x] - Fastener Specifications
- Front Seat Back Frame Reinforcement Rivet (2) - Install NEW [2x] - Fastener Specifications
- Front Seat Back Upper Support Rivet (1) - Install NEW [4x] - Fastener Specifications

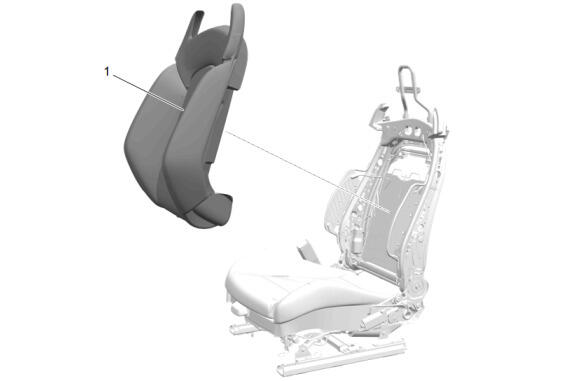

Front Seat Back Cover and Pad (1) - Install - Front Seat Back Cover and Pad Removal and Installation (with Seat Back Cushion Finish Panel) , or Front Seat Back Cover and Pad Removal and Installation (without Seat Back Cushion Finish Panel) , or Front Seat Back Cover and Pad Removal and Installation (Blackwing)
