Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
- Some components not shown for graphic clarity.
- Hold both sides of the zipper straight while unzipping.
Unzip the left and right front seat back cover zippers.
- Reposition the rear of the front seat back cover as necessary.

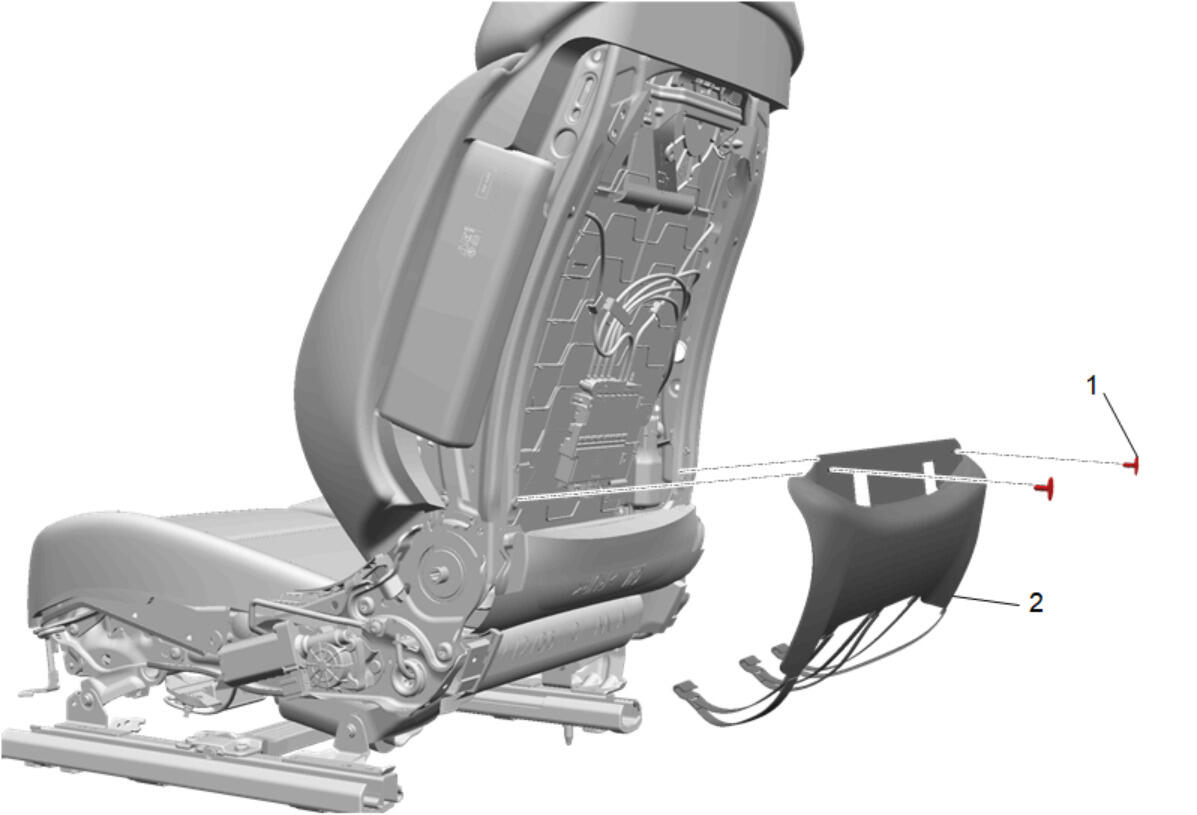

- Front Seat Back Rear Lower Cover Retainer (1) - Remove [2x]
- Detach the front seat back rear lower cover bottom bungee clips from the cushion pan.
- Front Seat Back Rear Lower Cover (2) - Remove
