Driver or Passenger Seat Removal - With No Fore/Aft Movement

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to SIR Warning .

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Raise the front seat head restraint (3) to gain access to the head restraint guide bezel (1).
Twist the head restraint guide bezel (1) counter clockwise and push the bezel upward on the head restraint adjuster rod.
Using a suitable pointed or flat bladed tool, push the head restraint clip (2) rearward while pulling upward on the front seat head restraint (3).
Adjust the seat to gain access to the bolts.
Courtesy of GENERAL MOTORS COMPANY

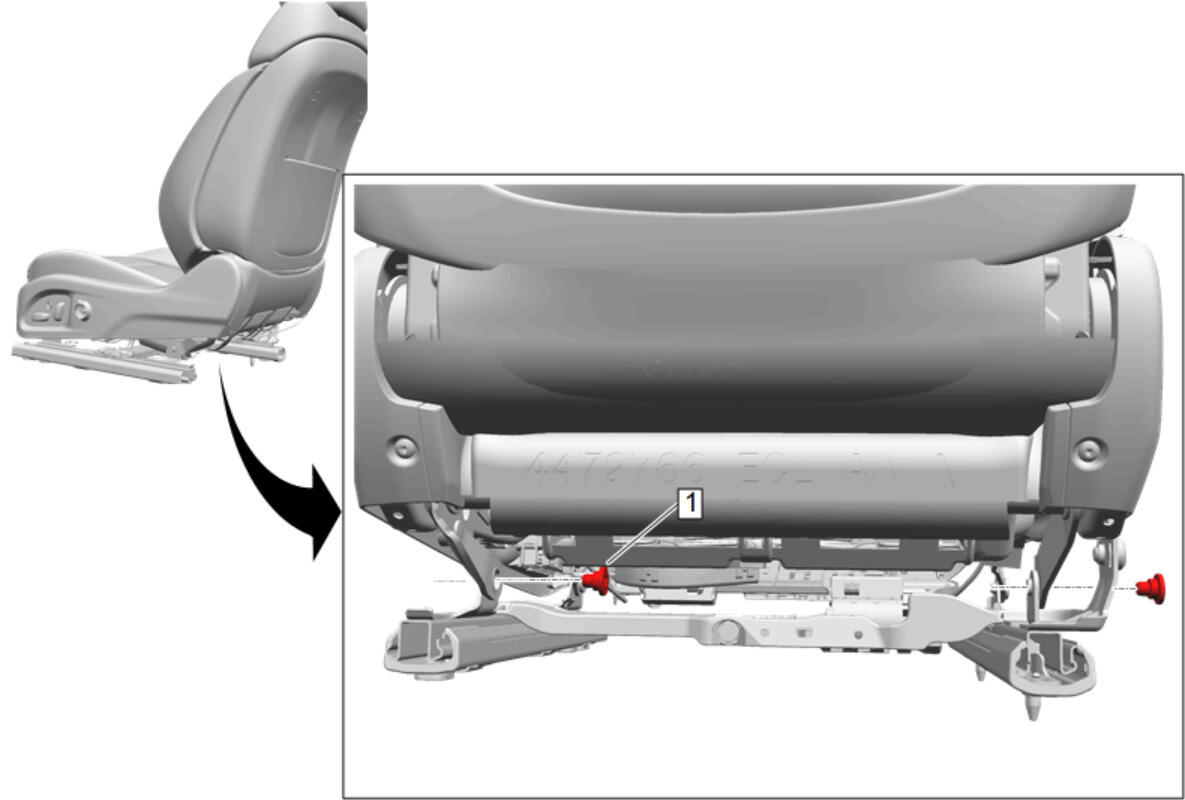

Front Seat Vertical Adjuster Bracket Bolt - Rear (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Tilt the seat forward and support it.

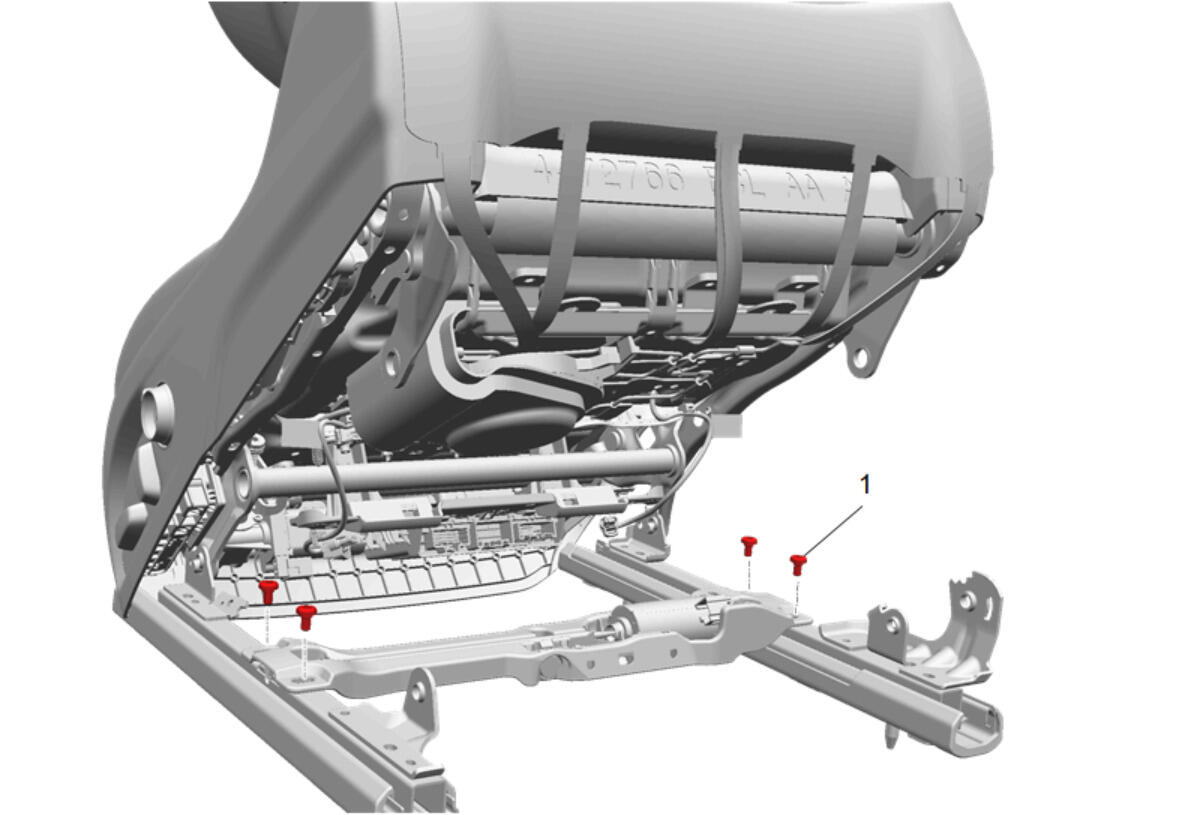

Cross Brace Bolt (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The seat can now be moved fore/aft to access the seat bolts.

Front Seat Bolt (1) - Remove [4x]

NOTE:

If sending the frame back for warranty return, reinstall the front seat vertical adjuster bracket bolts and the cross brace bolts.

Replace with NEW seat cushion frame.
