Vehicle Lifting - Frame Contact Lift
The vehicle should be lifted so that the hoist pads and or lift arms do not contact the rocker panel molding. The hoist pad must be located in the designated area. In the front location, place the lift pads on the rocker outer panel weld flange. In the rear location, place the lift pads on the rocker outer panel rear cradle brace. Care should be taken to ensure the hoist pad is inside the rocker panel molding cut out area (notch) to prevent damage to the vehicle.

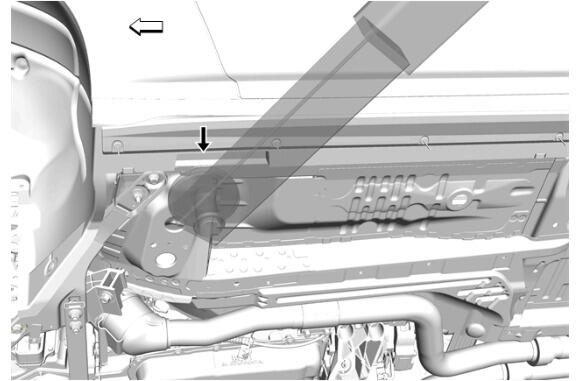

Front Lift Pads
When lifting the vehicle with a frame-contact lift, position the pad as close as possible to the rocker molding cutout.

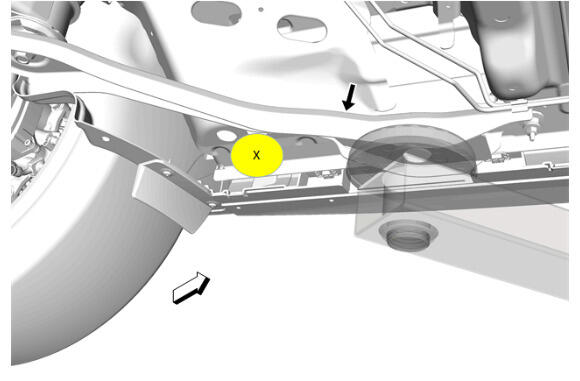

Rear Lift Pads
When lifting the vehicle with a frame-contact lift, cover the inner and outer edges of the rear suspension bracket (arrow). Use the cutout in the rocker molding to correctly position the pad for/aft. If you need to remove the rear suspension bracket, place a jack stand under area X. Raise the jack stand high enough to free the hoist pad from the rear suspension bracket for service.
