Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

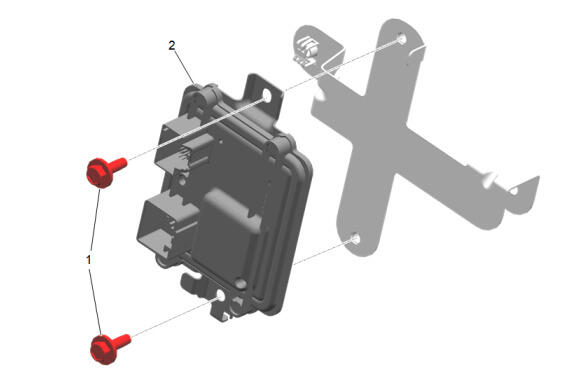

  1. GM5877726

    Rear Differential Clutch Control Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Electronic Limited Slip Differential Control Module Bolt (1) - Install and tighten [2x] - Fastener Specifications

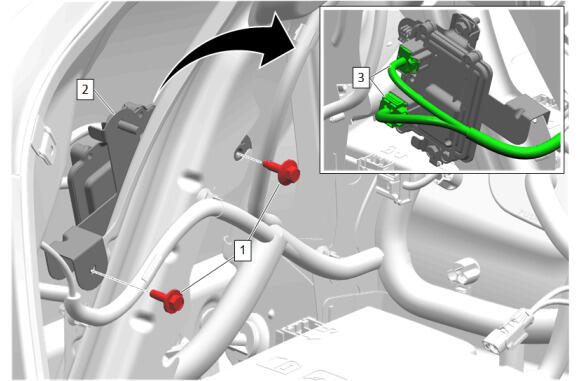

  3. GM5877723

    Electrical Connector (3) - Connect [2x]

  4. Rear Differential Clutch Control Module (2) - Install
  5. Electronic Limited Slip Differential Control Module Bolt (1) - Install and tighten [2x] - Fastener Specifications
  6. GM5483561

    Rear Compartment Side Trim-Left Side (2) - Install

  7. Rear Compartment Side Trim Insulator Retainer (1) - Install [4x]
  8. GM5471885

    Rear Compartment Floor Panel Trim (2) - Install

  9. Rear Compartment Floor Stowage Compartment Retainer (1) - Install [3x]
  10. GM5465255

    Rear End Trim Finish Panel (1) - Install

  11. GM5459293

    Rear End Trim Finish Panel Opening Cover (1) - Install

  12. GM5471799

    Rear Compartment Floor Panel Trim (1) - Install

  13. GM5459270

    Cargo Tie Down Loop (3) - Install [2x]

  14. Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
  15. Cargo Tie Down Loop Bolt Cap (1) - Install [2x]
