Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

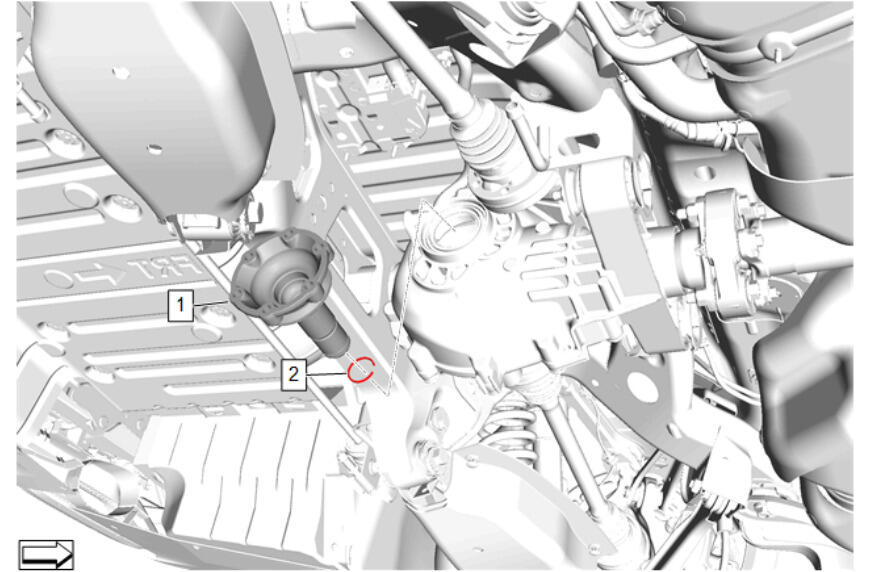

  1. GM5461605

    Rear Wheel Drive Shaft Retaining Ring (2) - Install NEW

  2. Rear Axle Shaft- Right Side (1) - Install
  3. GM5461601

    Position the rear wheel drive shaft (1) onto the rear axle shaft.

  4. GM5457792
    NOTE:

    The rear wheel drive shaft universal joint retainer (1) and washers (2) are serviced as a rear wheel drive shaft universal joint retainer kit consisting of 2 bolts and 1 washer.

    Due to the unknown shelf life, prepare the 6 NEW rear wheel drive shaft universal joint retainer (1) for installation as follows:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  5. Install 3 NEW wheel drive shaft washers (2).
    6. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    CAUTION:

    Refer to Fastener Caution .

  6. Install and tighten the 6 NEW rear wheel drive shaft universal joint retainer (1) in a crisscross pattern. Fastener Specifications
  7. GM5309214

    Catalytic Converter Gasket (2) - Install NEW

  8. Exhaust Muffler (1) - Install
  9. GM5309211

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Right Side (3) - Install

  10. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install
  11. GM5309202

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Left Side (3) - Install

  12. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install
  13. GM5309188

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  14. GM5471236

    Floor Panel Number 4 Cross Bar Reinforcement (1) - Install

  15. Floor Panel Number 4 Cross Bar Reinforcement Bolt (2) - Install and tighten [6x] - Fastener Specifications
  16. GM5400642

    Underbody Rear Air Deflector- Right Side (5) - Install

  17. Underbody Rear Air Deflector Plastic Nut (3) - Install and tighten [3x] - Fastener Specifications
  18. Underbody Rear Air Deflector Bolt (2) - Install and tighten [3x] - Fastener Specifications
  19. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  20. Rear Wheelhouse Liner Screw (1) - Install and tighten - Fastener Specifications
  21. GM5471237

    Rear Tire Front Air Deflector- Right Side (1) - Install

  22. Rear Tire Front Air Deflector Bolt (2) - Install and tighten [2x] - Fastener Specifications
  23. GM5400553

    Underbody Rear Air Deflector- Left Side (5) - Install

  24. Underbody Rear Air Deflector Plastic Nut (2) - Install and tighten [3x] - Fastener Specifications
  25. Underbody Rear Air Deflector Bolt (3) - Install and tighten [3x] - Fastener Specifications
  26. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  27. Rear Wheelhouse Liner Screw (1) - Install and tighten - Fastener Specifications
  28. GM5395705

    Rear Tire Front Air Deflector- Left Side (2) - Install

  29. Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  30. Inspect the exhaust system for leaks.
  31. Remove the support and lower the vehicle.
