Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

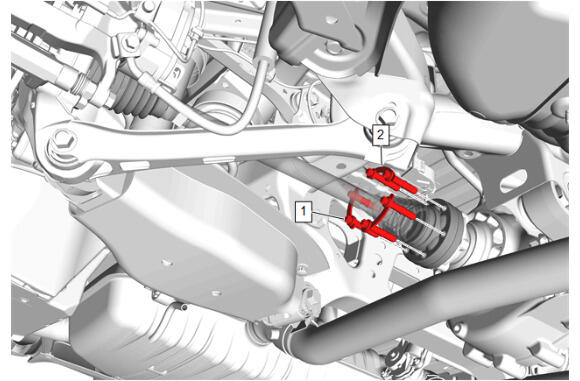

  2. GM5500915
    NOTE:

    The rear wheel drive shaft universal joint retainer (1) and washers (2) are serviced as a rear wheel drive shaft universal joint retainer kit consisting of 2 bolts and 1 washer.

    Remove and DISCARD the 6 rear wheel drive shaft universal joint retainer (1).

  3. Remove and DISCARD the 3 wheel drive shaft washers (2).

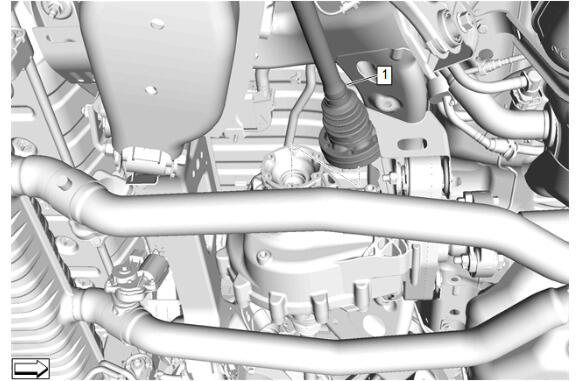

  4. GM5500907

    Reposition the rear wheel drive shaft (1) to clear the rear axle shaft.

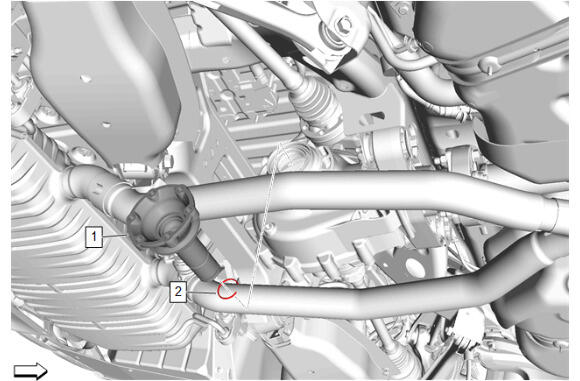

  5. GM5493613

    Using the appropriate tool, release the rear axle shaft (1) from the differential carrier.

  6. Rear Axle Shaft- Right Side (1) - Remove
  7. Rear Wheel Drive Shaft Retaining Ring (2) - Remove and DISCARD
