Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Lifting and Jacking the Vehicle
  2. GM5369078

    Clean any dirt from around the differential carrier fill plug (1).

  3. Place a suitable drain pan under the differential carrier.
  4. Differential Carrier Fill Plug (1) - Remove

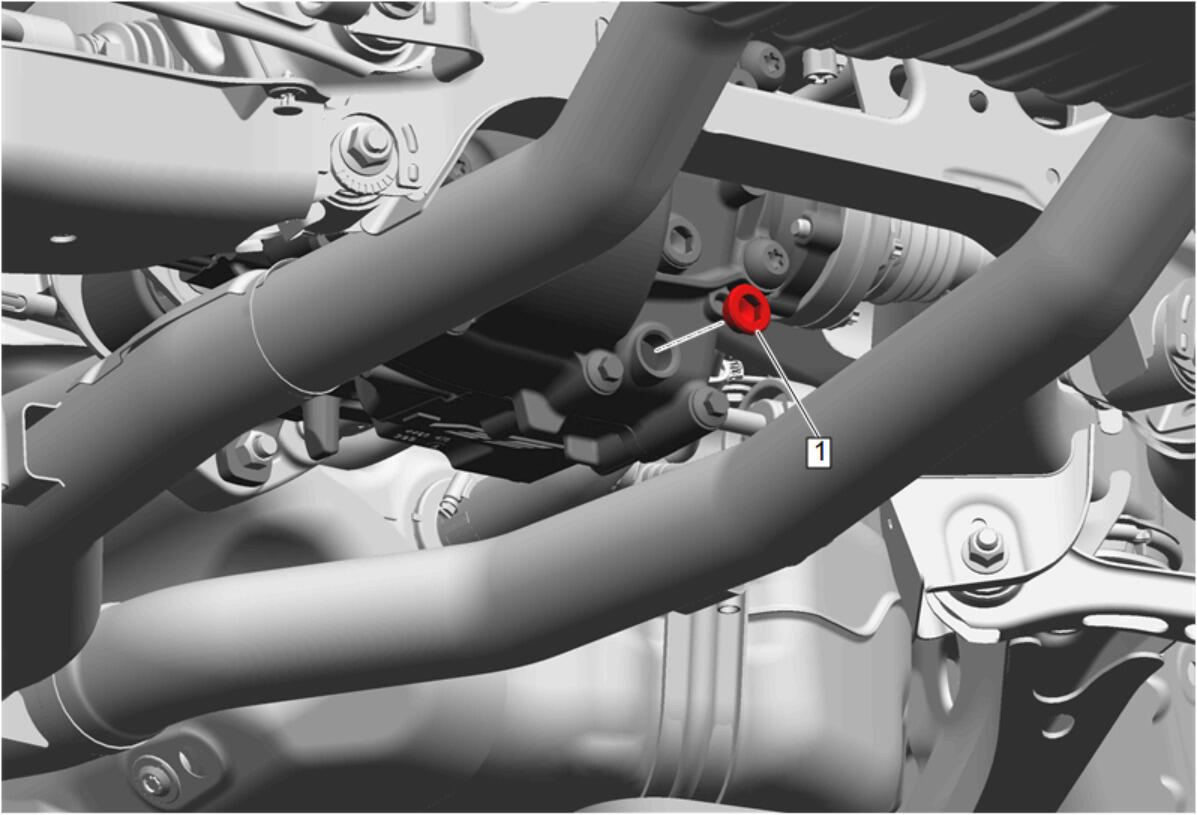

  5. GM5369079

    Clean any dirt from around the differential carrier drain plug (1).

  6. Differential Carrier Drain Plug (1) - Remove
