Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

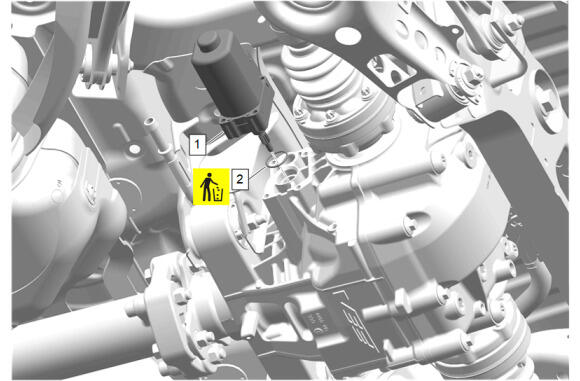

  1. GM5372715

    Limited Slip Differential Clutch Motor Seal (2) - Install NEW

  2. Limited Slip Differential Clutch Motor (1) - Install

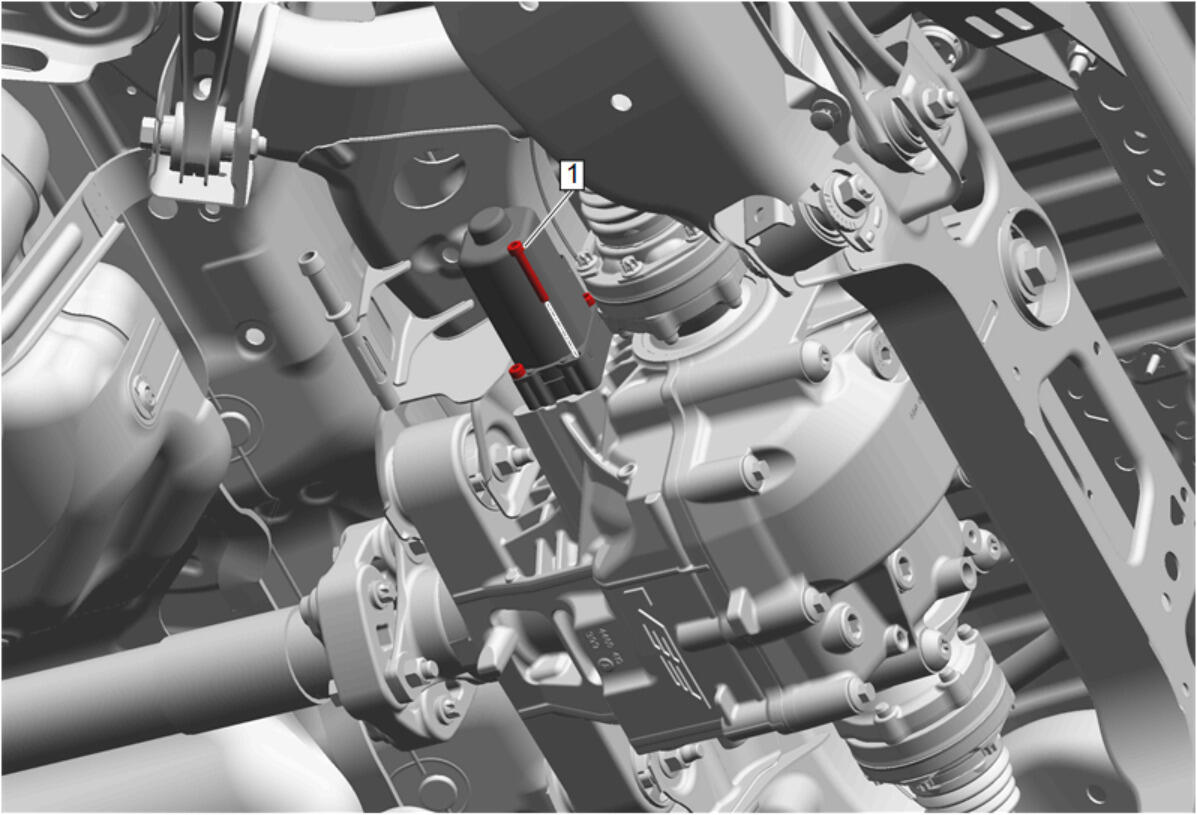

  3. GM5372714
    CAUTION:

    Refer to Fastener Caution .

    Electronic Limited Slip Differential Control Module Bolt (1) - Install and tighten [4x] - Fastener Specifications

  4. Connect the limited slip differential clutch motor electrical connector.
  5. Verify the correct fluid level: Rear Axle Lubricant Level Inspection (LSY) , or Rear Axle Lubricant Level Inspection (L3B) , or Rear Axle Lubricant Level Inspection (LF4)
  6. Remove the support and lower the vehicle.
