Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

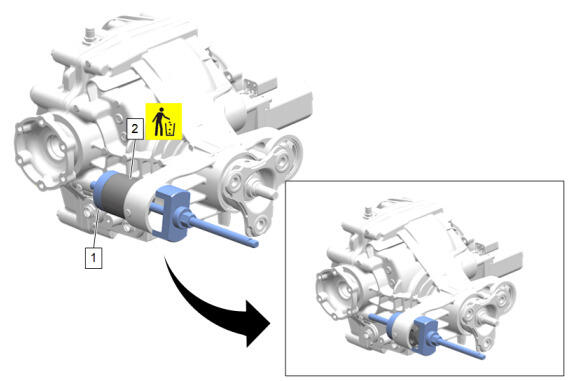

  1. GM5898337
    NOTE:

    Before installing, the bushing must be correctly aligned and oriented. Mount orientation is critical for noise and vibration performance.

    Using the DT-50806  Bushing Replacer (1), install NEW differential carrier bushing (2) into the differential carrier assembly.

  2. GM5372666

    Differential Carrier Assembly (1) - Install

  3. GM5372665

    Differential Carrier Rear Bolt (1) - Install NEW [2x]

    4. CAUTION:

    Refer to Fastener Caution .

    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  4. Differential Carrier Nut (2) - Install NEW and tighten [2x] - Fastener Specifications
  5. GM5372664
    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    Differential Carrier Rear Bolt (1) - Install NEW and tighten - Fastener Specifications

  6. Remove the jack from under the differential carrier assembly.
  7. Connect the electrical connector at the differential.
  8. GM5896793

    Install the rear wheel drive shaft (1) onto the rear axle shaft.

  9. GM5864529
    NOTE:

    The rear wheel drive shaft universal joint retainer (1) and washers (2) are serviced as a rear wheel drive shaft universal joint retainer kit consisting of 2 bolts and 1 washer.

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  10. Install 3 NEW rear wheel drive shaft flange washers (2).
    11. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  11. Install and tighten the 6 NEW rear wheel drive shaft universal joint retainers (1) in a crisscross pattern. Fastener Specifications
  12. GM5896794

    Install the rear wheel drive shaft (1) onto the rear axle shaft.

  13. GM5864760
    NOTE:

    The rear wheel drive shaft universal joint retainer (1) and washers (2) are serviced as a rear wheel drive shaft universal joint retainer kit consisting of 2 bolts and 1 washer.

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  14. Install 3 NEW rear wheel drive shaft flange washers (2).
    15. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  15. Install and tighten the 6 NEW rear wheel drive shaft universal joint retainers (1) in a crisscross pattern. Fastener Specifications
  16. GM5867503

    Install the propeller shaft (1) in the vehicle.

  17. GM5863691

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation.
  18. Install the 2 propeller shaft bearing support bolts (1) and tighten. Fastener Specifications
  19. GM5863695

    Align the reference mark (3) between the propeller shaft flange (1) and the rear axle pinion flange (2).

  20. GM5863697

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation.
  21. Install the 3 rear propeller shaft nuts (2) and 3 the rear propeller shaft bolts (1).
  22. Tighten the 3 the rear propeller shaft bolts (1). Fastener Specifications
  23. GM5867501

    Align the reference mark (2) between the propeller shaft flange (3) and the output flange (1) of the transmission.

  24. GM5867502

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation.
  25. Install the 3 front propeller shaft nuts (1) and the 3 front propeller shaft bolts (2).
  26. Tighten the 3 front propeller shaft bolts (1). Fastener Specifications
  27. GM5471168

    Floor Panel Number 2 Cross Bar Reinforcement (1) - Install

  28. Floor Panel Number 2 Cross Bar Reinforcement Bolt (2) - Install and tighten [4x] - Fastener Specifications
  29. GM5865888

    Exhaust Intermediate Underbody Heat Shield (2) - Install

  30. Exhaust Heat Shield Bolt (1) - Install and tighten [6x] - Fastener Specifications
  31. GM5893541

    Transmission Fluid Cooler Pipe (1) - Install

  32. GM5893545

    Retaining Clip (1) - Engage [2x]

  33. GM5893620

    Transmission Fluid Cooler Pipe (1) - Install

  34. GM5893615

    Retaining Clip (1) - Engage [2x]

  35. GM5893517

    Transmission Fluid Cooler Pipe Clip (2) - Install

  36. Transmission Fluid Cooler Pipe Clip (1) - Install
  37. Transmission Fluid Cooler Pipe Clip Bolt (3) - Install and tighten - Fastener Specifications
  38. GM5893516

    Transmission Fluid Cooler Pipe Bracket (2) - Install

  39. Transmission Fluid Cooler Pipe Bolt (1) - Install and tighten - Fastener Specifications
  40. GM5865329

    Catalytic Converter Gasket (2) - Install NEW

  41. With the aid of an assistant, install the exhaust muffler (1).
  42. GM5865300

    Exhaust Muffler Hanger Bracket Nut (1) - Install and tighten [4x] - Fastener Specifications

  43. GM5865293

    Electrical Connector (1) - Connect

  44. GM5865287

    Electrical Connector (1) - Connect

  45. GM5406632

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Right Side (3) - Install

  46. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Right Side (2) - Install
  47. GM5406578

    Exhaust Muffler (1) @ Exhaust Rear Muffler Insulator-Left Side (3) - Install

  48. Exhaust Muffler (1) @ Exhaust Intermediate Pipe Insulator-Left Side (2) - Install
  49. GM5865271

    Exhaust Pipe Clamp (1) - Tighten [2x]

  50. GM5865265

    Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications

  51. GM5400756

    Floor Panel Reinforcement (2) - Install

  52. Floor Panel Number 4 Cross Bar Reinforcement Bolt (1) - Install and tighten [6x] - Fastener Specifications
  53. GM5854893

    Underbody Rear Air Deflector- Left Side (5) - Install

  54. Underbody Rear Air Deflector Bolt- Left Side (4) - Install and tighten [2x] - Fastener Specifications
  55. Transmission Fluid Cooler Pipe Bracket Bolt- Left Side (3) - Install and tighten [2x] - Fastener Specifications
  56. Underbody Rear Air Deflector Nut- Left Side (2) - Install and tighten [5x] - Fastener Specifications
  57. Underbody Front Air Deflector Bolt- Left Side (1) - Install and tighten [6x] - Fastener Specifications
  58. GM5839256

    Underbody Rear Air Deflector- Right Side (5) - Install

  59. Underbody Rear Air Deflector Bolt- Right Side (4) - Install and tighten [2x] - Fastener Specifications
  60. Transmission Fluid Cooler Pipe Bracket Bolt- Right Side (3) - Install and tighten [2x] - Fastener Specifications
  61. Underbody Rear Air Deflector Nut- Right Side (2) - Install and tighten [5x] - Fastener Specifications
  62. Underbody Front Air Deflector Bolt- Right Side (1) - Install and tighten [6x] - Fastener Specifications
  63. GM5400642

    Underbody Rear Air Deflector- Right Side (5) - Install

  64. Underbody Rear Air Deflector Nut (3) - Install and tighten [3x] - Fastener Specifications
  65. Underbody Rear Air Deflector Bolt (2) - Install and tighten [3x] - Fastener Specifications
  66. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  67. Rear Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
  68. GM5471237

    Rear Tire Front Air Deflector- Right Side (1) - Install

  69. Rear Tire Front Air Deflector Bolt (2) - Install and tighten [2x] - Fastener Specifications
  70. GM5400553

    Underbody Rear Air Deflector- Left Side (5) - Install

  71. Underbody Rear Air Deflector Nut (2) - Install and tighten [3x] - Fastener Specifications
  72. Underbody Rear Air Deflector Bolt (3) - Install and tighten [3x] - Fastener Specifications
  73. Underbody Rear Air Deflector Nut (4) - Install and tighten [2x] - Fastener Specifications
  74. Rear Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
  75. GM5395705

    Rear Tire Front Air Deflector- Left Side (2) - Install

  76. Rear Tire Front Air Deflector Bolt (1) - Install and tighten [2x] - Fastener Specifications
  77. GM5893503
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Differential Carrier Drain Plug (2) - Install and tighten - Fastener Specifications

  78. Fill the differential carrier with axle lubricant.
  79. Check the differential fluid level. It should be even with the bottom of the fill plug hole to no lower than 2 mm (0.08 in) below the opening.
  80. GM5893503
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Differential Carrier Fill Plug (1) - Install and tighten - Fastener Specifications

  81. Remove the drain pan.
  82. Inspect the exhaust system for leaks.
  83. Remove the support and lower the vehicle.
  84. Check the transmission fluid level. Transmission Fluid Level and Condition Check
  85. Inspect for transmission fluid leaks. Fluid Leak Diagnosis
