Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

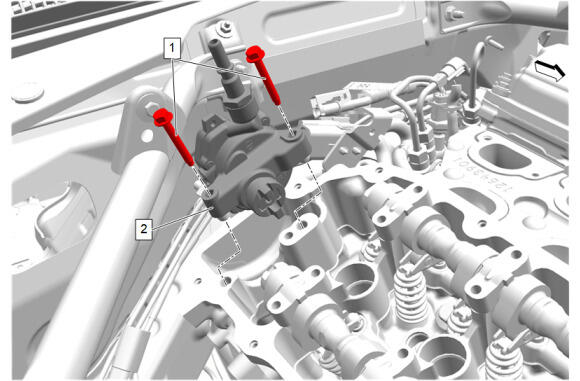

  1. GM5873294Courtesy of GENERAL MOTORS COMPANY

    Vacuum Pump (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Vacuum Pump Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. GM5873076Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Apply RTV silicone sealant on the engine front cover split lines (1). The required thickness of the sealing bead is 8 mm (0.3150 in) by 4 mm (0.1575 in). Adhesives, Fluids, Lubricants, and Sealers

  4. GM5872771Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Camshaft Cover Seal (2) - Install NEW

  5. Camshaft Cover (1) - Install
  6. GM5872769Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Camshaft Housing Cover Bolt (1) - Install and hand tighten [15x]

  7. Camshaft Housing Cover Bolt (2) - Tighten in sequence [15x] - Fastener Specifications
  8. GM5873081Courtesy of GENERAL MOTORS COMPANY

    EN-46101  Spark Plug Tube Seal Guides (1) - Remove [3x]

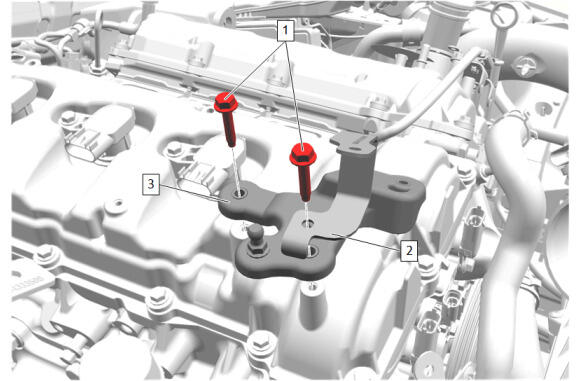

  9. GM5873077Courtesy of GENERAL MOTORS COMPANY

    Upper Intake Manifold Bracket (3) - Install

  10. Radiator Surge Tank Inlet Pipe Bracket (2) - Install
  11. Upper Intake Manifold Cover Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  12. GM5872767Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Engine Wiring Harness (3) - Install

  13. Engine Wiring Harness Retainer (1) - Install [5x]
  14. GM5861118Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Inlet Hose (4) - Install

  15. Radiator Surge Tank Inlet Hose Clip (3) @ Radiator Surge Tank Inlet Pipe Bracket - Connect
  16. GM5860355Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Install

  17. GM5860354Courtesy of GENERAL MOTORS COMPANY

    Retainer Spring (4) - Engage

  18. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  19. Charge Air Bypass Valve Hose (2) - Install
  20. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  21. GM5854948Courtesy of GENERAL MOTORS COMPANY

    Install the NEW positive crank ventilation foul air tube (2) and secure the 2 positive crankcase ventilation tube connectors (1).

  22. GM5864683Courtesy of GENERAL MOTORS COMPANY

    Lower Intake Manifold Gasket (2) - Install NEW [6x]

  23. Intake Manifold (1) - Install
  24. GM5864681Courtesy of GENERAL MOTORS COMPANY

    If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:

    1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
    2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  25. Lower Intake Manifold Bolt (1) - Install and hand tighten [6x]
  26. Lower Intake Manifold Bolt (1) - Tighten in sequence [6x] - Fastener Specifications
  27. Connect all electrical connectors.
  28. GM5862841Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Positive Crankcase Ventilation Foul Air Tube (2) - Install

  29. Positive Crankcase Ventilation Tube Connector (1) - Connect [2x] - Plastic Collar Quick Connect Fitting Service
  30. GM4044075Courtesy of GENERAL MOTORS COMPANY

    Fuel Pipe Shield (1) - Install

  31. GM5869276Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness (3) - Install

  32. Retainer (2) - Install [3x]
  33. Engine Rear Noise Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications
  34. GM4044046Courtesy of GENERAL MOTORS COMPANY

    Engine Rear Noise Shield Bolt (1) - Install and tighten - Fastener Specifications

  35. GM5862663Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Charge Air Cooler Cover Seal (3) - Install NEW [2x]

  36. Intake Manifold Gasket (2) - Install NEW
  37. Charge Air Cooler Cover (1) - Install
  38. GM5862662Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Charge Air Cooler Cover Bolt (2) - Install and hand tighten [12x]

  39. Charge Air Cooler Cover Bolt (2) - Tighten in sequence [12x] - Fastener Specifications
  40. Charge Air Cooler Bolt (1) - Install and hand tighten [2x]
  41. Charge Air Cooler Bolt (1) - Tighten in sequence [2x] - Fastener Specifications
  42. Connect the electrical connector.
  43. GM5840540Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Tube Seal (4) - Install NEW

  44. Charge Air Cooler Inlet Pipe (3) - Install
  45. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  46. Charge Air Cooler Inlet Air Tube Bolt (1) - Install and tighten [2x] - Fastener Specifications
  47. GM4182652Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve (3) - Install

  48. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  49. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  50. GM5840576Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Tube Seal (4) - Install NEW

  51. Charge Air Cooler Inlet Pipe (3) - Install
  52. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  53. Charge Air Cooler Inlet Air Tube Bolt (1) - Install and tighten [2x] - Fastener Specifications
  54. GM4182819Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve (3) - Install

  55. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  56. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  57. GM5871751Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Coolant Pipe Seal (3) - Install NEW [4x]

  58. Supercharger Water Manifold Gasket (2) - Install NEW [2x]
  59. Supercharger Water Manifold (1) - Install
  60. GM5871741Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Coolant Manifold Bolt (1) - Install and tighten [4x] - Fastener Specifications

  61. GM5871728Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Coolant Hose (4) - Install

  62. Charge Air Cooler Coolant Hose Clamp (3) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  63. Charge Air Cooler Coolant Hose (2) - Install
  64. Charge Air Cooler Coolant Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  65. GM4057738Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank (2) - Install

  66. Turbocharger Wastegate Actuator Vacuum Tank Bolt (1) - Install and tighten [2x] - Fastener Specifications
  67. GM4057709Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Connect

  68. GM4057618Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Connect - Plastic Collar Quick Connect Fitting Service

  69. GM4057453Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Connect

  70. GM4057385Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Connect - Plastic Collar Quick Connect Fitting Service

  71. GM4057362Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Source Tube @ Vacuum Pump - Connect - Plastic Collar Quick Connect Fitting Service

  72. GM4052248Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Vacuum Tank Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service

  73. GM5839308Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (3) @ Auxiliary Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service

  74. GM5839386Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Install and tighten [2x] - Fastener Specifications

  75. Connect the turbocharger wastegate regulator solenoid valve electrical connector.
  76. GM5839336Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Install and tighten [2x] - Fastener Specifications

  77. Connect the turbocharger wastegate regulator solenoid valve electrical connector.
  78. GM5842421Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (1) - Install

  79. Evaporative Emission Canister Purge Tube (1) - Connect [2x] - Plastic Collar Quick Connect Fitting Service
  80. GM5839283Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap - Remove

  81. Intake Manifold Cover (2) - Install
  82. Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
  83. Oil Filler Cap - Install
  84. Fill the charge air cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  85. GM5872932Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Diagonal Brace- Right Side (3) - Install

  86. Front End Sheet Metal Cross Brace Bolt- Right Side (1) - Install and tighten Fastener Specifications
  87. Front End Sheet Metal Diagonal Brace Nut- Right Side (1) - Install and tighten Fastener Specifications
  88. GM5839407Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Cross Brace- Right Side (3) - Install

  89. Install the engine wire harness retainers to the front end sheet metal cross brace.
  90. Front Suspension Strut Upper Mounting Nut- Right Side (2) - Install and tighten [2x] Fastener Specifications
  91. Front End Sheet Metal Cross Brace Bolt- Right Side (1) - Install and tighten [3x] Fastener Specifications
  92. GM5864524Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle (3) - Install

  93. Radiator Air Upper Baffle Bolt (2) - Install and tighten [2x] Fastener Specifications
  94. Radiator Air Upper Baffle Retainer (1) - Install [5x]
  95. GM5865881Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel (1) - Install

  96. GM5865879Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications

  97. Plenum Front Panel Nut (2) - Install and tighten [3x]

    - Fastener Specifications

  98. GM5422039Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Nut (1) - Install and tighten [3x] - Fastener Specifications

  99. Plenum Front Panel Bolt (2) - Install and tighten [3x] - Fastener Specifications
  100. Install the forward lamp wiring harness extension (3) into the plenum front panel.
  101. Connect the electrical connector.
  102. GM5499583Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector (1) - Install

  103. GM5499581Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Deflector Water Deflector Retainer (1) - Install [2x]

  104. GM5420344Courtesy of GENERAL MOTORS COMPANY

    Install the windshield wiper system module (2) in the vehicle.

  105. Windshield Wiper System Module Bolt (1) - Install and tighten [2x] Fastener Specifications
  106. Connect the windshield wiper motor electrical connector.
  107. Connect the battery negative cable. - Battery Negative Cable Disconnection and Connection
  108. GM5420286Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper System Module Shield (1) - Install

  109. GM5417442Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Grille Panel (2) - Install

  110. Install the air inlet grille panel (2) between both hood hinges.
  111. Connect the windshield washer nozzle hose to the windshield washer pump hose.
  112. Air Inlet Grille Panel Retainer (1) - Install [6x]
  113. GM5862927Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Compartment Side Sight Shield- Left Side and Right Side (2) - Install [2x]

  114. Front Compartment Side Sight Shield Retainer- Left Side and Right Side (1) - Install [6x]
  115. GM5865291Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Air Inlet Grille Panel Extension- Left Side and Right Side (2) - Install [2x]

  116. Air Inlet Grille Panel Retainer- Left Side and Right Side (1) - Install [4x]
  117. GM5421986Courtesy of GENERAL MOTORS COMPANY

    Install the 2 hood rear outer air inlet seal (2) to the left and right side.

  118. Install the 4 hood rear outer air inlet seal retainer (1) to the left and right side.
  119. GM5417116Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Air Inlet Grille Panel Extension- Left Side and Right Side (1) - Install [2x]

  120. Remove the masking tape from the top edge of the left and right side service parts.
  121. Using a 50/50 mixture of isopropyl alcohol and clean drinkable water with a clean towel, remove any left over adhesive residue from the masking tape.
  122. Install the 2 left and right side air inlet grille panel extension (1).
  123. GM5325063Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Windshield Wiper Arm- Left Side and Right Side (3) - Install [2x]

  124. Clean the left and right side windshield wiper transmission pivot shaft splines with a soft wire brush before installing the windshield wiper arm (3).
  125. Windshield Wiper Arm Nut- Left Side and Right Side (2) - Install and tighten [2x] - Fastener Specifications
  126. Position the left and right side windshield wiper arm (3) on the windshield wiper transmission pivot shaft.
  127. Windshield Wiper Arm Finish Cap- Left Side and Right Side (1) - Install [2x]
  128. GM5416557Courtesy of GENERAL MOTORS COMPANY

    If required, realign the left side and right side windshield wipers to their respective alignment circles (1) on the windshield.

  129. Lubricate the windshield with clean washer fluid.
  130. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  131. Ensure the windshield wipers are in the full park position.
  132. Inspect the windshield wipers for proper position to the alignment circles (1) on the windshield.
scientia non olet · About LEMON Manuals
