Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

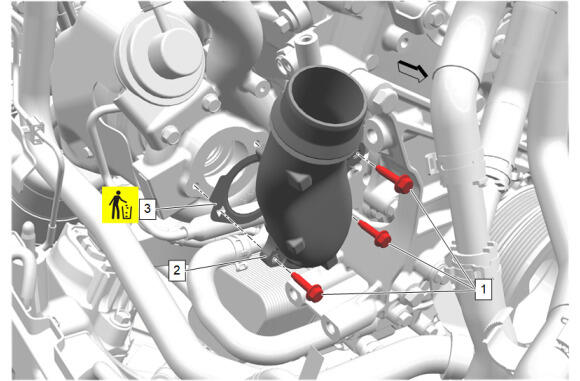

  1. GM5875620Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Air Inlet Adapter Seal (3) - Install NEW

  2. Turbocharger Air Inlet Adapter (2) - Install
    3. CAUTION:

    Refer to Fastener Caution

  3. Turbocharger Air Inlet Adapter Bolt (1) - Install and tighten [3X] - Fastener Specifications
  4. GM4277485Courtesy of GENERAL MOTORS COMPANY

    Generator (2) - Install

  5. Generator Bolt (1) - Install and tighten [3X] - Fastener Specifications
  6. GM5880573Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (4) - Connect

  7. Starter Solenoid Cable (3) - Install
  8. Engine Wiring Harness Generator Lead Nut (2) - Install and tighten - Fastener Specifications
  9. Protective Cap (1) - Install
  10. GM5863684Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Water Pump (2) - Install

  11. Charge Air Cooler Front Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
  12. GM5863683Courtesy of GENERAL MOTORS COMPANY

    Position the engine wiring harness (3) into place.

  13. Engine Wiring Harness Retainer (1) @ Charge Air Cooler Coolant Pump Relay Bracket - Install
  14. Electrical Connector (2) @ Auxiliary Water Pump - Connect
  15. GM5862849Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Radiator Inlet Pipe (2) @ Auxiliary Water Pump - Install

  16. Heater Outlet Hose Clamp - (1) Engage - Hose Clamp Replacement Guidelines - Spring Type
  17. GM5854977Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Coolant Hose (2) @ Auxiliary Water Pump - Install

  18. Charge Air Cooler Coolant Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  19. GM5854879Courtesy of GENERAL MOTORS COMPANY

    Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise, then hold tension.

  20. Install the accessory drive primary belt (2) onto the last idler pulley. Check to ensure that the drive belt is centered on each pulley, and fully seated into ribbed pulleys.
  21. Slowly release tension from the drive belt tensioner (1).
  22. Inspect the accessory drive primary belt (2) again to ensure centered on each pulley.
  23. GM5873812Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Coolant Return Pipe (3) - Install

  24. Turbocharger Coolant Feed and Return Pipe Gasket (2) - Install NEW [2x]
  25. Turbocharger Coolant Feed and Return Pipe Bolt (1) - Install and tighten - Fastener Specifications
  26. GM5873832Courtesy of GENERAL MOTORS COMPANY

    Retaining Clip (1) - Install

  27. GM5876059Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield (1) - Install

  28. GM5873866Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Heat Shield Bolt (1) - Install and tighten [3x] - Fastener Specifications

  29. GM5875573Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Pipe Seal (2) - Install NEW

  30. Radiator Outlet Pipe (1) - Install
  31. GM5875557Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Pipe Bolt (2) - Install and tighten - Fastener Specifications

  32. Radiator Outlet Pipe Bolt (1) - Install and tighten - Fastener Specifications
  33. GM5875536Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install [2x]

  34. GM5875715Courtesy of GENERAL MOTORS COMPANY

    Heater Outlet Hose (4) @ Auxiliary Heater Inlet Hose Tee - Install

  35. Heater Outlet Hose Clamp (3) @ Auxiliary Heater Inlet Hose Tee - Engage - Hose Clamp Replacement Guidelines - Spring Type
  36. Heater Inlet Hose (2) @ Heater Core - Install
  37. Heater Inlet Hose Retainer (1) - Engage
  38. GM5875514Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Pipe Bolt (1) - Install and tighten - Fastener Specifications

  39. GM5875503Courtesy of GENERAL MOTORS COMPANY

    Radiator Outlet Hose (2) @ Radiator Outlet Pipe - Install

  40. Radiator Outlet Hose Clamp (1) @ Radiator Outlet Pipe - Engage - Hose Clamp Replacement Guidelines - Spring Type
  41. GM5860355Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) @ Turbocharger Air Inlet Adapter - Install

  42. GM5860354Courtesy of GENERAL MOTORS COMPANY

    Retainer Spring (4) - Engage

  43. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  44. Charge Air Bypass Valve Hose (2) - Install
  45. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  46. GM5854948Courtesy of GENERAL MOTORS COMPANY

    Install the NEW positive crankcase ventilation foul air tube (2) and secure the 2 positive crankcase ventilation tube connectors (1).

  47. GM5854972Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Source Tube (2) - Install

  48. Turbocharger Wastegate Actuator Vacuum Source Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
  49. Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  50. GM5845622Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Vacuum Tank Tube (2) - Install

  51. Charge Air Bypass Valve Vacuum Tank Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
  52. Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
  53. GM5862960Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (2) - Install

  54. Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
  55. Install all retainers and wiring harnesses to the air cleaner assembly as necessary.
  56. Connect the 2 mass airflow sensor electrical connectors.
  57. GM5864667Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Air Cleaner Outlet Duct (4) - Install

  58. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  59. Air Cleaner Outlet Duct (2) - Install
  60. Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
  61. GM5839407Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Cross Brace- Left Side and Right Side (3) - Install [2x]

  62. Front Suspension Strut Upper Mounting Nut- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
  63. Front End Sheet Metal Cross Brace Bolt- Left Side and Right Side (1) - Install and tighten [6x] - Fastener Specifications
  64. Install all wiring harness retainers to the front end sheet metal cross braces.
  65. GM5864524Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle- Upper (3) - Install

  66. Radiator Air Upper Baffle Bolt (2) - Install and tighten [2x] - Fastener Specifications
  67. Radiator Air Upper Baffle Retainer (1) - Install [5x]
  68. GM5839233Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Module (1) @ Engine Control Module Bracket (2) - Install

  69. Engine Control Module Bracket (2) - Install
  70. GM5839232Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications

  71. GM5839234Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) - Install

  72. Connect the electrical connectors.
  73. GM5861123Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Outlet Pipe (3) - Install

  74. Radiator Surge Tank Inlet Hose Clamp (4) @ Engine Radiator - Engage - Hose Clamp Replacement Guidelines - Spring Type
  75. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Control Module Bracket - Install
  76. Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Inlet Hose - Engage - Hose Clamp Replacement Guidelines - Spring Type
  77. GM5839283Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap - Remove

  78. Intake Manifold Cover (2) - Install
  79. Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
  80. Oil Filler Cap - Install
  81. Fill the cooling system to the proper level. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  82. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
  83. Start the engine and check for coolant leaks.
