Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rear Wheelhouse Liner-Right Side - Remove - Rear Wheelhouse Liner Replacement
  2. GM5840059Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Air Inlet Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  3. Fuel Tank Vent Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  4. Evaporative Emission Canister Purge Hose (3) - Disconnect - Plastic Collar Quick Connect Fitting Service

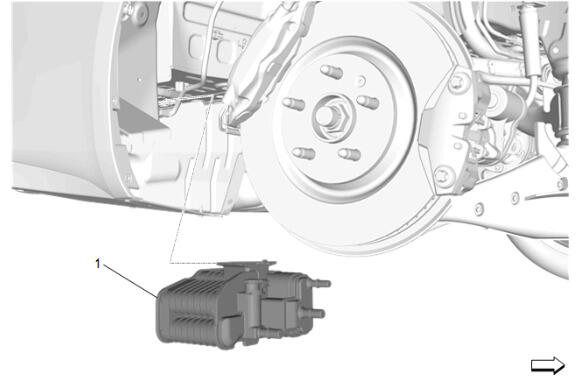

  5. GM5840061Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

    6. NOTE:

    Release retaining tab to remove evaporative emission canister.

  6. Evaporative Emission Canister (1) - Remove
