Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- NOTE:
Left side shown, right side similar.
Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Remove [4x]
- Front Compartment Air Deflector Retainer- Left Side and Right Side (2) - Remove [2x]
- Front Bumper Fascia Lower Stiffener Bolt- Left Side and Right Side (3) - Remove [6x]
- NOTE:
Left side shown, right side similar.
Front Compartment Air Deflector- Left Side and Right Side (1) - Remove [2x]
Front Bumper Fascia Air Deflector Bolt (1) - Remove [4x]
- Front Bumper Fascia Air Deflector Retainer (2) - Remove
- Support the front cradle shear plate using a suitable jack.
Front Cradle Shear Plate Bolt (1) - Remove [4x]
- Front Cradle Shear Plate Nut (2) - Remove [2x]
- Front Crossmember Brace Bolt (3) - Remove [8x]
Front Wheelhouse Liner Bolt (1) - Remove [2x]
Position the left and right side wheelhouse liners (1) away from the front cradle sheer plate (2).
- Remove the front cradle sheer plate (2) from between the front bumper fascia center air deflector and the driveline and front suspension cradle and lower it from the vehicle.

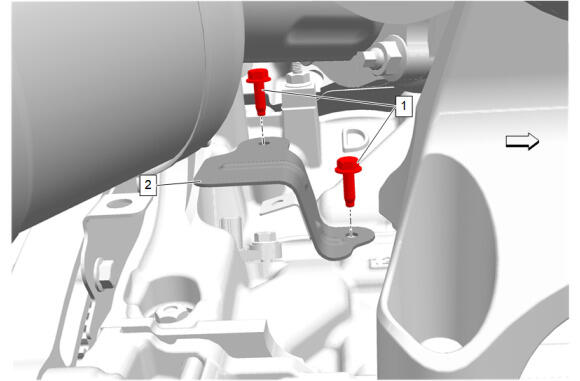

Crankshaft Position Sensor Shield Bolt (1) - Remove [2x]
- Crankshaft Position Sensor Shield (2) - Remove
Disconnect the crankshaft position sensor electrical connector.

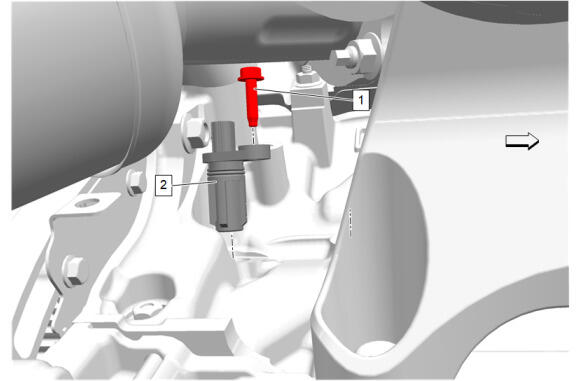

- Crankshaft Position Sensor Bolt (1) - Remove
- Crankshaft Position Sensor (2) - Remove
