Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

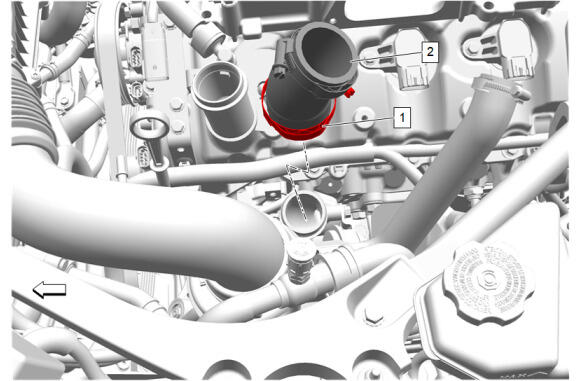

  1. GM5842846Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Hose (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Charge Air Cooler Inlet Air Hose Clamp (1) - Tighten - Fastener Specifications
  3. GM5840576Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Air Tube Seal (4) - Install NEW

  4. Charge Air Cooler Inlet Pipe (3) - Install
  5. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  6. Charge Air Cooler Inlet Air Tube Bolt (1) - Install and tighten [2x] - Fastener Specifications
  7. GM4182819Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve (3) - Install

  8. Charge Air Bypass Valve Tube Connector Clamp (2) - Tighten - Fastener Specifications
  9. Charge Air Bypass Valve Hose Clamp (1) - Tighten - Fastener Specifications
  10. GM4057738Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank (2) - Install

  11. Turbocharger Wastegate Actuator Vacuum Tank Bolt (1) - Install and tighten [2x] - Fastener Specifications
  12. GM4057709Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Connect

  13. GM4057618Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Connect - Plastic Collar Quick Connect Fitting Service

  14. GM4057544Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Source Tube (1) @ Retainer (2) - Install

  15. GM4057499Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Source Tube (1) @ Retainer (2) - Install

  16. GM4057453Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Charge Air Bypass Valve (2) - Connect

  17. GM4057385Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Tube (1) @ Charge Air Bypass Valve - Connect - Plastic Collar Quick Connect Fitting Service

  18. GM4057362Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Source Tube @ Camshaft Cover - Connect - Plastic Collar Quick Connect Fitting Service

  19. GM4052392Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Vacuum Tank Tube (1) - Install

  20. GM4052272Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Vacuum Tank Tube (3) - Install

  21. Clamp (1) @ Charge Air Bypass Valve Vacuum Tank Tube (3) - Engage - Hose Clamp Replacement Guidelines - Spring Type
  22. Retainer (2) @ Charge Air Bypass Valve Vacuum Tank Tube (3) - Engage [2x]
  23. GM5839674Courtesy of GENERAL MOTORS COMPANY

    Retainer (3) - Engage

  24. Charge Air Bypass Valve Vacuum Tank Tube (2) - Install
  25. Engage the charge air bypass valve vacuum tank tube clamp (1). Hose Clamp Replacement Guidelines - Spring Type
  26. GM4052248Courtesy of GENERAL MOTORS COMPANY

    Charge Air Bypass Valve Vacuum Tank Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service

  27. Retainer (2) @ Charge Air Bypass Valve Vacuum Tank Tube (1) - Engage
  28. GM5839308Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (4) - Install

  29. Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (3) @ Auxiliary Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service
  30. Retainer (2) - Engage
  31. GM5839389Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Regulator Solenoid Valve (1) - Install

  32. Charge Air Bypass Valve Vacuum Source Tube (2) @ Turbocharger Wastegate Regulator Solenoid Valve (1) - Connect
  33. GM5839386Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Install and tighten [2x] - Fastener Specifications

  34. Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (2) @ Turbocharger Wastegate Regulator Solenoid Valve - Connect [2x]
  35. Engage the 2 turbocharger wastegate actuator vacuum source tube clamps (1). Hose Clamp Replacement Guidelines - Spring Type
  36. Connect the turbocharger wastegate regulator solenoid valve electrical connector.
  37. GM5839337Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Regulator Solenoid Valve (1) - Install

  38. Charge Air Bypass Valve Vacuum Source Tube (2) @ Turbocharger Wastegate Regulator Solenoid Valve (1) - Connect
  39. GM5839336Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Tank Bolt (3) - Install and tighten [2x] - Fastener Specifications

  40. Turbocharger Wastegate Actuator Vacuum Tank Solenoid Valve Tube (2) @ Turbocharger Wastegate Regulator Solenoid Valve - Connect [2x]
  41. Engage the 2 turbocharger wastegate actuator vacuum source tube clamps (1). Hose Clamp Replacement Guidelines - Spring Type
  42. Connect the turbocharger wastegate regulator solenoid valve electrical connector.
  43. GM4051157Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Source Tube (3) @ Turbocharger Wastegate Actuator Vacuum Tank - Install

  44. Retainer (2) - Engage
  45. Engage the 2 turbocharger wastegate actuator vacuum source tube clamps (1). Hose Clamp Replacement Guidelines - Spring Type
  46. GM5839283Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Cap - Remove

  47. Intake Manifold Cover (2) - Install
  48. Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
  49. Oil Filler Cap - Install
