Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

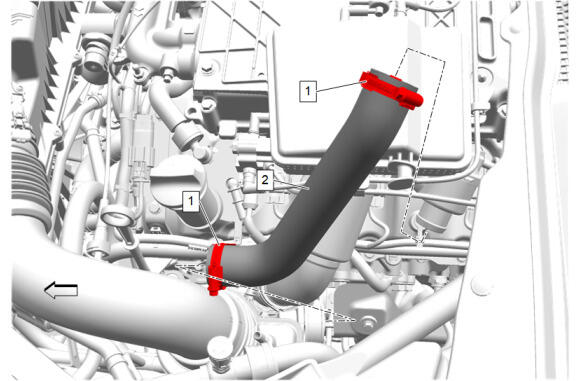

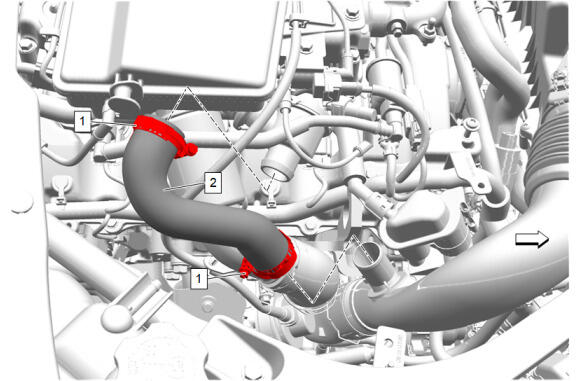

Charge Air Bypass Valve Hose (2) - Install
- Charge Air Bypass Valve Hose Clamp (1) - Tighten [2x] - Fastener Specifications
Oil Filler Cap - Remove
- Intake Manifold Cover (2) - Install
- Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
- Oil Filler Cap - Install
CAUTION:
Refer to Fastener Caution .
