Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

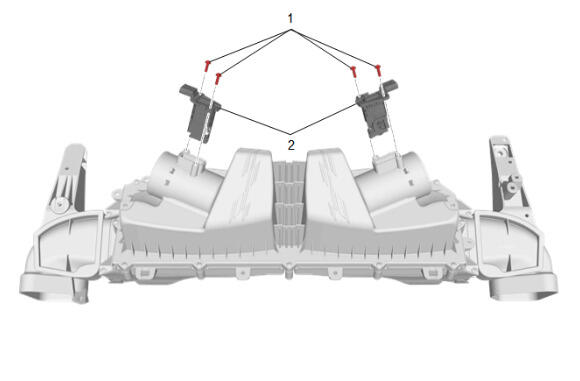

  1. GM5862957Courtesy of GENERAL MOTORS COMPANY

    Mass Airflow Sensor (2) - Install [2x]

    2. CAUTION:

    Refer to Fastener Caution .

  2. Mass Airflow Sensor Bolt (1) - Install and tighten [4x] - Fastener Specifications
  3. GM5862960Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (2) - Install

  4. Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications
  5. Install all retainers and wiring harnesses to the air cleaner assembly as necessary.
  6. Connect the 2 mass airflow sensor electrical connectors.
  7. GM5864667Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Air Cleaner Outlet Duct (4) - Install

  8. Air Cleaner Outlet Duct Clamp (3) - Tighten - Fastener Specifications
  9. Air Cleaner Outlet Duct (2) - Install
  10. Air Cleaner Outlet Duct Clamp (1) - Tighten - Fastener Specifications
  11. GM5839407Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Cross Brace- Left Side and Right Side (3) - Install [2x]

  12. Front Suspension Strut Upper Mounting Nut- Left Side and Right Side (2) - Install and tighten [4x] - Fastener Specifications
  13. Front End Sheet Metal Cross Brace Bolt- Left Side and Right Side (1) - Install and tighten [6x] - Fastener Specifications
  14. Install all wiring harness retainers to the front end sheet metal cross braces.
  15. GM5864524Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle- Upper (3) - Install

  16. Radiator Air Upper Baffle Bolt (2) - Install and tighten [2x] - Fastener Specifications
  17. Radiator Air Upper Baffle Retainer (1) - Install [5x]
  18. GM5839233Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Module (1) @ Engine Control Module Bracket (2) - Install

  19. Engine Control Module Bracket (2) - Install
  20. GM5839232Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket Bolt (1) - Install and tighten [3x] - Fastener Specifications

  21. GM5839234Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) - Install

  22. Connect the electrical connectors.
  23. GM5861123Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank Outlet Pipe (3) - Install

  24. Radiator Surge Tank Inlet Hose Clamp (4) @ Engine Radiator - Engage - Hose Clamp Replacement Guidelines - Spring Type
  25. Radiator Surge Tank Inlet Hose Clip (2) @ Engine Control Module Bracket - Install
  26. Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Inlet Hose - Engage - Hose Clamp Replacement Guidelines - Spring Type
  27. Fill the cooling system to the proper level. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (L3B Static Fill) , or Cooling System Draining and Filling (L3B GE 47716) , or Cooling System Draining and Filling (LSY with V03 GE 47716) , or Cooling System Draining and Filling (LF4 Static Fill) , or Cooling System Draining and Filling (LF4 GE 47716)
  28. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
  29. Start the engine and check for coolant leaks.
