Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

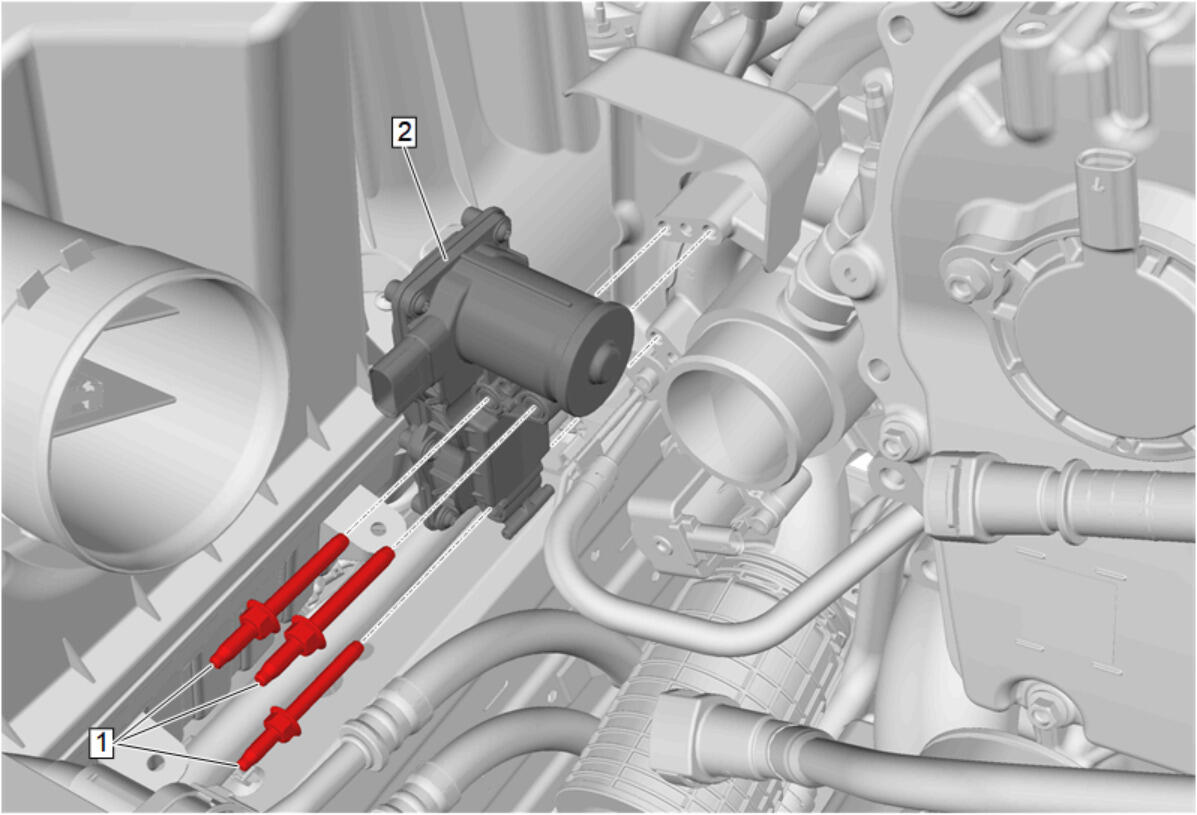

GM5399135
  1. Turbocharger Wastegate Actuator (2) - Install
  2. Connect the electrical connector.
  3. CAUTION:

    Refer to Fastener Caution .

  4. Turbocharger Wastegate Actuator Bolt (1) - Install and tighten [3x] - Fastener Specifications
  5. GM5399132

    Compressor Air Intake Turbocharger Wastegate Actuator Rod (3) - Install

  6. Compressor Air Intake Turbocharger Wastegate Actuator Link Clip (2) - Install
  7. Compressor Air Intake Turbocharger Wastegate Actuator Link Spring (1) - Install
  8. GM5399128

    Compressor Air Intake Turbocharger Wastegate Valve Link Spring (3) - Install

  9. Compressor Air Intake Turbocharger Wastegate Actuator Rod (2) - Install
  10. Compressor Air Intake Turbocharger Wastegate Actuator Link Clip (1) - Install
  11. GM5395459

    Turbocharger Heat Shield (1) - Install

  12. GM5395458

    Turbocharger Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications

  13. GM5395457

    Turbocharger Heat Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications

  14. GM5399121
    NOTE:

    A special anti-seize compound is used on the heated oxygen sensor threads. The compound consists of liquid graphite and glass beads. The graphite will burn away, but the glass beads will remain, making the sensor easier to remove. New or service sensors will have the compound already applied to the threads. IF a sensor is removed and is to be reinstalled, the threads MUST have an anti-seize compound applied before installation. Adhesives, Fluids, Lubricants, and Sealers

    Using the EN-6179  Heated Oxygen Sensor Remover/Installer, install the heated oxygen sensor (1). Fastener Specifications

  15. Connect the electrical connector.
  16. GM5399073

    Air Cleaner Assembly (1) - Install

  17. GM5399053

    Air Cleaner Bolt (1) - Install and tighten - Fastener Specifications

  18. Connect the electrical connector and install all wiring harnesses to the air cleaner assembly.
  19. GM5398967

    Air Cleaner Outlet Duct (1) - Install

  20. Connect the electrical connector.
  21. GM5398955

    Positive Crankcase Ventilation Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service

  22. Evaporative Emission Canister Purge Tube (2) - Connect - Plastic Collar Quick Connect Fitting Service
  23. Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Fastener Specifications
  24. GM5432174

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  25. GM5432171

    Push down on the front of the intake manifold cover (2).

  26. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  27. Install the oil fill cap.
  28. If replacing with new, perform the turbocharger wastegate learn. Turbocharger Wastegate Learn
