Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil fill cap.
  2. GM5432171

    Intake Manifold Cover Bolt (1) - Remove [2x]

  3. Lift up on the front of the intake manifold cover (2).
  4. GM5432174

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

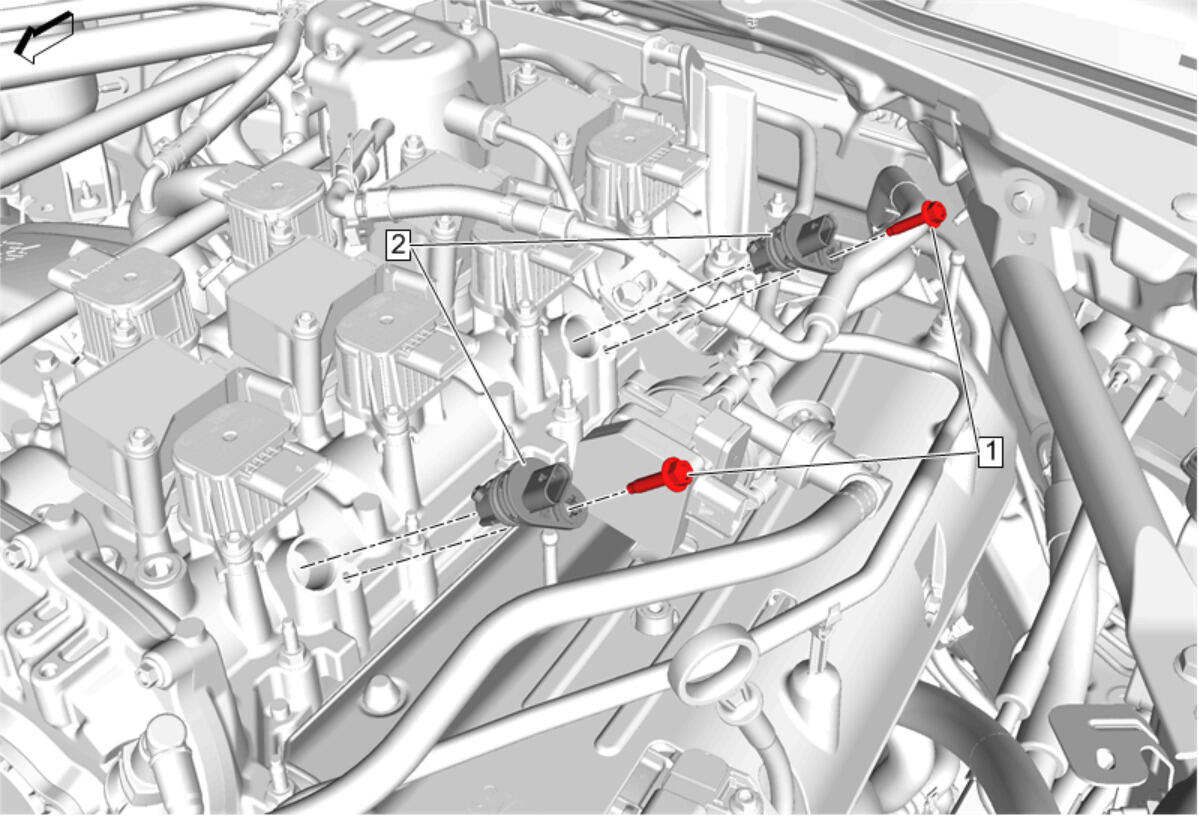

  5. GM5395520
    NOTE:

    Only replace the faulty camshaft intake lobe sensor.

    Disconnect the camshaft intake lobe sensor electrical connector.

  6. Camshaft Intake Lobe Sensor Bolt (1) - Remove
  7. Camshaft Intake Lobe Sensor (2) - Remove
