Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

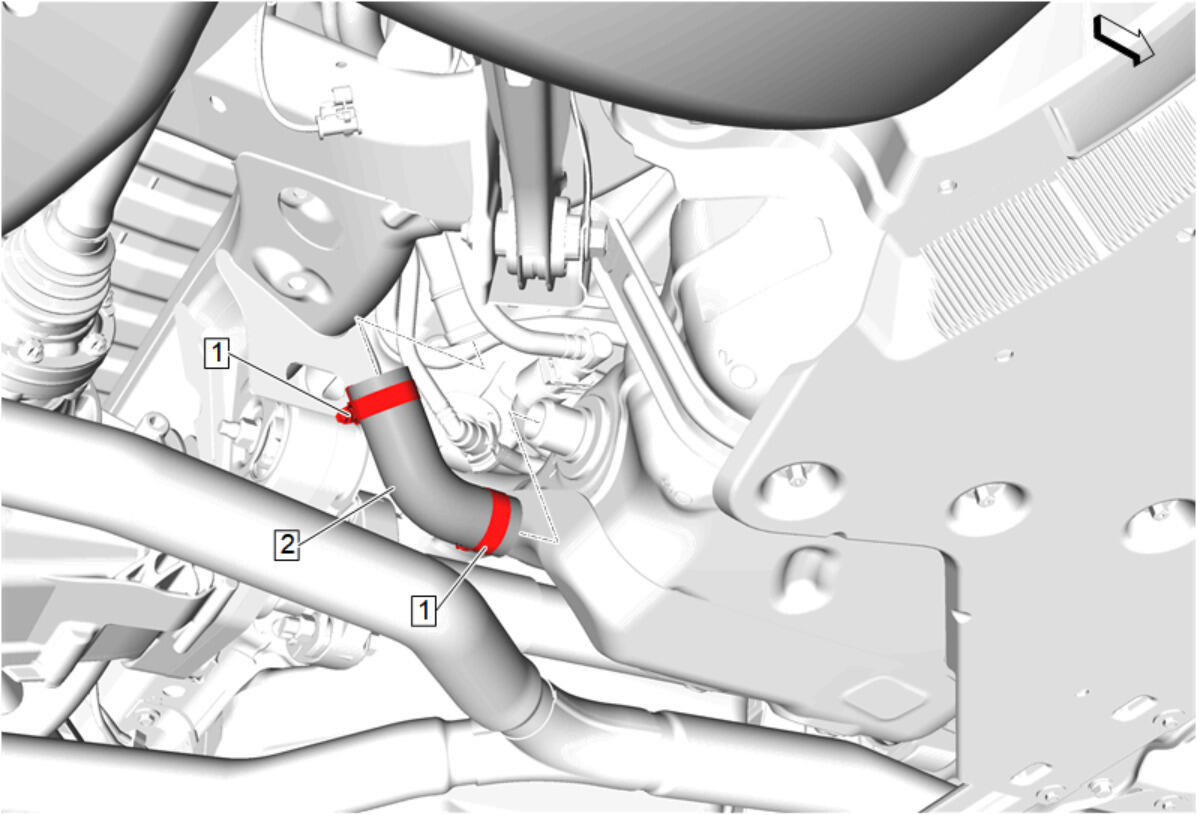

  1. GM5403398

    Fuel Tank Filler Hose (2) - Install

    CAUTION:

    Refer to Fastener Caution .

  2. Fuel Tank Filler Hose Clamp (1) - Install and tighten [2x] - Fastener Specifications
  3. Lower the vehicle.
