Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5129475

    Fuel Feed Pipe (1) - Install - Metal Collar Quick Connect Fitting Service

  2. GM5129466
    CAUTION:

    Fastener Caution

    Fuel Feed Pipe Bolt (1) - Install and tighten - Fastener Specifications

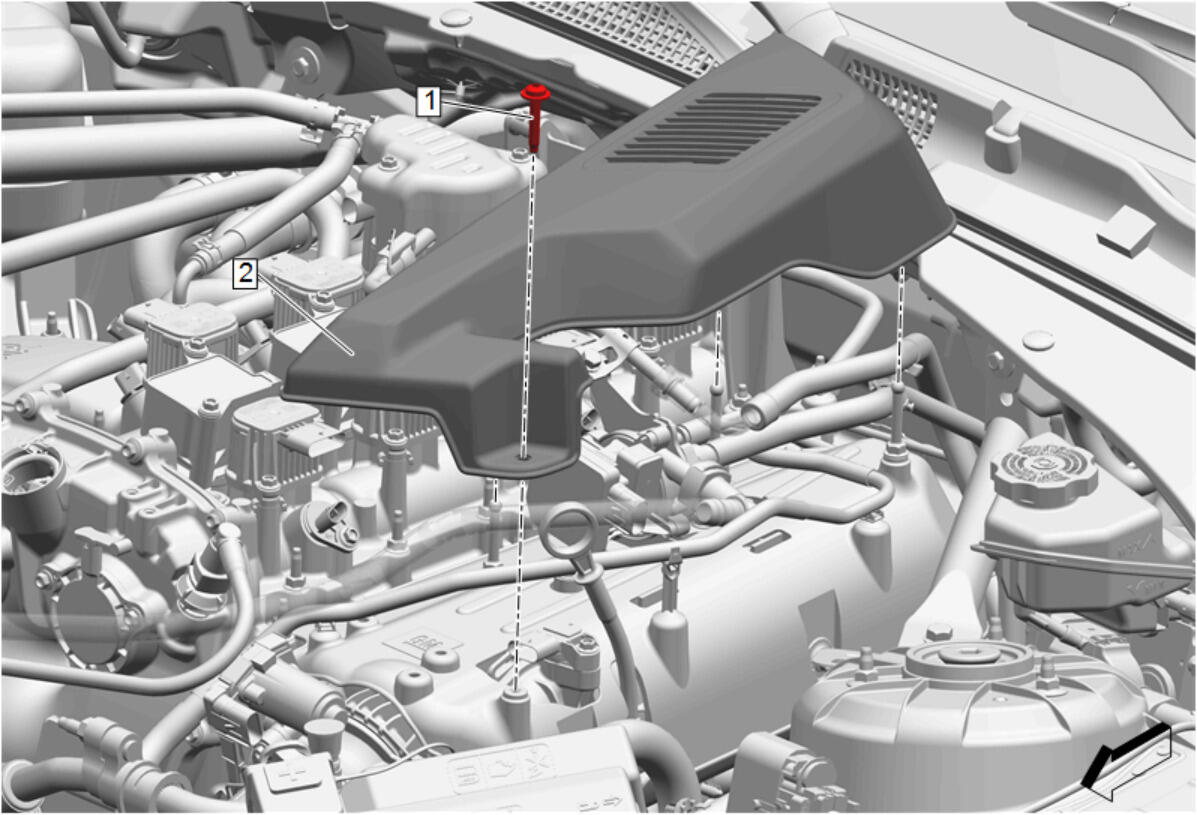

  3. GM5404330

    Intake Manifold Cover Insulator (2) - Install

  4. Intake Manifold Cover Bolt (1) - Install and tighten - Fastener Specifications
  5. GM5432174

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install

  6. GM5432171

    Push down on the front of the intake manifold cover (2).

  7. Intake Manifold Cover Bolt (1) - Install and tighten [2x] - Fastener Specifications
  8. Install the oil fill cap.
  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
  10. Pressurize the fuel system and inspect for leaks.
