Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil fill cap.
  2. GM5432171

    Intake Manifold Cover Bolt (1) - Remove [2x]

  3. Lift up on the front of the intake manifold cover (2).
  4. GM5432174

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

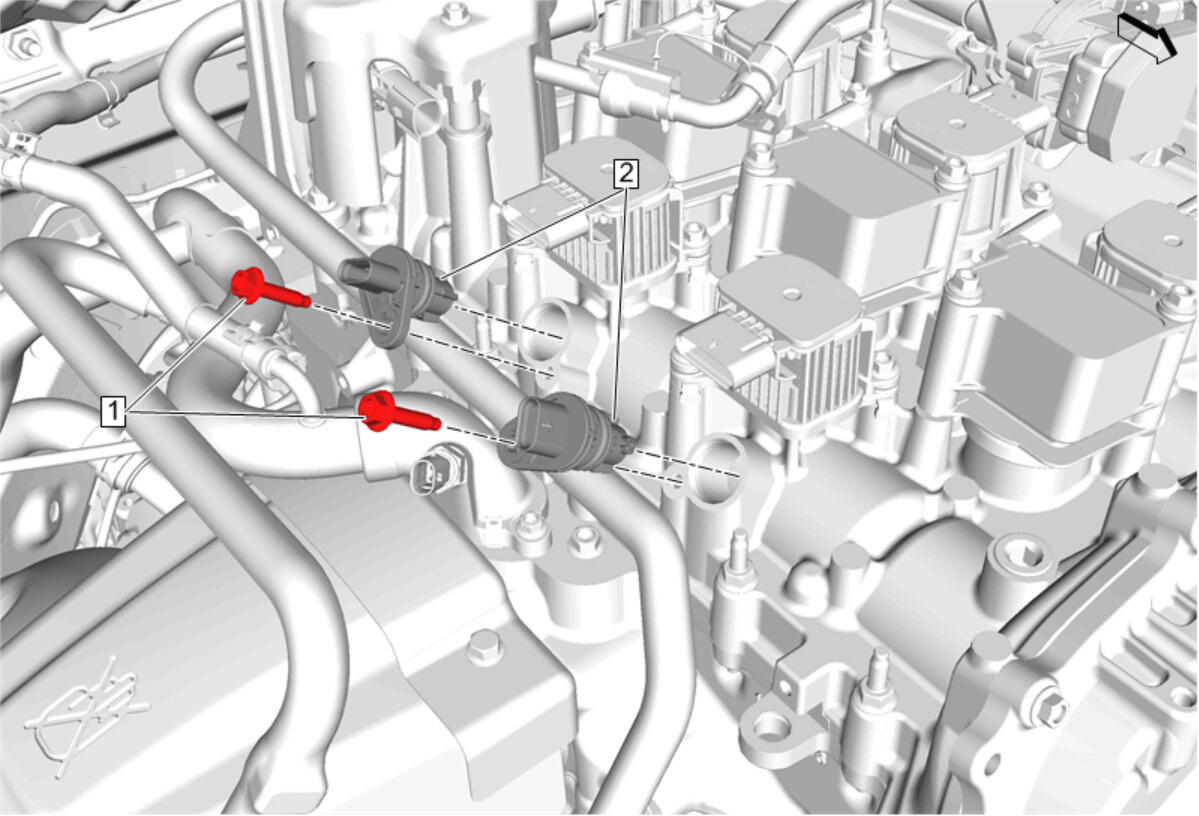

  5. GM5395526
    NOTE:

    Only replace the faulty camshaft exhaust lobe sensor.

    Disconnect the camshaft exhaust lobe sensor electrical connector.

  6. Camshaft Exhaust Lobe Sensor Bolt (1) - Remove
  7. Camshaft Exhaust Lobe Sensor (2) - Remove
