Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

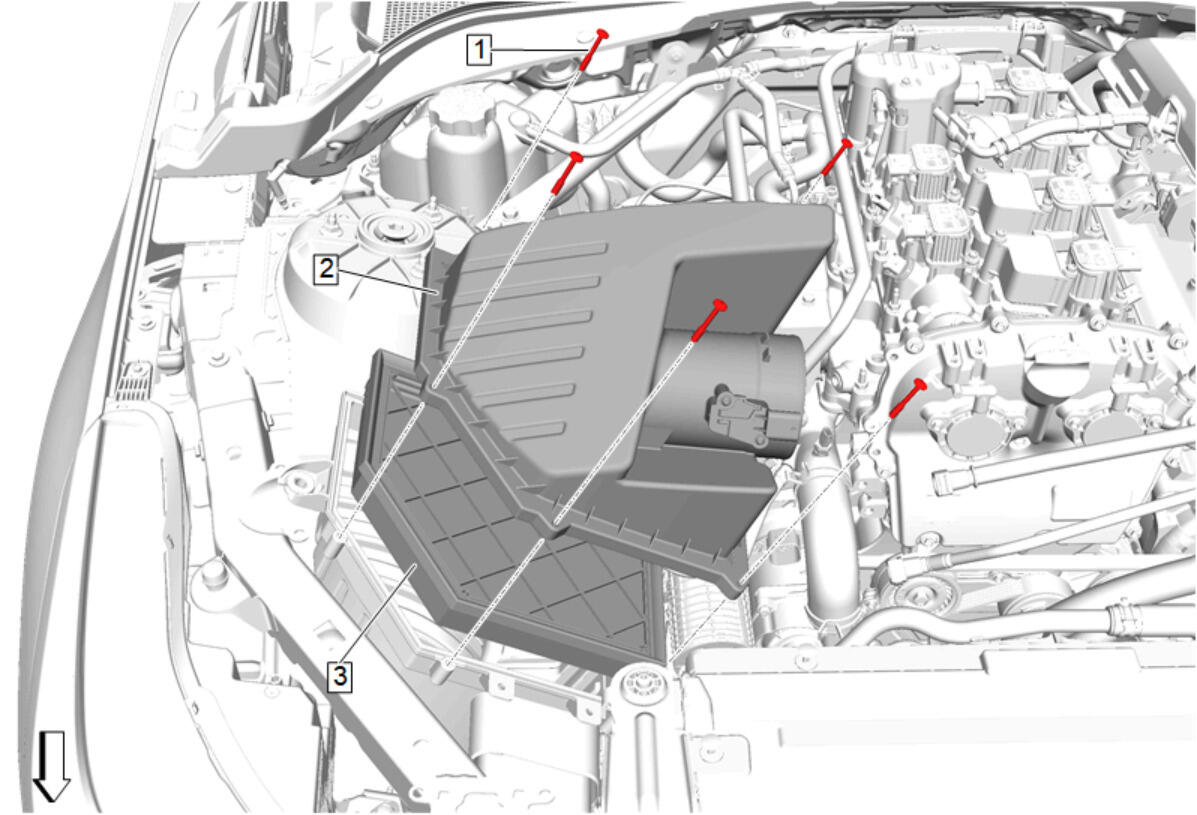

- Air Cleaner Element (3) - Install
- Air Cleaner Upper Housing (2) - Install
- Air Cleaner Upper Housing Bolt (1) - Install and tighten [5x] - Fastener Specifications
Connect the mass airflow sensor electrical connector.

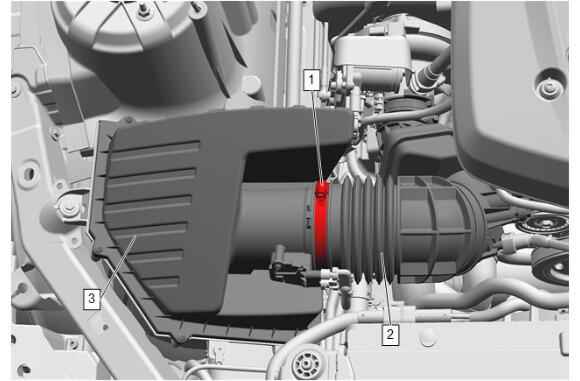

- Air Cleaner Outlet Duct (2) @ Air Cleaner Upper Housing (3) - Install
- Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] - Fastener Specifications
CAUTION:
Refer to Fastener Caution .
