Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5314509

    Retainer Spring (1) - Release

  2. Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Remove

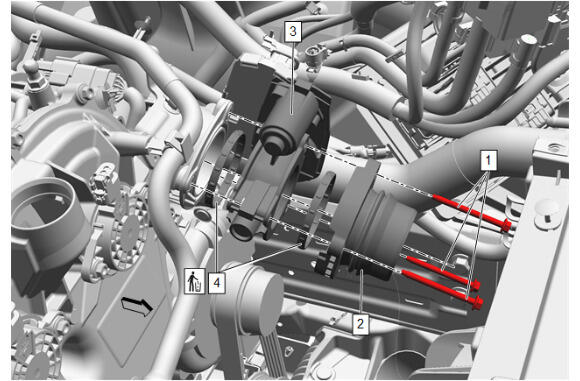

  3. GM5470183

    Disconnect the electrical connector.

  4. Throttle Body Bolt (1) - Remove [3x]
  5. Throttle Body Adapter (2) - Remove
  6. Throttle Body (3) - Remove
  7. Throttle Body Seal (4) - Remove and DISCARD [2x]
