Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

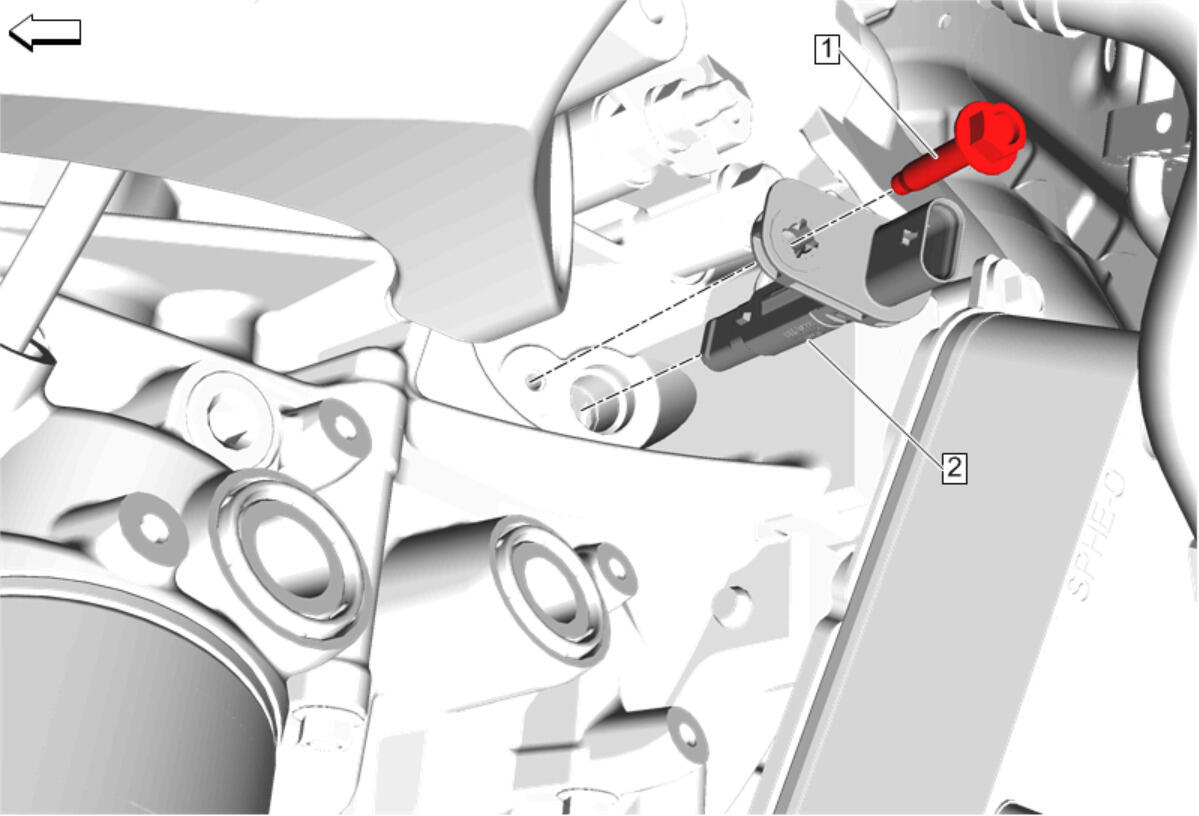

  1. GM5319643

    Crankshaft Position Sensor (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Crankshaft Position Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. Connect the crankshaft position sensor electrical connector.
  4. Remove the support and lower the vehicle.
  5. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
