Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil fill cap.
  2. GM5335087

    Lift up on the front of the intake manifold cover (1) as indicated.

  3. GM5335089

    Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Remove

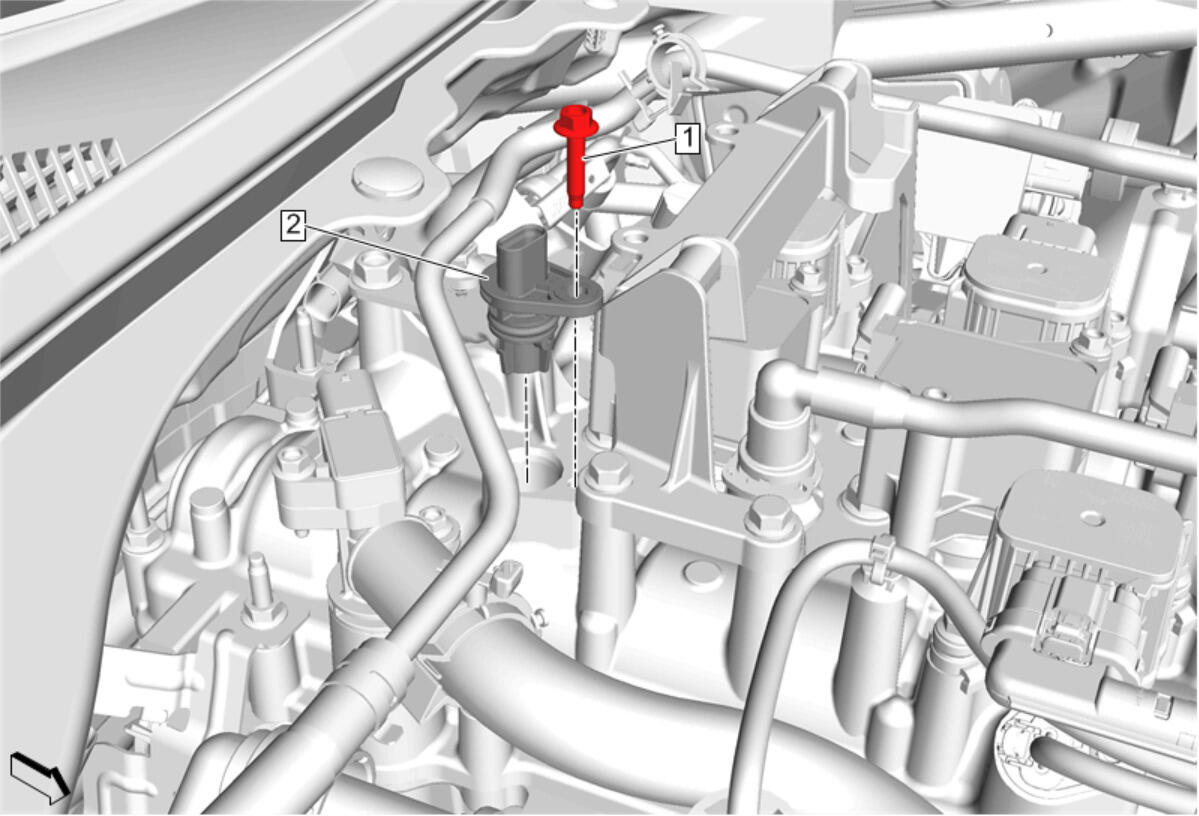

  4. GM5299752

    Disconnect the camshaft position sensor electrical connector.

  5. Camshaft Position Sensor Bolt (1) - Remove
  6. Camshaft Position Sensor (2) - Remove
