Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
  3. GM5867672
    NOTE:
    • Quantity of fasteners may vary based on option content.
    • Some components not shown for graphic clarity.

    Engine Front Splash Shield Retainer (2) - Remove

  4. Engine Front Splash Shield Bolt (1) - Remove [4x]
  5. Engine Front Splash Shield (3) - Remove

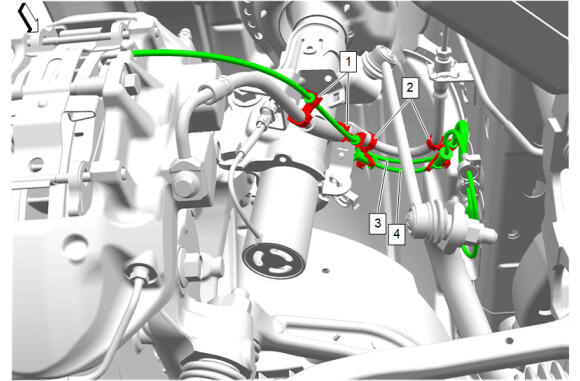

  6. GM5892389

    { If equipped } Wiring Harness Retainer (1) - Disengage [2x]

  7. Wiring Harness Retainer (2) - Disengage [2x]
  8. If equipped, remove the front disc brake pad wear sensor (4) at the 4 wiring harness retainers (1, 2).
  9. Remove the front wheel speed sensor (3) at the 2 wiring harness retainers (2).

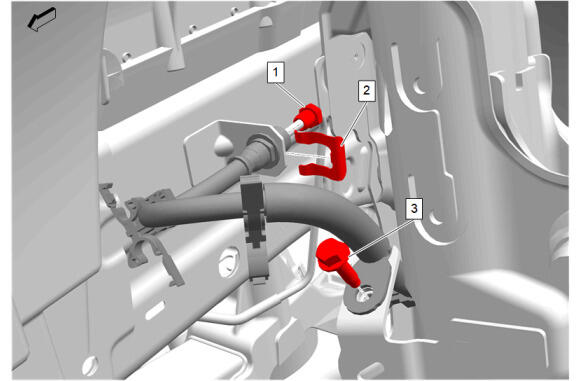

  10. GM5892390

    Front Brake Hose Fitting Bolt (3) - Remove

  11. Front Brake Pipe Nut (1) - Remove
  12. Front Brake Hose Retainer (2) - Remove
  13. Cap the front brake pipe outlet to prevent brake fluid loss and contamination.
  14. GM5875829

    Front Brake Hose Fitting (1) - Remove

  15. Front Brake Hose Washer (3) - Remove and DISCARD [2x]
  16. Front Brake Hose (2) @ Front Brake Caliper - Remove
  17. Plug the front brake caliper inlet to prevent brake fluid loss and contamination.

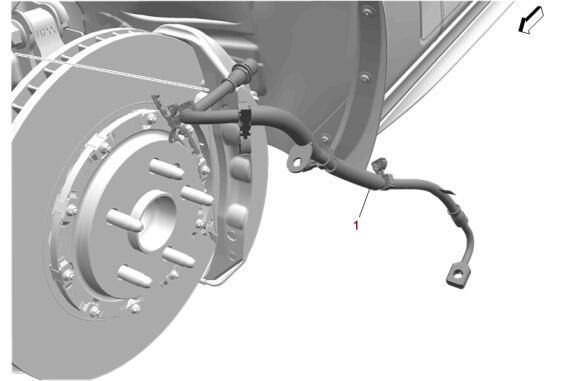

  18. GM5892391

    Front Brake Hose (1) - Remove
